Description

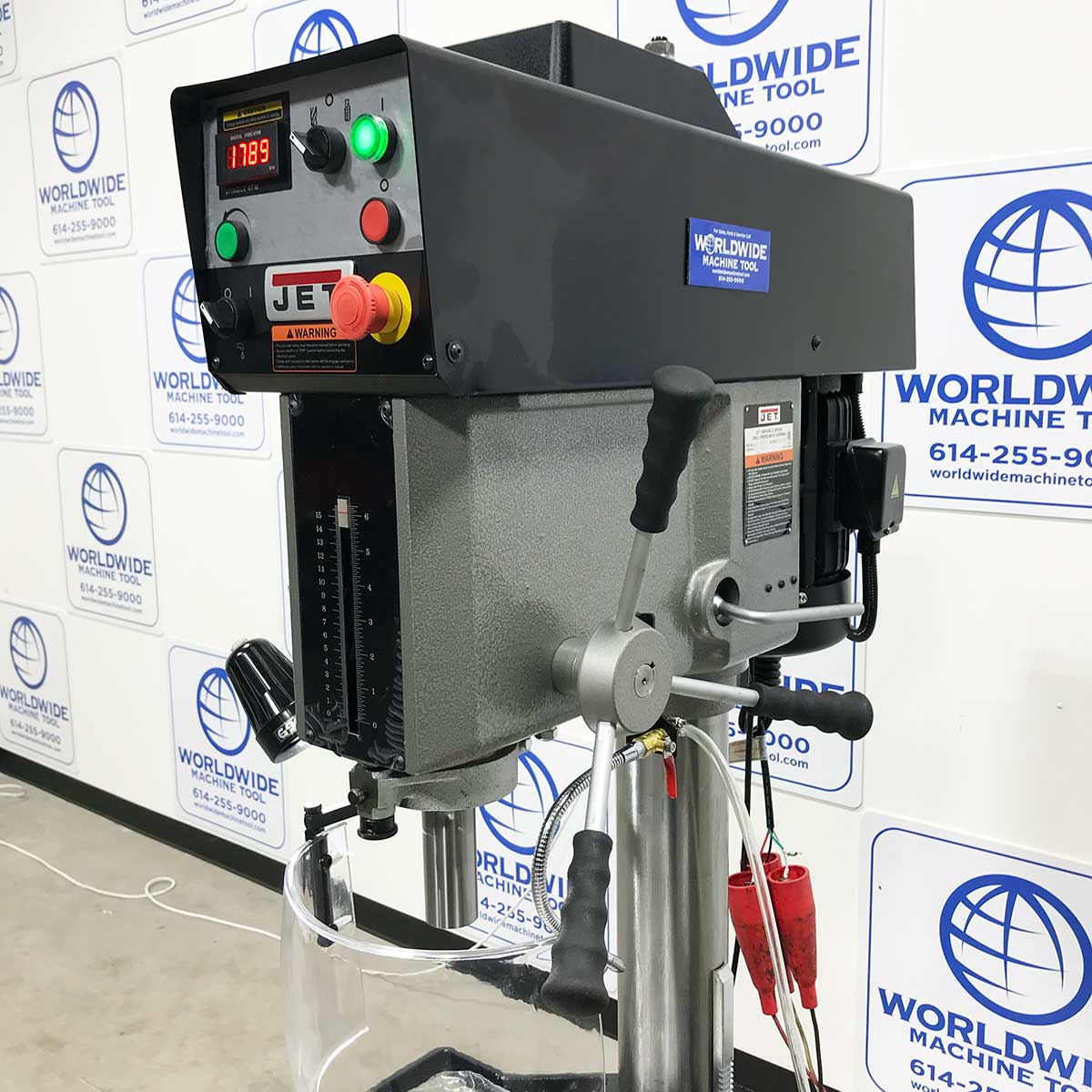

20″ New Jet 2 HP Drill Press Model JDP-20VST
Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles and tapping with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. CSA/CUS Certified.
Base Dimensions (In.) | 27 x 19 |
Column Diameter (In.) | 4-1/2 |
Drilling Capacity Cast Iron (In.) | 1-1/2 |
Drilling Capacity Mild Steel (In.) | 1-3/8 |
Drills to Center of Circle (In.) | 20 |
Motor (HP) | 2HP, 230V,3ph |
Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
Prewired Voltage (V.) | 230 |
Prop 65 | Cancer and Reproductive Harm |
Range of Spindle Speeds (RPM) | 150 – 2,000 |
Spindle Distance to Base (In.) | 44-1/2 |
Spindle Distance to Table (Max.) (In.) | 30-1/4 |
Spindle Taper (In. x TPI) | MT-3 |
Spindle Travel (In.) | 6 |
Style (Type) | Variable Speed |
Swing (In.) | 20 |
T-Slot Centers (In.) | 7-7/16 |
Table Size (L x W) (In.) | 22×18-3/4 |
Table Travel (In.) | 20 |
Tapping Capacity Cast Iron (In.) | 3/4 |
Tapping Capacity Mild Steel (In.) | 5/8 |
Weight (Lbs.) | 780 |
Work Table Weight Capacity (Lbs.) | 154 |
20″ New Jet 2 HP Drill Press Model JDP-20VST Optional Accessories
-
CSA Coolant System
-
Front Mounted LED Spindle RPM Readout
-
Front mounted positive control depth stop
-
Large Hand Grips designed with the users comfort in mind
-
Large precision ground T-Slot production table for easy set ups
-
Massive 3″ quill diameter
-
Table rotates 360° around the column
-
Drill Chuck not included
-
Tapping Capacity up to 3/4″ in Mild Steel
