Description

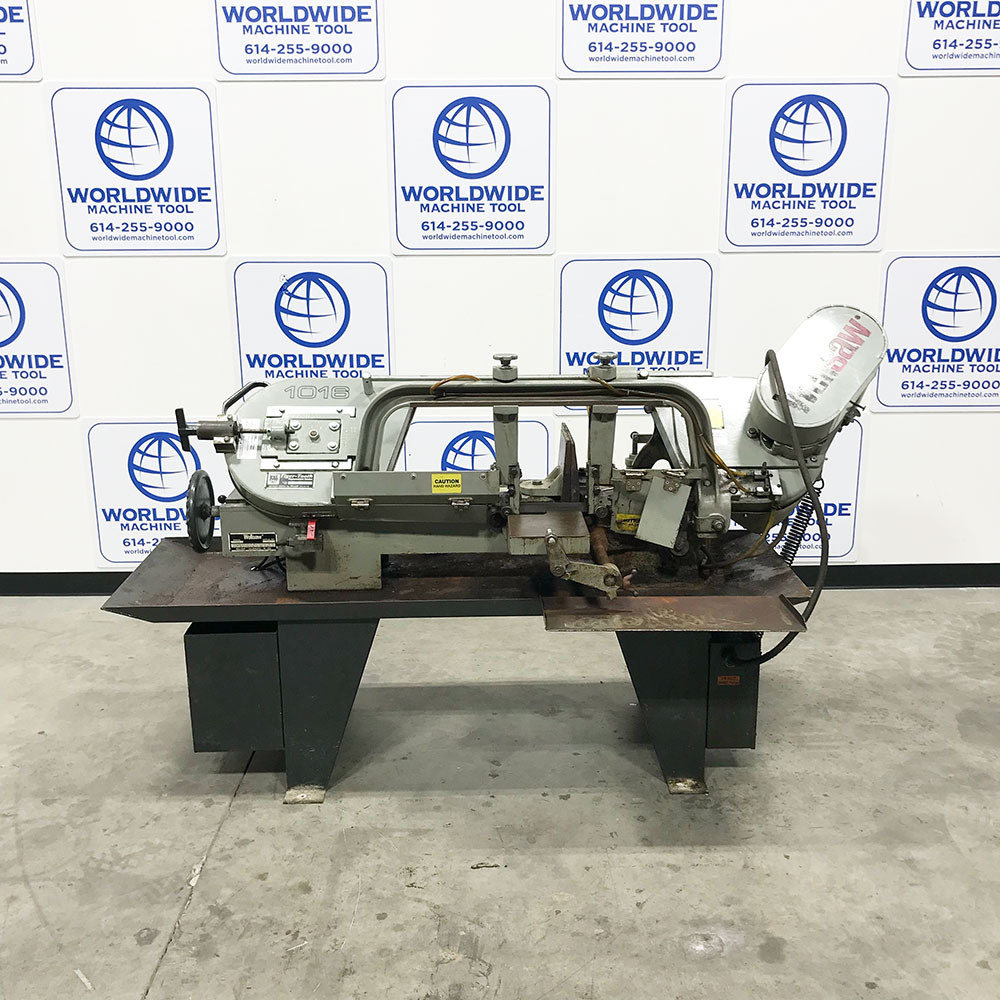

10″ x 16″ Used Wellsaw Horizontal Band Saw Model 1016 Specifications:
Maximum Cutting Capacity Round | 10-1/2″ |
Maximum Cutting Capacity @45˚Angle | 6″ x 6-1/2″ |
Maximum Cutting Capacity Flat | 16.5″ |
Maximum Cutting Capacity Rectangular | 10″ H x 16″ W |
Blade Guides | Carbide Guides with Rollers |
Blade Size (LxWxT) | 1″ x .035″ x 11’6″ (138″) |
Blade Tension | Manual Rite-Tension |
Blade Speeds | 50-100-175-275 SFPM |
Vise Control | Quick Acting/Manual Screw |
Motor Options | 2 HP-208-230-460/60/3 |
Coolant System | Tank Capacity 8 Gallons, Submersible Pump 115V/.6 Amp/170 GPH |
Feed Rate Control | Variable Hydraulic with Counterbalance spring |
Band Wheels | 15″ Diameter Cast Iron |
Swivel Vise | to 45 degrees |
Bed Height | 29″ |
Floor Area | 40″ W x 84″ L |
Shipping Weight | 900 lbs. |
10″ x 16″ Used Wellsaw Horizontal Band Saw Model 1016 Features:
- Spring-loaded carbide guides with rollers
- Combination reduction gearbox and perimeter ring gear blade drive
- 2hp Baldor Motor
- Four Blade Speeds
- Rite-Tension Band Tensioning Device
- Variable Hydraulic Downfeed Control
- Flood type Wet Cutting System
- 110 Volts at Controls
- Overload and Undervoltage Protection
- Precision Ground Bed
- Quick Acting Vise
- Positive Frame Lock
- Adjustable Stock Stop/back gauge
- Auto Shut-Off at End of Cut
