Description

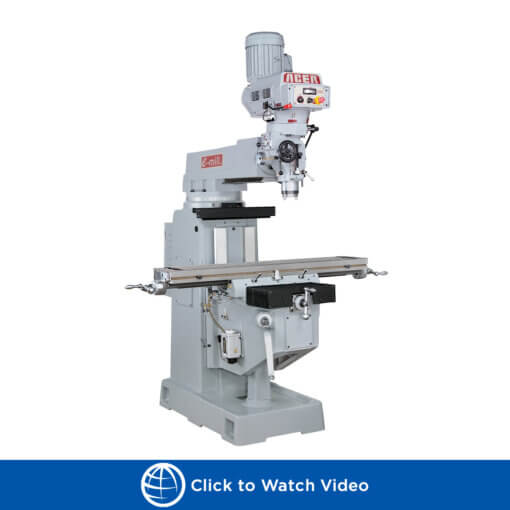

10″ x 50″ New Acer E-Mill 5-VK Vertical Milling Machine Specifications:
| Working Surface | 10″ x 50″ |
| Longitudinal Travel (X-axis) | 32 1/2″ |
| Cross Travel (Y-axis) | 17″ |
| Vertical Travel (Z axis) | 19″ |
| Ram Travel | 20″ |
| T-Slot Number, Size | 3, 5/8″ |
| Main Motor | 5 HP |
| Head Moves Right to Left | 90ª |
| Head Tilts Front to Back | N/A |
| Spindle Drive | Variable |
| Spindle Speed | 50 ~ 3,750 |
| Spindle Taper | NST #40 |
| Power Quill Feeds (In/Rev.) | 0.0015″ , 0.003″ , 0.006″ |
| Quill Diameter Chromed | 4″ |
| Quill Travel | 5″ |
| Net Weight | 3,500 Lbs |
10″ x 50″ New Acer E-Mill 5-VK Vertical Milling Machine Features:
- Fan cooling system dissipates heat efficiently.
- 3 HP spindle inverter motor.
- Hand scraped contact surface between ram and head.
- MEEHANITE casting.
- Top brand “FUJI” or equivalent A.C. frequency inverter drive.
- Turn-in the hand handle.
- Protective automotive paint ensures life-long appearance.
- Dish-in coolant base.
- 5 HP variable speed from 50 to 4,500 RPM.
- One piece quill pinion & shaft.
- 4″ quill diameter and NST #40 spindle.
- Precision hand scraped contact surfaces between turret and column.
- Square ways of Y & Z axes are hardened & ground. Table surface is HRC 52.
- All lead screws are ground finished.
- Chrome plated chip guards.
10″ x 50″ New Acer E-Mill 5-VK Vertical Milling Machine Optional Accessories:
| “NEWALL” 2-Axis DRO (16″ x 36″ travel, 0.0002″ Res. Scale) (Installation $400.00 | 2250.00 |
| Longitudinal/Cross/Knee Power Feed | 645.00/700.00/700.00 |
| “SERVO” Longitudinal Feed (M-9121-140 / M-9108-150X) | 1590.00 |
| “SERVO” Cross Feed (M-9521-140 / M-9521-150X) | 1815.00 |
| “SERVO” Knee Feed (M-9811-200) | 1815.00 |
| Installation Fee: Longitudinal Feed | $350.00 |
| Installation Fee: Cross Feed | 400.00 |
| Installation Fee: Knee Feed | 500.00 |
| 12″ Rotary Table (Vertical and Horizontal) | 935.00 |
| Coolant System (not installed) | 585.00 |
| Installation fee for Coolant System | 300.00 |
| Chip Pan (52″ X 35″ X 6″; 55 LBS) | 410.00 |
| Clamping Kit (52 pieces) | 175.00 |
| 6″ Angle Lock Milling Vise | 525.00 |
| Horizontal Milling Attachment | 1285.00 |
| “MAXI-TORQUE” RITE Power Draw Bar (Not Installed) & Safety Ring | 935.00 |
| Installation Fee for Auto-Air Power Draw Bar (not installed) & Safety Ring | 300.00 |
| Riser Block (4″) (Installation Fee-$400.00) | 610.00 |
| Riser Block (6″) (Installation Fee-$400.00) | 680.00 |
| Riser Block (8″) (Installation Fee-$400.00) | 705.00 |
| Halogen or LED-L 95 Work Light | 260.00 |
| 10″ x 54″ Table Upgrade | 450.00 |
| Upgrade Frequency Inverter 440V / 3-Phase | 530.00 |
| Upgrade to UL Conformity Electric Cabinet (special order) | 650.00 |
| Installation Fee for UL Conformity Electric Cabinet | 400.00 |
| Installation Fee on 3rd-Axis DRO on QUILL or KNEE | 450.00 |
| Upgrade to “NEWALL” 3-Axis DRO (3rd-Axis on QUILL or KNEE) | 750.00 |
