Description

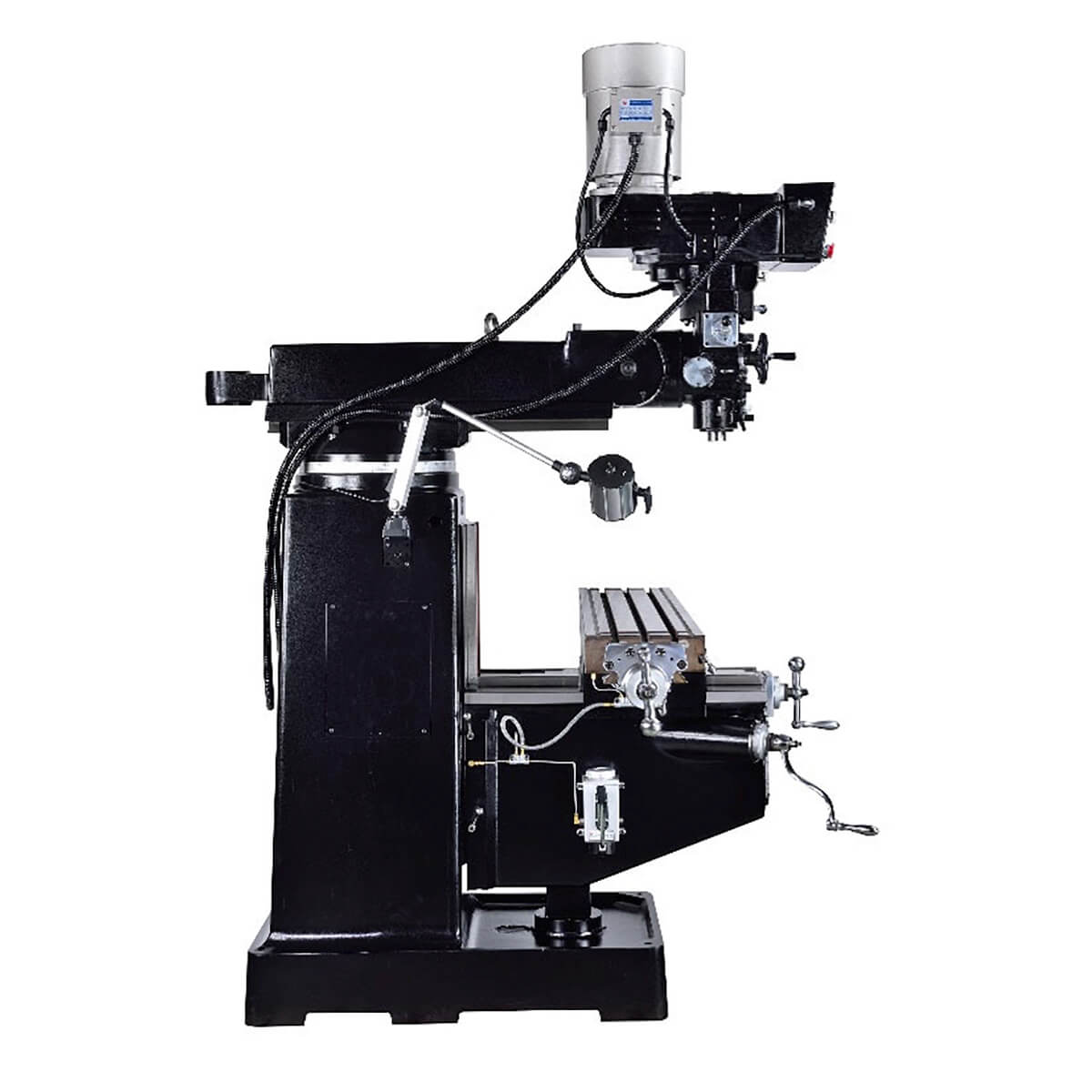

10″ x 54″ New Atrump Manual Knee EVS Head Mill Model KE3 Electronic Variable Speed Head.
The Atrump Machinery milling machine has served as a reliable milling machine for over 35 years. From one man job shops to large manufacturing plants, tool rooms, tool and die shops. The new KE3 Atrump knee mill for sale at Worldwide Machine Tool is an exceptional vertical milling machine for every shop. Every Atrump mill for sale is built on the Bridgeport milling machine platform. The KE3 Atrump vertical milling machine is built in Taiwan using high quality Meehanite castings. The Atrump milling machine is warehoused in our United States shipping facilities. Each Atrump vertical milling machine is built with Class 7 spindle bearings, hardened and ground ways with Turcite coatings.
Atrump Machinery builds each knee mill to last and stands behind each machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. . Search our site for Atrump mill reviews from happy owners that purchased a new high quality KE3 Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a base KE3 Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.
10″ x 54″ New Atrump Manual Knee Mill EVS Head Model KE3 Specifications:
| Table | 10″ x 54″ |
| X travel | 36″ |
| Y travel | 15.75″ |
| Z travel | 16″ |
| Quill travel | 5” |
| Quill diameter | 3.38” |
| Ram travel | 24″ |
| Spindle nose to table top | 1.96″ to 17.95″ |
| Table load capacity | 770 lbs |
| T-Slot (3) | 0.62″ x 2.55″ |
| Spindle taper | R8 / NT30 |
| Spindle speed | 70 to 5,000 rpm with Hi/Lo gear |
| Transmission spindle-motor | Timing belt |
| Head swivel (right/left) | ±90° |
| Head tilting angle (up/down) | ±45° |
| Spindle motor/Max power | 3HP |
| Coolant pump | 1/8 HP |
| Lubrication pump | One shot |
| Floor plan | 110″ x 100″ x 90″ |
| Net weight | 3,080 lbs |
| Power requirement | 4 KVA 3 Phase 208V to 230V (Max) |
| Type of oil for oil way | Mobil Vectra #2 |
| Air requirement | With optional power draw bar 75-100 psi |
Features:
- Meehanite castings mainframe with annealed relieved for long term reliability.
- Box Way designs on Y axis
- X Y Z hardened & ground with Turcite-B coating guide way
- Electronic Vari-Speed Head 3HP spindle motor, R8 spindle taper
- Digital output 70-5,000rpm spindle speed with Hi/Lo gears
- Precision APEC class 7 spindle bearing to ensure spindle run out within 0.0002inch
- C7 double nut precision acme lead screws for high accuracy and long lasting
- Chip rubber cover (front & rear)
- Built in LED work light
- One shot lubrication system
- Easy tap function
Standard Accessories:
- Electronic variable speed head

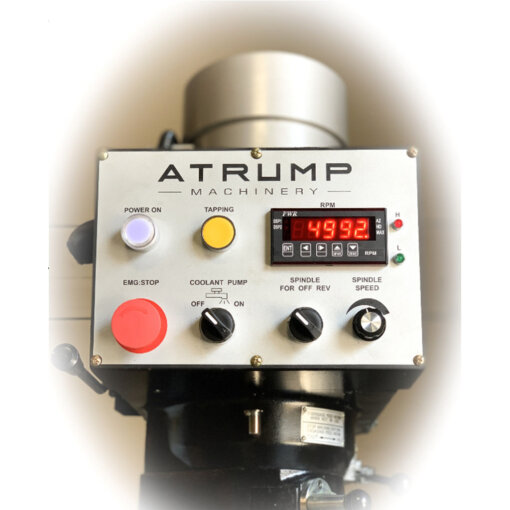

- Huge digital spindle speed display
- EMG button for safety
- Control panel
- LED work light
- Way cover
- Easy tap function
- One shoot lubrication
- Two power outlets (110V)
- Operation manual
- Tools & tool box
10″ x 54″ New Atrump Manual Knee Mill EVS Head Model KE3 Optional Accessories:
| PDB-MAX Power Draw Bar-Maxi-Torque installed | $1,250 |
| AL-500SX Power Feed X-axis for ALIGN installed | $900 |
| AL-500SY Power Feed Y-axis for ALIGN installed | $960 |
| AL-500SZ Power Feed Z-axis for ALIGN installed | $960 |
| TC-2-1050 DRO System X & Y Axis (SINO) | $1,250 |
| C80-2-1050 DRO System X & Y Axis (NEWALL DP-700) installed | $3,000 |
| C80-3-1050 DRO System X & Y & Quill Axis (NEWALL DP-700) installed | $3,780 |
| C80-3-K DRO System X & Y & Knee Axis (NEWALL DP-700) installed | $3,780 |
| COOL Coolant System | $350 |
| CPKV Chip Pan | $295 |
| ALUB Auto Lubrication | $340 |
| RAA-R8 Right Angle Head (R8) | $715 |
| RAA-30 Right Angle Head (#30 tapper) | $880 |
| RS6 Riser block 6” installed | $900 |
| RS8 Riser block 8” installed | $955 |
| PH-CON Phase Converter 3 phase to single phase | $515 |
| CK-101 52pcs Clamping Kit | $130 |
| COL-R8-11 Collet R8 set -11 pcs | $140 |
| R8-APU-16 R8 Keyless Drill Chuck (1/8″~ 5/8″) | $180 |
| VISE-6-TW 6″ Angle Vise W/ Swivel Base | $520 |
| NT30-TOOL6 NT30 Tool Holder set (6 pcs.) 3/8, 1/2, 5/8, 3/4, 1″, and Keyless drill chuck (6 pieces) | $450 |
| NT30ER32-10 NT30 ER32 Collet Set (10pcs.) 1/8,1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, +NT30 ER32 chuck*1 + Wrench*1 | $300 |
| NT30ER40-17 NT30 ER40 Collet Set (17pcs.) 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1″+ NT30 ER40 chuck*1 + Wrench*1 |
$450 |
| VISE-6-TW 6″ Angle Vise W/ Swivel Base | $520 |
