Description

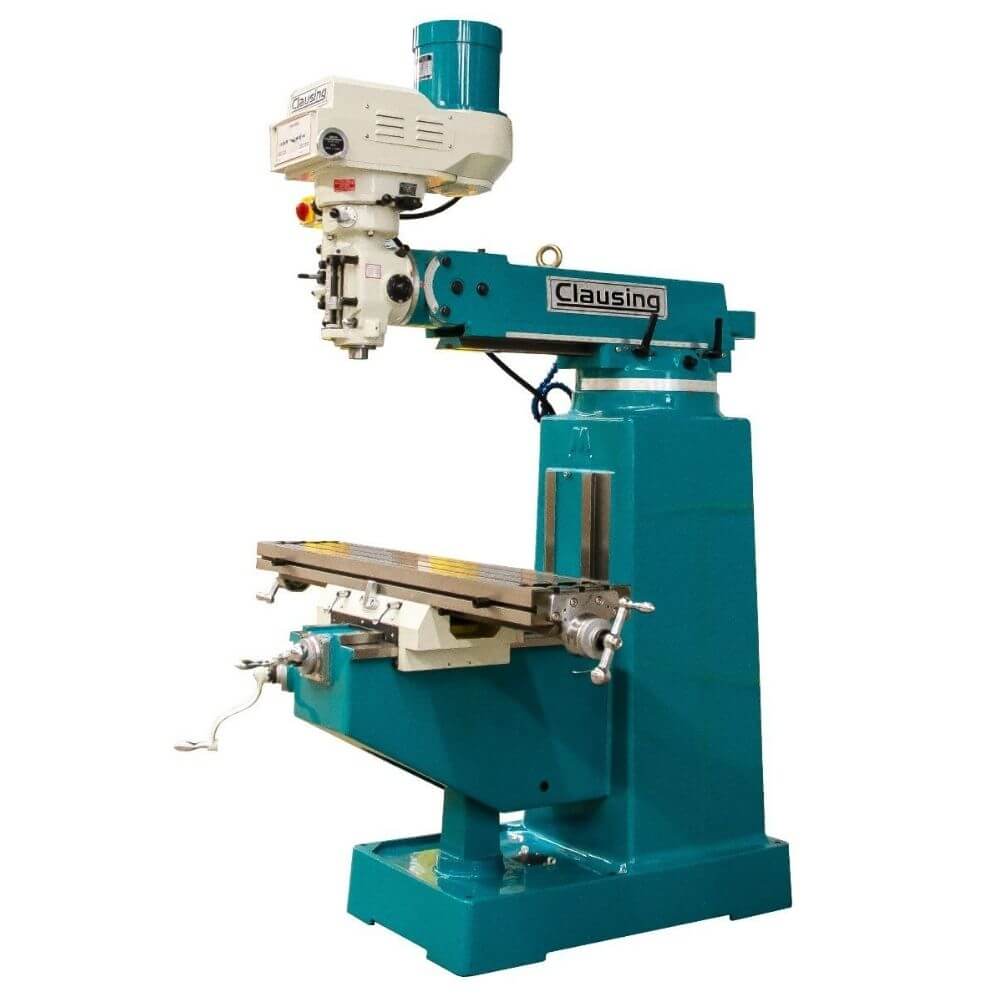

10″ x 54″ New Clausing Knee Mill Model 3EVS08 Specifications:
Table & Ways | |
Table size | 10″ x 54″ |
No. of T-slots | 3 |
T-slot width | 5/8″ |
T-slot center distance | 2.48″ |
Table ways | Dovetail |
Knee ways | Square |
Column ways | Dovetail |
Travels | |
X longitudinal | 39.56″ |
Y cross | 15.55″ |
Z knee | 15.55″ |
Ram | 22.04″ |
Motors & Spindle | |
Spindle motor R8 & 30 / 40 taper | 3 Hp/5 Hp Amp. Draw 208v: 7 Amp. Draw 230v: 7 Amp. Draw 460v: 5 |
Variable spindle speed rpm | Low range: 75-780 High range: 515-4350 |
Main spindle taper | R8 or NMTB30 or NMTB40 |
Spindle travel | 5″ |
Quill feed (in/rev.) | 0.0015/0.0031/0.006 |
Quill diameter | 3.38″ |
Construction & Weight | |
Column turret diameter | 14.96″ |
Knee width | 11.42″ |
Column bearing length | 17.91″ |
Saddle/table bearing length | 20.28″ |
Ram/turret bearing length | 17.32″ |
Ram length | 41.73″ |
Table load | 880 lbs. |
Net weight | 2,985 lbs. |
Height | 88″ |
Depth | 71″ |
Width | 76″ |
Table to spindle | 3.94″ – 19.01″ |
45º inward | 1.57″ – 16.53″ |
Spindle ǿ to column | 9.45″ – 29.92″ |
45º outward | 12.20″ – 27.16″ |
Head tilt | 90º right & left |
10″ x 54″ New Clausing Knee Mill Model 3EVS08 Standard Equipment:
- Meehanite castings for superior rigidity and wear resistance
- Hardened & ground, X, Y & Z ways
- X/Y ways coated with Turcite B
- Column & knee ways covers
- T-slots are ground to provide reference edge for positioning your workplace
- Hardened & ground table surface
- Hardened & ground spindle
- Chromed & ground quill
- Chromed X, Y, & Z leadscrews
- Double nut leadscrew for backlash compensation
- ABEC 7/CP4 spindle bearings
- Coolant system w/pump & switch
- Flexible segmented coolant nozzle
- Chromed Y screw covers and one-piece wipers
- 7/16”-20 Imperial drawbar R8, or 1/2”-20 Imperial drawbar NMTB30, 5/8″-11 Imperial drawbar NMTB40
- 3 Hp AC motor, 40 taper is 5 Hp AC motor
- Variable speed drive
- Articulating head for compound angles
- Worm gear angular positioning of head in two directions
- Lever-operated manual rapid quill movement
- Handwheel for fine quill feed
- Adjustable automatic feed disengagement for quill feed
- Micrometer depth stop
- Reversing switch for clockwise or counter clockwise operation
- R8 or NMTB 30 or NMTB 40 spindle
- Spindle brake (hand operated)
- One-shot lubrication
- Leveling bolts and pads
- Tool kit, test and accuracy chart
- Operations manual/parts list
- 3VS series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
- 3EVS series standard 230 volt 3 phase (other voltages require a transformer or special order)
10″ x 54″ New Clausing Knee Mill Model 3EVS08 Optional Accessories:
R8 Spindle Accessories Only | |
2VS020 R8 Milling Chuck Kit w/7 Collets | $710.00 |
3VS030P Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,220.00 |
3VS031P R8 Rt. Angle Attachment (cannot use with power drawbar option) | $770.00 |
Z384-SET-1 R8 Metric Set 2mm by 1mm, 19 Collets | $365.00 |
Z384-SET-5 R8 Inch Collet Set 1/8 to 7/8 by 32nds, 25 Collets | $1,030.00 |
Z384-SET-6 R8 Inch Collet Set 1/8 to 7/8 by 1/16ths, 13 Collets | $275.00 |
Z384-SET-7 R8 Inch Collet Set 1/8 to ¾ by 1/8ths, 6 Collets | $150.00 |
FV-9031G R8 to J2 Arbor for FV-9030G | $170.00 |
FV-9033G R8 to J6 Arbor for FV-9032G | $170.00 |
FV-9041G 12pc. R8 Collet Rack | $45.00 |
FV9050G ½” R8 Shell Mill Holder | $100.00 |
FV-9051G ¾” R8 Shell Mill Holder | $100.00 |
FV-9052G 1” R8 Shell Mill Holder | $100.00 |
FV-9080G R8 End Mill Adapter Set 3/16-1 ¼ (8 pcs.) | $320.00 |
2VS8408 Air Power Draw Bar R8 (US MFG) (installed) | $1,300.00 |
NMTB30 Spindle Accessories Only | |
2VS021 NMTB30 Milling Chuck Kit w/7 Collets | $710.00 |
3VS030AP NMTB30 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,220.00 |
3VS031AP NMTB30 Rt. Angle Attachment (cannot use with power drawbar option) | $770.00 |
FV-9081G NMTB30 End Mill Adapter Set 3/16 – 1 (7 pcs) | $740.00 |
2VS8430 Air Power Draw Bar NMTB30 (US MFG) (installed) | $1,300.00 |
NMTB40 Spindle Accessories Only | |
2VS022 NMTB40 Milling Chuck Kit w/7 Collets | $710.00 |
4VS030BP NMTB40 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,380.00 |
4VS031BP NMTB40 Rt. Angle Attachment (cannot use with power drawbar option) | $965.00 |
4VSQ40A Power Draw Bar – Auto 4VSQ (Taiwan) | $1,505.00 |
2VS8440 Air Power Draw Bar (US MFG) (installed) | $1,365.00 |
All Accessories | |
3VS001P Chip Tray | $665.00 |
3VS-RSG Rear Splash Guard Sides of Column | $1,240.00 |
2VS002 Full Electrics w/Disconnect Box & CNTL Box (factory) | $1,055.00 |
2VS002F Full Electrics w/Disconnect Box & CNL Box (field or stock machines) | $1,505.00 |
2VS002A Central 110v Wiring Point w/6 Plugs & 8’ Power Cord | $265.00 |
2VS010 52 Piece Clamping Kit | $195.00 |
2VS020A ¼” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020B 5/16” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020C 3/8” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020D ½” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020E 5/8” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020F ¾” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020G 1” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS040P 4” Riser Block | $605.00 |
2VS041P 6” Riser Block | $690.00 |
2VS042P 8” Riser Block | $760.00 |
3VS045 X,Y Ball Screws In Lieu of Lead Screws (factory installed) | $2,265.00 |
3VS045F X,Y Ball Screws I/O Lead Screws (field or stock install) | $3,860.00 |
2VS050 Auto Lube Pump 110V | $370.00 |
2VSX150 X-Axis Servo Feed (USA MFG) | $1,415.00 |
2VSXA X-Axis Align Power Feed (Taiwan) | $1,040.00 |
2VSY150 Y Axis Servo Feed (USA MFG) (cannot be used with ballscrew option) | $1,740.00 |
2VSYA Y Axis Align Power (Taiwan) (cannot be used with ballscrew option) | $1,075.00 |
2VSK140 Knee Servo Feed (USA MFG) | $1,580.00 |
2VSKA Knee Align Power (Taiwan) | $1,075.00 |
FV-9010G Kurt 6” Vise Only | $775.00 |
FV-9011G Kurt 6” Swivel Base for FV-9010G | $525.00 |
FV-9012G Vise Step Key Kit 11/16 x 5/8 (set of 2) | $105.00 |
FV-9030G ½” Keyless Drill Chuck | $230.00 |
FV-9032G 1/8” to 5/8” Keyless Drill Chuck | $240.00 |
FV-9070L LED Work Light w/3Pin 110V Plug | $265.00 |
CS-9062 Coolant Mist System 1 Gal | $1,020.00 |
3VS-CE CE Electrics w/ Spindle Guard (factory order) | $1,245.00 |
3VS-CSA CSA Electrics Canadian Specifications (non-certified) | $560.00 |
3VS-BRKM Braking Motor In Lieu of Standard Motor (factory inst) | $370.00 |
3VS-5HP 5Hp motor in lieu of 3Hp (factory installed 3VS series) | $140.00 |
3VS-5HPF 5Hp Motor in Lieu of 3Hp (field or stock 3VS series) | $1,000.00 |
3EVS-5HP 5Hp motor in lieu of 3Hp (factory installed 3EVS series) | $710.00 |
3EVS-5HPF 5Hp Motor in Lieu of 3Hp (field or stock 3EVS series) | $3,680.00 |
DRO Kits | |
AR16-40-100M 3VS 2 Axis 10” x 54” TBL Acu-Rite 100 DRO (installed) | $2,050.00 |
AR16-40-200M 3VS 2 Axis 10”x 54” TBL Acu-Rite 200 DRO (installed) | $2,395.00 |
AR16-40-300M 3VS 2 Axis 10” x 54” TBL Acu-Rite 300 DRO (installed) | $2,795.00 |
AR4-16-40-200M 3VS 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 200 DRO (installed) | $3,045.00 |
AR4-16-40-300M 3VS 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 300 DRO (installed) | $3,445.00 |
AR16-40-16200M 3VS 3 Axis w/Knee 10”x 54” TBL Acu-Rite 200 DRO (installed) | $3,240.00 |
AR16-40-16300M 3VS 3 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) | $3,640.00 |
AR4-16-40-16300M 3VS 4 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) | $4,315.00 |
NW16-40-DP700 3VS 2 Axis 10”x 54” TBL Newall DRO (installed) | $2,365.00 |
NW6-16-40-DP700 3VS 3 Axis w/Spindle 10”x 54” TBL Newall DRO (installed) | $3,140.00 |
NW16-16-40-DP700 3VS 3 Axis w/Knee 10”x 54” TBL Newall DRO (installed) | $3,140.00 |
FG16-40-PKMC 3VS 2 Axis 10”x 54” TBL Fagor DRO 40i (installed) | $2,795.00 |
FG16-40-PKM 3VS 2 Axis 10”x 54” TBL Fagor LED DRO 20i (installed) | $2,395.00 |
FG06-16-40-PKMC 3VS 3 Axis w/Spindle 10”x 54” TBL Fagor DRO 40i (installed) | $3,445.00 |
FG06-16-40-PKM 3VS 3 Axis w/Spdl 10”x 54” TBL Fagor LED DRO 30i (installed) | $3,045.00 |
FG16-16-40-PKMC 3VS 3 Axis w/Knee 10”x 54” TBL Fagor DRO 40i (installed) | $3,640.00 |
FG16-16-40-PKM 3VS 3 Axis w/Knee 10”x 54” TBL Fagor LED DRO 30i (installed) | $3,240.00 |
