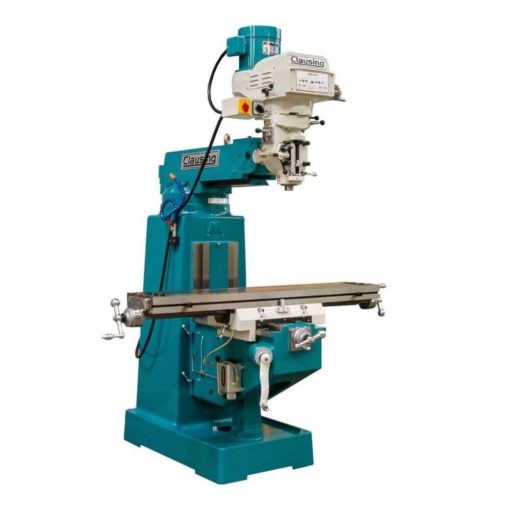

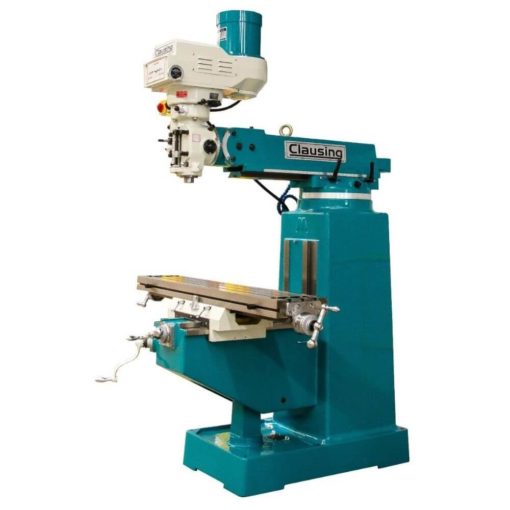

10″ x 54″ New Clausing Knee Mill Model 3VS08/1

Price On Request
F.O.B. Factory
Terms: Check with order

Options

DRO Kits

Description

10″ x 54″ New Clausing Knee Mill Model 3VS08/1 Specifications:

Table & Ways
Table size 10″ x 54″
No. of T-slots 3
T-slot width 5/8″
T-slot center distance 2.48″
Table ways Dovetail
Knee ways Square
Column ways Dovetail
Travels
X longitudinal 39.56″
Y cross 15.55″
Z knee 15.55″
Ram 22.04″
Motors & Spindle
Spindle motor R8 & 30 / 40 taper 3 Hp/5 Hp
Amp. Draw 208v: 7
Amp. Draw 230v: 7
Amp. Draw 460v: 5
Variable spindle speed rpm Low range: 75-780
High range: 515-4350
Main spindle taper R8 or NMTB30 or NMTB40
Spindle travel 5″
Quill feed (in/rev.) 0.0015/0.0031/0.006
Quill diameter 3.38″
Construction & Weight
Column turret diameter 14.96″
Knee width 11.42″
Column bearing length 17.91″
Saddle/table bearing length 20.28″
Ram/turret bearing length 17.32″
Ram length 41.73″
Table load 880 lbs.
Net weight 2,985 lbs.
Height 88″
Depth 71″
Width 76″
Table to spindle  3.94″ – 19.01″
45º inward 1.57″ – 16.53″
Spindle ǿ to column 9.45″ – 29.92″
45º outward 12.20″ – 27.16″
Head tilt 90º right & left



10″ x 54″ New Clausing Knee Mill Model 3VS08/1 Standard Equipment:

  • Meehanite castings for superior rigidity and wear resistance
  • Hardened & ground, X, Y & Z ways
  • X/Y ways coated with Turcite B
  • Column & knee ways covers
  • T-slots are ground to provide reference edge for positioning your workplace
  • Hardened & ground table surface
  • Hardened & ground spindle
  • Chromed & ground quill
  • Chromed X, Y, & Z leadscrews
  • Double nut leadscrew for backlash compensation
  • ABEC 7/CP4 spindle bearings
  • Coolant system w/pump & switch
  • Flexible segmented coolant nozzle
  • Chromed Y screw covers and one-piece wipers
  • 7/16”-20 Imperial drawbar R8, or 1/2”-20 Imperial drawbar NMTB30, 5/8″-11 Imperial drawbar NMTB40
  • 3 Hp AC motor, 40 taper is 5 Hp AC motor
  • Variable speed drive
  • Articulating head for compound angles
  • Worm gear angular positioning of head in two directions
  • Lever-operated manual rapid quill movement
  • Handwheel for fine quill feed
  • Adjustable automatic feed disengagement for quill feed
  • Micrometer depth stop
  • Reversing switch for clockwise or counter clockwise operation
  • R8 or NMTB 30 or NMTB 40 spindle
  • Spindle brake (hand operated)
  • One-shot lubrication
  • Leveling bolts and pads
  • Tool kit, test and accuracy chart
  • Operations manual/parts list
  • 3VS series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
  • 3EVS series standard 230 volt 3 phase (other voltages require a transformer or special order)



10″ x 54″ New Clausing Knee Mill Model 3VS08/1 Optional Accessories:

R8 Spindle Accessories Only
2VS020  R8 Milling Chuck Kit w/7 Collets $690.00
3VS030P  Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) $930.00
3VS031P  R8 Rt. Angle Attachment (cannot use with power drawbar option) $610.00
Z384-SET-1  R8 Metric Set 2mm by 1mm, 19 Collets $365.00
Z384-SET-5  R8 Inch Collet Set 1/8 to 7/8 by 32nds, 25 Collets $1,030.00
Z384-SET-6  R8 Inch Collet Set 1/8 to 7/8 by 1/16ths, 13 Collets $275.00
Z384-SET-7  R8 Inch Collet Set 1/8 to ¾ by 1/8ths, 6 Collets $150.00
FV-9031G  R8 to J2 Arbor for FV-9030G $170.00
FV-9033G  R8 to J6 Arbor for FV-9032G $170.00
FV-9041G  12pc. R8 Collet Rack $60.00
FV9050G  ½” R8 Shell Mill Holder $100.00
FV-9051G  ¾” R8 Shell Mill Holder $150.00
FV-9052G  1” R8 Shell Mill Holder $100.00
FV-9080G  R8 End Mill Adapter Set 3/16-1 ¼ (8 pcs.) $320.00
2VS8408  Air Power Draw Bar R8 (US MFG) (installed) $1,485.00
NMTB30 Spindle Accessories Only
2VS021  NMTB30 Milling Chuck Kit w/7 Collets $690.00
3VS030AP  NMTB30 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) $930.00
3VS031AP  NMTB30 Rt. Angle Attachment (cannot use with power drawbar option) $610.00
FV-9081G  NMTB30 End Mill Adapter Set 3/16 – 1 (7 pcs) $740.00
2VS8430  Air Power Draw Bar NMTB30 (US MFG) (installed) $1,485.00
NMTB40 Spindle Accessories Only
2VS022  NMTB40 Milling Chuck Kit w/7 Collets $690.00
4VS030BP  NMTB40 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) $1,050.00
4VS031BP  NMTB40 Rt. Angle Attachment (cannot use with power drawbar option) $700.00
4VSQ40A  Power Draw Bar – Auto 4VSQ (Taiwan) $1,140.00
2VS8440  Air Power Draw Bar (US MFG) (installed) $1,565.00
All Accessories
3VS001P  Chip Tray $570.00
3VS-RSG  Rear Splash Guard Sides of Column $1,975.00
2VS002  Full Electrics w/Disconnect Box & CNTL Box (factory) $980.00
2VS002F  Full Electrics w/Disconnect Box & CNL Box (field or stock machines) $1,485.00
2VS002A  Central 110v Wiring Point w/6 Plugs & 8’ Power Cord $265.00
2VS010  52 Piece Clamping Kit $195.00
2VS020A  ¼” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020B  5/16” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020C  3/8” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020D  ½” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020E  5/8” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020F  ¾” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS020G  1” Milling Chuck Collet Only (2VS020, 21, 22) $50.00
2VS040P  4” Riser Block $695.00
2VS041P  6” Riser Block $725.00
2VS042P  8” Riser Block $775.00
3VS045  X,Y Ball Screws In Lieu of Lead Screws (factory installed) $1,845.00
3VS045F  X,Y Ball Screws I/O Lead Screws (field or stock install) $3,360.00
2VS050  Auto Lube Pump 110V $295.00
2VSX150  X-Axis Servo Feed (USA MFG) $1,415.00
2VSXA  X-Axis Align Power Feed (Taiwan) $880.00
2VSY150  Y Axis Servo Feed (USA MFG) (cannot be used with ballscrew option) $1,740.00
2VSYA  Y Axis Align Power (Taiwan) (cannot be used with ballscrew option) $900.00
2VSK140  Knee Servo Feed (USA MFG) $1,580.00
2VSKA  Knee Align Power (Taiwan) $900.00
FV-9010G  Kurt 6” Vise Only $1,025.00
FV-9011G  Kurt 6” Swivel Base for FV-9010G $730.00
FV-9012G  Vise Step Key Kit 11/16 x 5/8 (set of 2) $95.00
FV-9030G  ½” Keyless Drill Chuck $230.00
FV-9032G  1/8” to 5/8” Keyless Drill Chuck $240.00
FV-9070L  LED Work Light w/3Pin 110V Plug $215.00
CS-9062  Coolant Mist System 1 Gal $1,020.00
3VS-CE  CE Electrics w/ Spindle Guard (factory order) $1,055.00
3VS-CSA  CSA Electrics Canadian Specifications (non-certified) $695.00
3VS-BRKM  Braking Motor In Lieu of Standard Motor (factory inst) $465.00
3VS-5HP  5Hp motor in lieu of 3Hp (factory installed 3VS series) $230.00
3VS-5HPF  5Hp Motor in Lieu of 3Hp (field or stock 3VS series) $1,065.00
3EVS-5HP  5Hp motor in lieu of 3Hp (factory installed 3EVS series) $685.00
3EVS-5HPF  5Hp Motor in Lieu of 3Hp (field or stock 3EVS series) $3,555.00
DRO Kits
AR16-40-100M  3VS 2 Axis 10” x 54” TBL Acu-Rite 100 DRO (installed) $2,300.00
AR16-40-200M  3VS 2 Axis 10”x 54” TBL Acu-Rite 200 DRO (installed) $2,810.00
AR16-40-300M  3VS 2 Axis 10” x 54” TBL Acu-Rite 300 DRO (installed) $3,280.00
AR4-16-40-200M  3VS 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 200 DRO (installed) $3,525.00
AR4-16-40-300M  3VS 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 300 DRO (installed) $4,000.00
AR16-40-16200M  3VS 3 Axis w/Knee 10”x 54” TBL Acu-Rite 200 DRO (installed) $3,930.00
AR16-40-16300M  3VS 3 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) $4,400.00
AR4-16-40-16300M  3VS 4 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) $5,125.00
NW16-40-NMS800  3VS 2 Axis 10”x 54” TBL Newall DRO (installed) $2,825.00
NW6-16-40-NMS800  3VS 3 Axis w/Spindle 10”x 54” TBL Newall DRO (installed) $3,755.00
NW16-16-40-NMS800  3VS 3 Axis w/Knee 10”x 54” TBL Newall DRO (installed) $3,930.00
FG16-40-PKMC  3VS 2 Axis 10”x 54” TBL Fagor DRO 40i (installed) $2,810.00
FG16-40-PKM  3VS 2 Axis 10”x 54” TBL Fagor LED DRO 20i (installed) $2,450.00
FG06-16-40-PKMC  3VS 3 Axis w/Spindle 10”x 54” TBL Fagor DRO 40i (installed) $3,525.00
FG06-16-40-PKM  3VS 3 Axis w/Spdl 10”x 54” TBL Fagor LED DRO 30i (installed) $3,240.00
FG16-16-40-PKMC  3VS 3 Axis w/Knee 10”x 54” TBL Fagor DRO 40i (installed) $3,930.00
FG16-16-40-PKM  3VS 3 Axis w/Knee 10”x 54” TBL Fagor LED DRO 30i (installed) $3,600.00
