Description

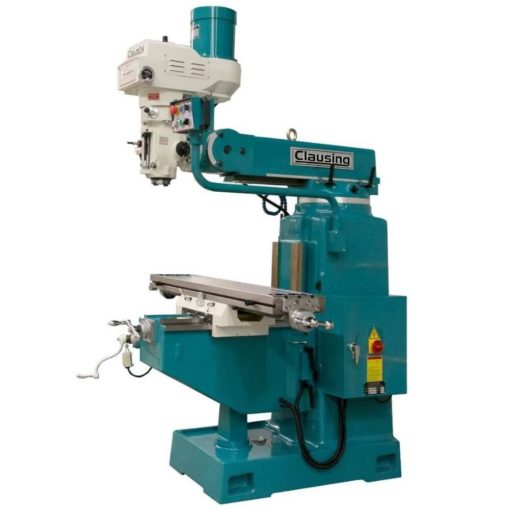

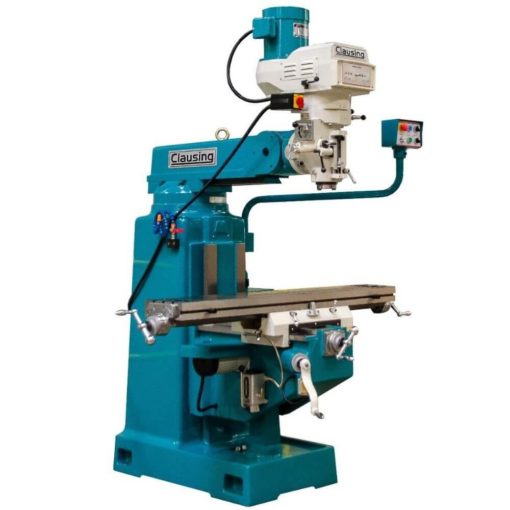

10″ x 54″ New Clausing Knee Mill Model 4VSQ40 Specifications:
Table & Ways | |
Table size | 10″ x 54″ |
No. of T-slots | 3 |
T-slot width | 5/8″ |
T-slot center distance | 2.48″ |
Table ways | Dovetail |
Knee ways | Square |
Column ways | Square |
Travels | |
X longitudinal | 41.33″ |
Y cross | 15.35″ |
Knee | 13.97″ |
Ram | 21.85″ |
Motors & Spindle | |
Spindle motor | 5 Hp Amp. Draw 208v: 7 Amp. Draw 230v: 7 Amp. Draw 460v: 5 |
Variable spindle speed rpm | Low range: 75-780 High range: 515-4350 |
Main spindle taper | NMTB40 |
Spindle travel | 5″ |
Quill feed (in/rev.) | 0.0015/0.0031/0.006 |
Quill diameter | 4.13″ |
Construction & Weight | |
Column turret diameter | 15.35″ |
Knee width | 13.39″ |
Column bearing length | 16.93″ |
Saddle/table bearing length | 20.28″ |
Ram/turret bearing length | 17.13″ |
Ram length | 33.46″ |
Table load | 1,100 lbs. |
Net weight | 3,210 lbs. |
Height | 89″ |
Depth | 106″ |
Width | 78″ |
Table to spindle | 4.52″ – 18.50″ |
45º inward | 0 – 18.89″ |
Spindle ǿ to column | 7.28″ – 29.13″ |
45º outward | 7.48″ – 29.33″ |
Head tilt | 90º right & left |
10″ x 54″ New Clausing Knee Mill Model 4VSQ40 Standard Equipment:
- Meehanite castings for superior rigidity and wear resistance
- Hardened & ground, X, Y & Z ways
- X/Y ways coated with Turcite B
- Column & knee ways covers
- T-slots are ground to provide reference edge for positioning your workplace
- Hardened & ground table surface
- Hardened & ground spindle
- Chromed & ground quill
- Chromed X, Y, & Z leadscrews
- Double nut leadscrews for backlash compensation
- ABEC 7/CP4 spindle bearings
- Coolant system w/pump & switch
- Flexible segmented coolant nozzle
- Chromed Y screw covers and one-piece wipers
- 5/8″-11 drawbar w/ NMTB40 spindle
- 5 Hp AC motor
- AC rapid vertical drive (knee)
- Variable speed drive
- Articulating head for compound angles
- Worm gear angular positioning of head in two directions
- Lever-operated manual rapid quill movement
- Handwheel for fine quill feed
- Adjustable automatic feed disengagement for quill feed in both directions
- Micrometer depth stop
- Reversing switch for clockwise or counter clockwise operation
- Full electrics w/ disconnect switch
- NMTB40 spindle
- Spindle brake (hand operated)
- One-shot lubrication
- Leveling bolts and pads
- Tool kit, test and accuracy chart
- Operations manual/parts list
- 4VSQ series standard 208/230 or 460 3 phase (other voltages require a transformer or special order)
- 4EVSQ series standard 230 volt 3 phase (other voltages require a transformer or special order)
10″ x 54″ New Clausing Knee Mill Model 4VSQ40 Optional Accessories:
NMTB40 Spindle Accessories | |
3VS001P Chip Tray | $665.00 |
4VS030BP NMTB40 Horiz. Milling Attachment 3pc. Set (cannot use with power drawbar option) | $1,380.00 |
4VS031BP NMTB40 Rt. Angle Attachment (cannot use with power drawbar option) | $965.00 |
4VSQ40A Power Drawbar – Auto 4VSQ (Taiwan) | $1,505.00 |
2VS8440 Air Power Drawbar (US MFG) (installed) | $1,365.00 |
2VS002A Central 110v Wiring Point w/6 Plugs & 8’ Power Cord | $265.00 |
4VSQ-CE CE Electrics w/Spindle Guard (factory order) | $1,245.00 |
4VSQ-CSA CSA Electrics Canadian Specifications (non-certified) | $560.00 |
2VS010 52 Piece Clamping Kit | $195.00 |
2VS022 NMTB40 Milling Chuck Kit w/7 Collets | $710.00 |
2VS020A ¼” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020B 5/16” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020C 3/8” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020D ½” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020E 5/8” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020F ¾” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS020G 1” Milling Chuck Collet Only (2VS020, 21, 22) | $50.00 |
2VS040P 4” Riser Block | $605.00 |
2VS041P 6” Riser Block | $690.00 |
2VS042P 8” Riser Block | $760.00 |
4VSQ045 X,Y Ball Screws I/Of Lead Screws (factory installed) | $2,265.00 |
4VSQ045F X,Y Ball Screws (stock or field install) | $3,860.00 |
2VS050 Auto Lube Pump 110V | $370.00 |
2VSX150 X-Axis Servo Feed (USA MFG) | $1,415.00 |
2VSXA X-Axis Align Power Feed (Taiwan) | $1,040.00 |
2VSY150 Y Axis Servo Feed (USA MFG) (cannot be used with ballscrew option) | $1,740.00 |
2VSYA Y Axis Align Power Feed (Taiwan) (cannot be used with ballscrew option) | $1,075.00 |
FV-9010G Kurt 6” Vise Only | $775.00 |
FV-9011G Kurt 6” Swivel Base for FV-9010G | $525.00 |
FV-9012G Vise Step Key Kit 11/16 x 5/8 (set of 2) | $105.00 |
FV-9030G ½” Keyless Drill Chuck | $230.00 |
FV-9032G 1/8” to 5/8” Keyless Drill Chuck | $240.00 |
FV-9070L LED Work Light w/3Pin 110V Plug | $265.00 |
CS-9062 Coolant Mist System | $1,020.00 |
4VS-BRKM Spindle Braking Motor In Lieu of Standard Motor (4VSQ only) | $370.00 |
DRO Kits | |
AR16-40-100M 2 Axis 10” x 54” TBL Acu-Rite 100 DRO (installed) | $2,050.00 |
AR16-40-200M 2 Axis 10”x 54” TBL Acu-Rite 200 DRO (installed) | $2,395.00 |
AR16-40-300M 2 Axis 10” x 54” TBL Acu-Rite 300 DRO (installed) | $2,795.00 |
AR4-16-40-200M 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 200 DRO (installed) | $3,045.00 |
AR4-16-40-300M 3 Axis w/Spindle 10”x 54” TBL Acu-Rite 300 DRO (installed) | $3,445.00 |
AR16-40-16-200M 3 Axis w/Knee 10”x 54” TBL Acu-Rite 200 DRO (installed) | $3,240.00 |
AR16-40-16-300M 3 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) | $3,640.00 |
AR4-16-40-16300M 4 Axis w/Knee 10”x 54” TBL Acu-Rite 300 DRO (installed) | $4,315.00 |
NW16-40-DP700 2 Axis 10”x 54” TBL Newall DRO (installed) | $2,365.00 |
NW6-16-40-DP700 3 Axis w/Spindle 10”x 54” TBL Newall DRO (installed) | $3,140.00 |
NW16-16-40-DP700 3 Axis w/Knee 10”x 54” TBL Newall DRO (installed) | $3,140.00 |
FG16-44-PKMC 2 Axis 10”x 54” TBL Fagor DRO 40i (installed) | $2,795.00 |
FG16-44-PKM 2 Axis 10”x 54” TBL Fagor LED DRO 20i (installed) | $2,395.00 |
FG06-16-44-PKMC 3 Axis w/Spindle 10”x 54” TBL Fagor DRO 40i (installed) | $3,445.00 |
FG06-16-44-PKM 3 Axis w/Spdl 10”x 54” TBL Fagor LED DRO 30i (installed) | $3,045.00 |
FG16-16-44-PKMC 3 Axis w/Knee 10”x 54” TBL Fagor DRO 40i (installed) | $3,640.00 |
FG16-16-44-PKM 3 Axis w/Knee 10”x 54” TBL Fagor LED DRO 30i (installed) | $3,240.00 |
