Description
This toolroom lathe is ideal for small parts especially for those that requires threading. It offers very high precision (0.000050” TIR) and fast turn around time for machining tiny parts.

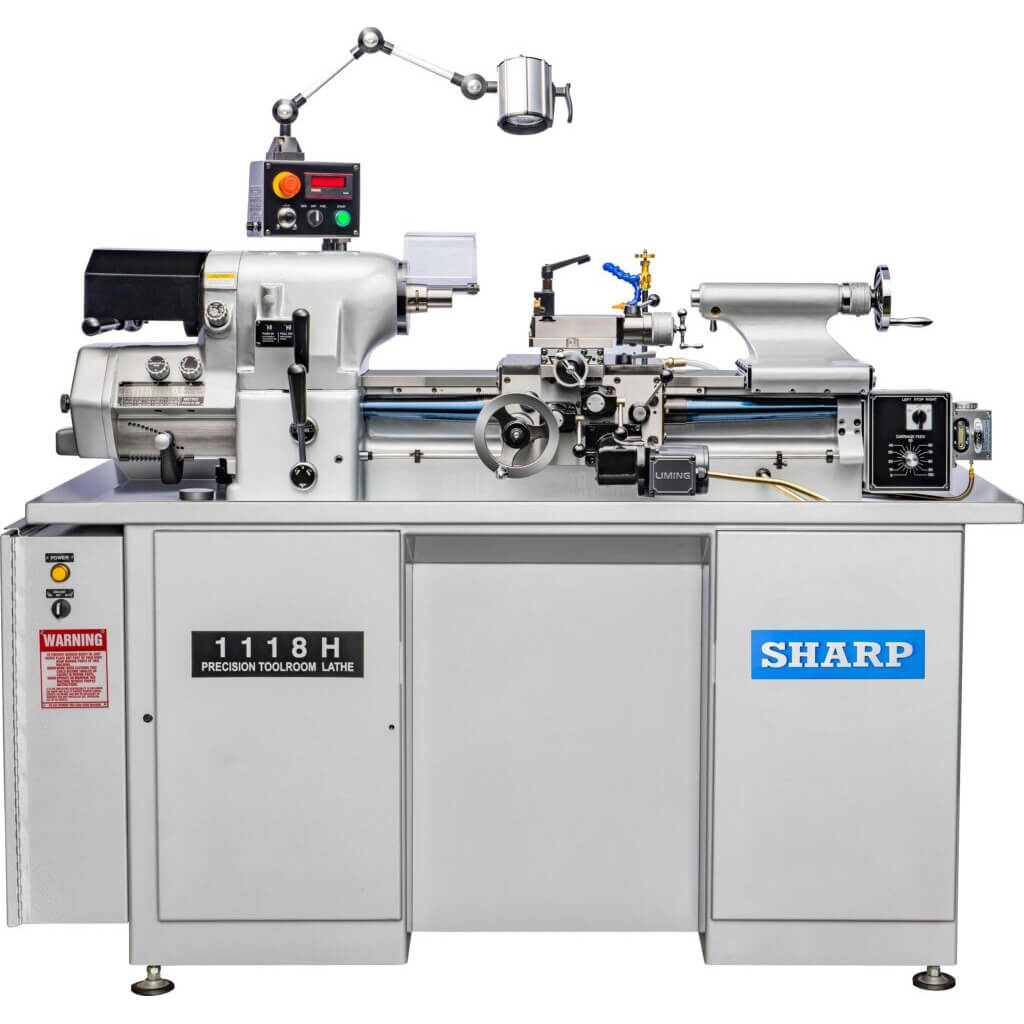

11″ x 18″ New Sharp Lathe Precision Toolroom Model 1118H Specifications:
| CAPACITY | |
| Swing Over Bed | 11″ |
| Swing Over Carriage | 9″ |
| Swing Over Cross Slide | 6″ |
| Distance Between Centers | 18″ |
| SPINDLE | |
| With Round 5C Collets | 11/16″ |
| With Hexagon 5C Collets | 7/8″ |
| With Square 5C Collets | 3/4″ |
| With Expanding Chucks | 3″ |
| With Step Chucks | 1-1/16 – 6″ |
| With Jaw Chucks | 5″ |
| Spindle Speed Range (infinitely variable) | 130 – 4,000 rpm |
| Spindle Nose Taper (inside) | 5C (10°) |
| Spindle Nose Taper (outside) | 4° |
| Spindle Bore | 1″ |
| TRAVEL & FEED RANGE | |
| Cross Slide Travel | 6″ |
| Compound Slide Travel | 3″ |
| Quick Action Compound Slide Travel | 0.1″ |
| Carriage Slide Power Feed Range | 5/16 – 7″ |
| Cross Slide Power Feed Range | 5/16 – 4″ |
| THREADING | |
| Leadscrew Pitch, Diameter | 8 tpi, 1″ |
| Inch Threads (36) | 11 – 108 |
| Metric Threads (36) | 0.275 – 2.7 |
| TAILSTOCK | |
| Tailstock Spindle Diameter | 1.358″ |
| Tailstock Spindle Taper | MT #2 |
| Tailstock Spindle Travel | 3.75″ |
| GENERAL | |
| Electricity Required | 220V, 3 phase or single phase *440V requires additional transformer |
| Main Motor | 5 HP (digital variable speed |
| Coolant Pump Motor | 0.25 HP |
| Feed Motor (DC) | 75 watt, 110 volt |
| Coolant Tank | 5 gallon |
| Dimensions (w x d x h) | 73″ x 30″ x 75″ |
| Net Weight (approx.) | 2,300 lbs |
| TOTAL POWER CONSUMPTIONS | |
| 220V | 6KVA/20 amps |
| 440V | 6KVA/10 amps |
11″ x 18″ New Sharp Lathe Precision Toolroom Model 1118H Features:
- Digital variable speed (DVS) drive system
- High speed spindle (infinitely variable 130-4,000 rpm), accuracy within 50 millionths TIR
- Hardened and ground spindle
- Independent electric feed rate control on carriage and cross slide
- Quick change inch/metric gearbox with 36 changes
- Spindle supported by double angular contact bearings
- Quick action compound slide for threading
- One piece alloy steel material, hardened and ground bedways, with turcite coating on carriage and bed for smooth movements
- Adjustable thread length control stops
- Hardened and ground leadscrews
Standard Accessories:
- Splash guard
- Coolant system
- 5C collet closer
- 5C collet holder (2)
- Chuck guard
- Spindle nose cover
- Leadscrew cover
- American tool post
- Drive dog
- Drive gear
- Adjustable tool setting gauges
- Halogen work light
- Drive plate
- Headstock center
- Tailstock
- Wired 220V, single phase/3ph (440V requires optional transformer)
- Tool box
Optional Accessories:
| 866-0600 3-jaw 6″ chuck with 6″ fixture plate (Bison) | $2,060.00 |
| 850-0600 4-jaw 6″ chuck with 6″ fixture plate (Bison) | $2,150.00 |
| 868-0600 6-jaw 6″ chuck with 6″ fixture plate (Bison) | $2,450.00 |
| TLE-008 3-jaw 6″ chuck with fixture plate (QU) | $1,500.00 |
| TLE-009 4-jaw 6″ chuck with fixture plate (QU) | $1,000.00 |
| TLE-024 6-jaw 6″ chuck with fixture plate (QU) | $2,135.00 |
| 440T5-V1 380V, 440V, 575V transformer – 5HP | $1,100.00 |
| ACC-5C 5C collet set (1/8″ to 1-1/16″ by 1/16″) 16 pcs | $340.00 |
| FACE-7 7″ face plate | $360.00 |
| AXA-2511-7050 Quick change tool holder set (Aloris) 7 pcs | $1,730.00 |
| TLE-001 Vertical cut-off slide | $1,360.00 |
| TLE-003 Taper attachment | $2,160.00 |
| TLE-006 Steady rest | $625.00 |
| TLE-007 Follow rest | $545.00 |
| TLE-013 Micrometer cartridge stop with bracket | $650.00 |
| DT 20189 Dorian tool-MT #2 Morse taper, 1.89″ head diameter live center | $395.00 |
| DT 20201 Dorian tool-MT #2 Morse taper, 2.01″ head diameter live center | $670.00 |
| 1118H-D/A Drill chuck & arbor (JACOBS) | $360.00 |
| 1118H-UL UL electrical components and CE on AC motor | $800.00 |
| T-SS-1 Solid stop for collet | $80.00 |
| T-ES-1 Ejector stop | $105.00 |
| T-LS-1 Long stop | $145.00 |
| T-UCS-25 Universal collet stop | $190.00 |
Digital Readout Systems:
| FG-1118 Fagor 20i DRO | $3,110.00 (installed) |
| FG-40i-1118 Fagor 40i DRO | $3,995.00 (installed) |
| AR-1118 Acu-Rite 203S DRO | $3,820.00 (installed) |
| NWDP-1118 Newall DP700 DRO | $3,275.00 (installed) |
