Description
From the digital speed control to the calibrated gravity fed tilt-table, The “Journeyman 1220” sets the standard for versatility.
The saw comes standard with variable speed control, tilt-table, “Adjusto-Blok®” blade guides, blade guard, chip-clearing funnel, chip blower, and angle plate–making this a perfect precision-cutting machine for tool & die, R&D, and model shops.
12″ New Roll-In Vertical Band Saw Model JM1220 Journeyman Specifications:
| Feed system | Gravity feed |
| Blade travel | 11″ (Table travels, not the blade) |
| Cutting capacity at 90º | Round: 12″ Rectangle: 20″ x 12″ |
| Miter cut angle range | 0º-45º (material and/or table can be rotated to 45º when cutting to get desired miter and/or beveled cutting angle) |
| Bevel cut angle range | 0º-45º (material and/or table can be rotated to 45º when cutting to get desired miter and/or beveled cutting angle) |
| Capacity under guides | 12″ |
| Throat | 20″ |
| Blade size (ships with saw) | 3/4″ width x 12′ 10″ length 0.035 thick (bi-metal) |
| Blade size (accepted widths) | 1/4″, 3/8″, 1/2″ , 5/8″ and 3/4″ (Adjusto-Bloke® works for each blade width) |
| Blade speeds | 70-500 sfpm (digital speed control) |
| Table | Tilting precision ground steel table: 24″ x 24″ |
| Table height | 40″ from floor |
| Motor | 2 HP 220/440V, 60-cycle, three-phase |
| Saw dimensions | 46″ width x 30″ length x 80″ height |
| Shipping dimensions | 48″ width x 38″ length x 86″ height |
| Shipping weight | 1,000 lbs F.O.B. Cleveland, Ohio |
12″ New Roll-In Vertical Band Saw Model JM1220 Journeyman Features:

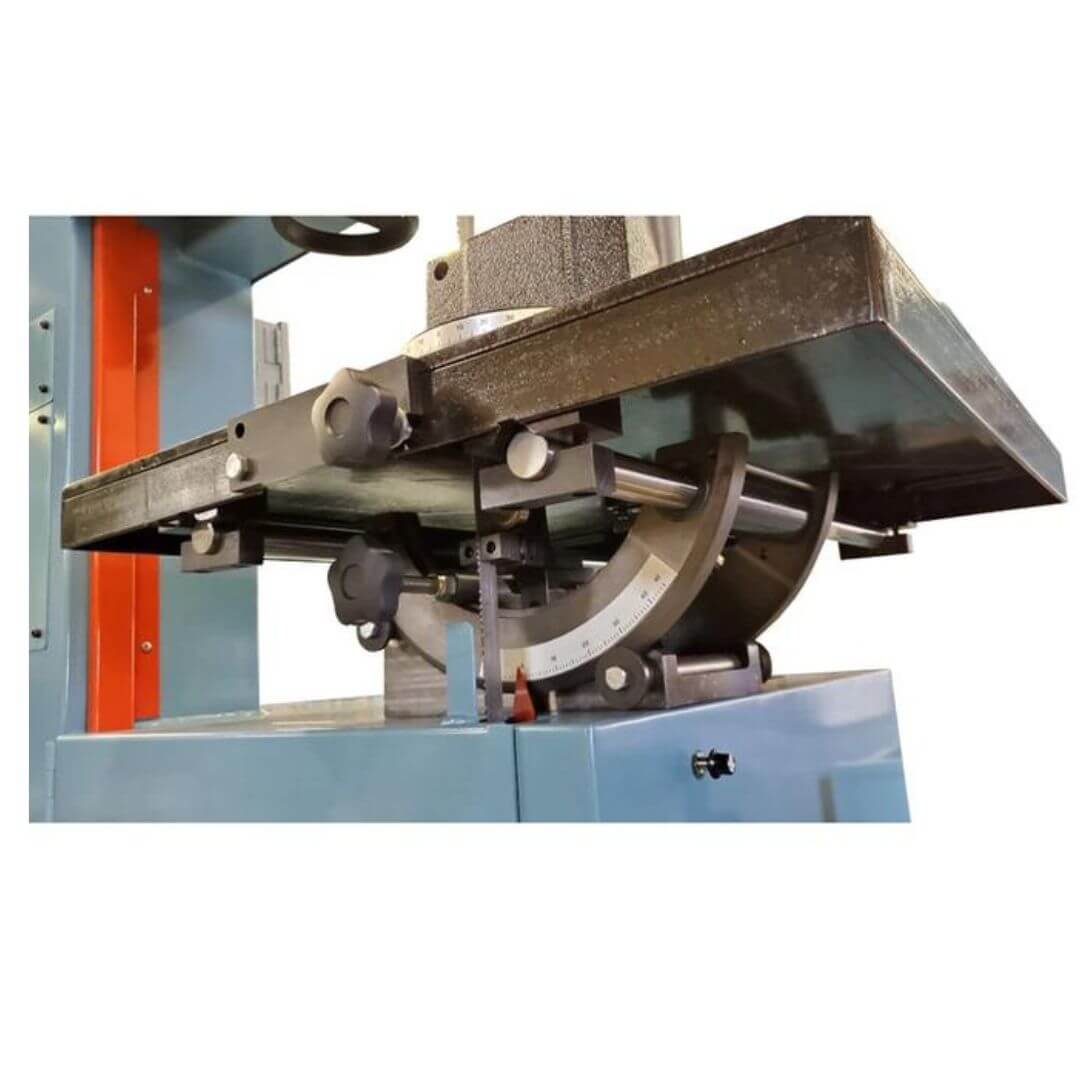

- The multifaceted Journeyman Tilt Table allows users to easily make contour, profile, rip, and complex angle cuts
- Quickly make specialty cuts with the easily adjustable table that tilts up to 45º
- Improves efficiency through a dual-sourced weighted/hydraulic table feed
- Fast & accurate all-purpose saw, with the benefits of both a vertical and horizontal saw
12″ New Roll-In Vertical Band Saw Model JM1220 Journeyman Optional Equipment:
| Part# 901 5′ roller conveyor | $619 |
| Part# 902 10′ roller conveyor | $934 |
| Part# 174 Factory installed work light | $139 |
| Part# 1A109H Mist coolant system | $919 |
| Part# 6000 Welder, grinder and shear | $4,295 |
12″ New Roll-In Vertical Band Saw Model JM1220 Journeyman Replacement Band Saw Blades:
| Part# 2115 3/4″ x 12′ 10″L x 0.035 (8/12T) Bi-metal (standard blade included) | $79 |
| Part# SB205 3/4″ x 12′ 10″L x 0.035 (10T) Carbon | $54 |
| Part# 999 Blade tension guide | $499 |
