Description

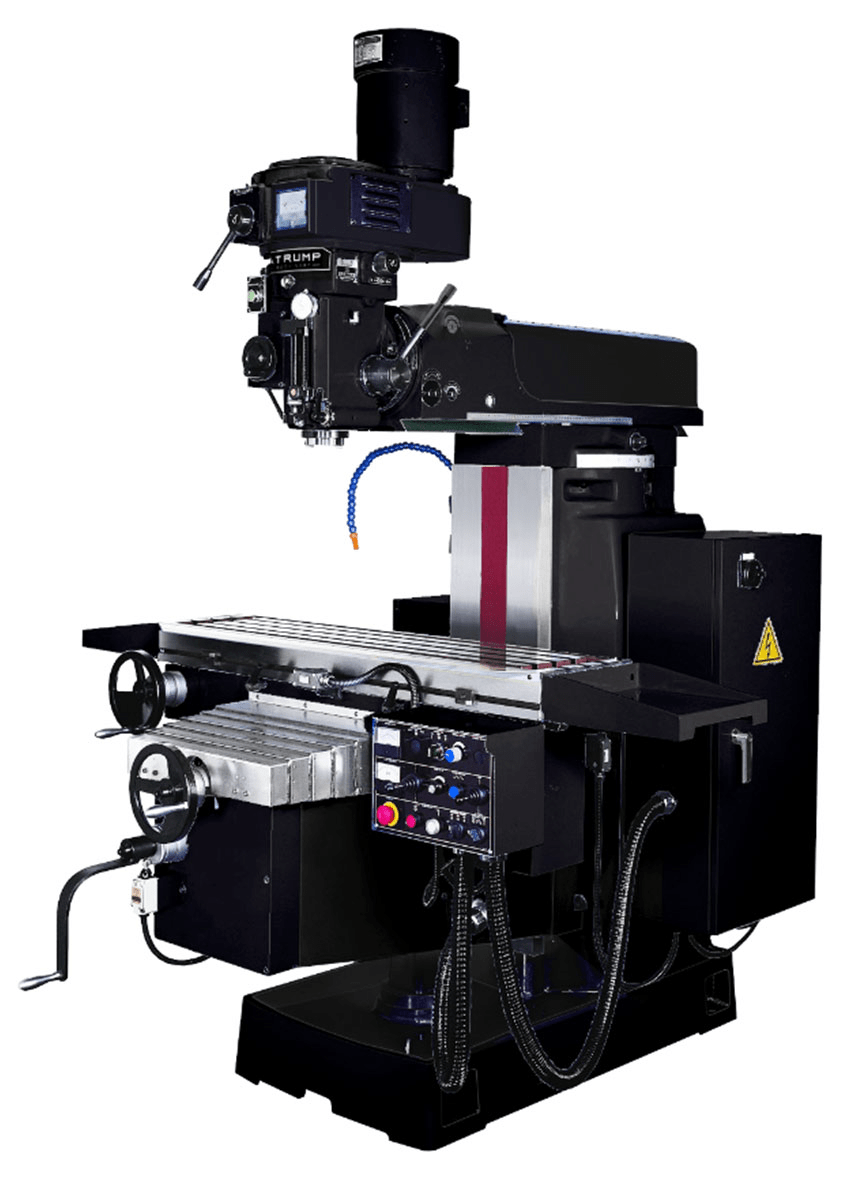

New Atrump mill for sale Model KV6 with a 12″ x 60″ table. Mechanical Variable Speed Head.
The Atrump Machinery milling machine has served as a reliable milling machine for over 35 years. From one man job shops to large manufacturing plants, tool rooms, tool and die shops. The new KV6 Atrump knee mill for sale at Worldwide Machine Tool is an exceptional vertical milling machine for every shop. Every Atrump mill for sale is built on the Bridgeport milling machine platform. The KV6 Atrump vertical milling machine is built in Taiwan using high quality Meehanite castings. The Atrump milling machine is warehoused in our United States shipping facilities. Each Atrump vertical milling machine is built with Class 7 spindle bearings, hardened and ground ways with Turcite coatings.
Atrump Machinery builds each knee mill to last and stands behind each machine with exceptional quality Atrump mill parts and service. Call Worldwide Machine Tool if you are in need of Atrump mill parts at 614-255-9000 Mon-Fri 8a.m. – 5p.m. Search our site for Atrump mill reviews from happy owners that purchased a new high quality KV6 Atrump mill from Worldwide Machine Tool. Worldwide Machine Tool is your premier Atrump milling machine dealer. Call 614-255-9000 to order a base KV6 Atrump mill for sale or add additional optional parts and accessories to customize your new Atrump milling machine today.
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Specifications:
Table | 12″ x 60″ |
X travel | 47.2″ |
Y travel | 18″ |
Z travel | 19.69″ |
Quill travel | 5.5” |
Quill diameter | 4.13” |
Ram travel | 24” |
Saddle | 53.5″ |
Table load capacity | 1,100 lbs |
T-slot (3) | 0.71″ x 2.5″ |
Spindle taper | NT40 |
Spindle speed | 70 to 3,800 rpm with Hi/Lo gears |
Transmission spindle-motor | Timing belt |
Head swivel (right/left) | ±90° |
Spindle motor/Max power | 5 HP |
Coolant pump | 1/8 HP |
Lubrication pump | Auto lubrication |
Floor plan (WxDxH) | 124″ x 76.7″ x 96.4″ |
Net weight | 5,720 lbs |
Power requirement | 10 KVA 3 phase 208V to 230V (Max) |
Type of oil for oil way | Mobil Vectra #2 |
Air requirement | With Opt. power draw bar 70-100 psi |
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Features:
- Meehanite castings, box way design on the Y & Z axes
- C5 double nut precision ball screw screws for high accuracy and long lasting
- Servo motor for X & Y axes
- Rapid up & down motor
- X Y Z hardened & ground with Turcite-B coating guide way
- Mechanical variable speed head 70-3,800rpm with Hi/Lo gears
- Front steel way cover and rear chip rubber cover
- Built in LED work light
- Auto lubrication system
- Coolant system with chip pan
- Precision P5 class spindle bearing to ensure spindle run out within 0.0002inch
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Standard Accessories:
- Auto lube system
- 5HP spindle motor
- Rapid up/down motor
- Servo motor for X & Y
- Coolant system
- Chip pan
- Draw bar
- Front steel way cover
- Rear rubber cover
- Tools & tool box
- Halogen work light
- Parts manual machine
12″ x 60″ New Atrump Super Heavy Duty Manual Knee Mill Model KV6 Optional Accessories:
PDB-MAX Power Draw Bar-Maxi-Torque installed | $1,250 |
ACC Arm type console control | $840 |
C80-2-1260 DRO System X & Y Axis (NEWALL) installed | $3,000 |
C80-3-1260 DRO System X & Y & Quill Axis (NEWALL) installed | $3,780 |
C80-3-K DRO System X & Y & Knee Axis (NEWALL) installed | $3,780 |
NT40 Kit Recommend | |
CK-101 52pcs Clamping Kit | $135 |
NT40-TOOL6 NT40 Tool Holder set (6 pcs.) 3/8, 1/2, 5/8, 3/4, 1″, and keyless drill chuck | $555 |
NT40ER40-10 NT40 ER40 Collect (10pcs.) 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 7/8, 1″ + NT40 ER40 chuck*1 + Wrench | $315 |
NT40ER40-17 NT40 ER40 Collect (17pcs.) 1/8, 3/16, 1/4, 5/16, 3/8, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1″+ NT40 ER40 chuck*1 + Wrench |
$475 |
VISE-6-TW 6″ Angle Vise W/ Swivel Base | $550 |
