Description

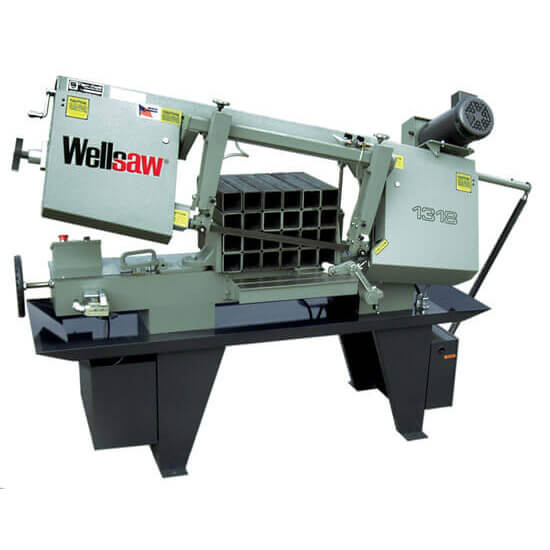

13″ x 18″ New Wellsaw Horizontal Band Saw Model 1318 Specifications:
| Maximum Cutting Capacity Round | 13″ |
| Maximum Cutting Capacity @45˚Angle | 11″ x 9-1/2″ |
| Maximum Cutting Capacity Rectangular | 13″ H x 18″ W |
| Blade Guides | Carbide Guides with Rollers |
| Blade Size (LxWxT) | 1″ x .035″ x 12’6″ (150″) |
| Blade Tension | Manual Rite-Tension |
| Blade Speeds | Infinitely Variable 70-375 SFPM |
| Vise Control | Quick Acting/Manual Screw |
| Motor Options | 2 HP-115-208-230/60/1 3 HP-208-230-460/60/3 |
| Coolant System | Tank Capacity 8 Gallons, Submersible Pump 3GPM |
| Feed Rate Control | Variable Hydraulic with Counterbalance spring |
| Band Wheels | 15″ Diameter Cast Iron |
| Swivel Vise | to 45 degrees |
| Bed Height | 29″ |
| Floor Area | 40″ W x 84″ L |
| Shipping Weight | 955 lbs. |
13″ x 18″ New Wellsaw Horizontal Band Saw Model 1318 Features:
- Spring-loaded carbide guides with rollers
- Combination reduction gearbox and perimeter ring gear blade drive
- Baldor Motor, 3 hp motor 3 phase TEFC, 2hp single phase OOP
- Infinitely Variable Blade Speeds
- Rite-Tension Band Tensioning Device
- Wet Cutting System
- Powered Blade Brush
- 110 Volts at Controls
- Overload and Undervoltage Protection
- Precision Ground Bed and Vise Jaws
- Quick Acting Vise
- Adjustable Stock Stop
- Auto Shut-Off at End of Cut
- OSHA Blade Guarding
- Tiger-Tooth Bi-Metal Blade
- Coolant for Initial Start-Up
13″ x 18″ New Wellsaw Horizontal Band Saw Model 1318 Accessories:
| Variable Speed/Frequency Type | $2113.00 |
| Powered Vise (air power, manual control) | $1819.00 |
| Overhead Bundle Clamp Air Powered | 1969.00 |
| Blade Break/Stall Switch | $792.00 |
| Work Light with 250va transformer | $208.00 |
| Flush Hose Kit (w/hi-output pump) | $316.00 |
| Casters, set of four (2 locking) | $186.00 |
| Fused Disconnect-Lever Type/NEMA 1 Enclosure | $838.00 |
| Fused Disconnect-Rotary Type/NEMA 12 Enclosure | $897.00 |
| Micro Lubricant System-Oil Only | $906.00 |
| Lubricant for Micro System-1 gallon | $71.00 |
| Coolant For Flood System, one gallon | $38.57 |
| Leveling/Vibration Mounts | $110.00 |
| Laser Line Pointer | $794.00 |
| Tiger Tooth Bi-Metal Blades. Set of six (6) | $538.48 |
| Roller Conveyors, 18″ x 5 ft | $679.00 |
| Roller Conveyors, 18″ x 10 ft | $1132.00 |
| Roller Conveyors, 24″ x 5 ft | $749.00 |
| Roller Conveyors, 24″ x 10 ft | $1305.00 |
| Mid-Duty Stock Stand-18″ wide roller, 250# capacity | $216.00 |
| Heavy-Duty Stock Stand-6″ wide roller, 1000# capacity | $586.00 |
| Heavy-Duty Stock Stand-12″ wide roller, 1000# capacity | $607.00 |
| Solid Discharge Table, 4′ x 20″ | $683.00 |
