Description
13″ x 18″ Used HydMech Pivot Style Horizontal Band Saw Model S-20 Series III Specifications:
| Capacity | |
| 90° rectangle (h x w) | 13″ x 18″ |
| 90° round | 13″ |
| 45° rectangle (h x w) | 13″ x 10.75″ |
| 45° round | 12″ |
| 30° rectangle (h x w) | 13″ x 7.75″ |
| 30° round | 8.5″ |
| Blade Drive | 3 HP VFD |
| Blade Speed | 45-330 SFM |
| Blade Size | 1″ x 14′ 10″ |
| Table Height | 31″ |
| Voltages Available | 220V 3 Phase |
| Weight | 2,200 lbs |
| Dimensions (w x l x h) | 92″ x 75″ x 52″ |
| Coolant Tank Capacity | 6 gal |
| Work Load | 5,000 lbs |
13″ x 18″ Used HydMech Pivot Style Horizontal Band Saw Model S-20 Series III Standard Features:
- Easy swing, heavy duty cast iron saw head that can swing up to 60 degrees in one direction
- 3 HP true direct blade drive – no belts/pulleys
- 36” material in-feed roller table and 19” out feed table
- Heavy duty, quick adjusting, sliding material vise jaw
- Mechanical band tensioning with digital readout
- Cast iron band wheels

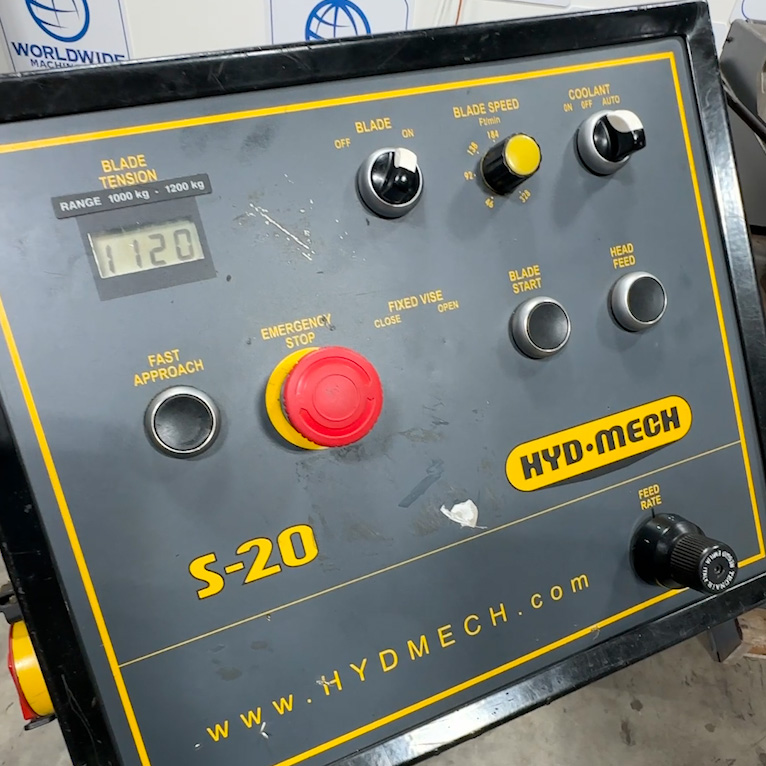

- Swing away operator control panel
- Replaceable blade brush
- Robust steel base
- Easy to read angle scale with angle locking mechanism
- Cast iron guide arms. Idler side guide arm is adjustable and supported by linear rail.
- Gravity fed sawing head with infinite down feed adjustment
- Preset replaceable carbide guide inserts
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
13″ x 18″ New HydMech Manual Pivot Style Horizontal Band Saw Model S-20 Optional Features:
- 220 volt 3 phase
- Swing away console
- Variable speed drive
- 60 degree miter
