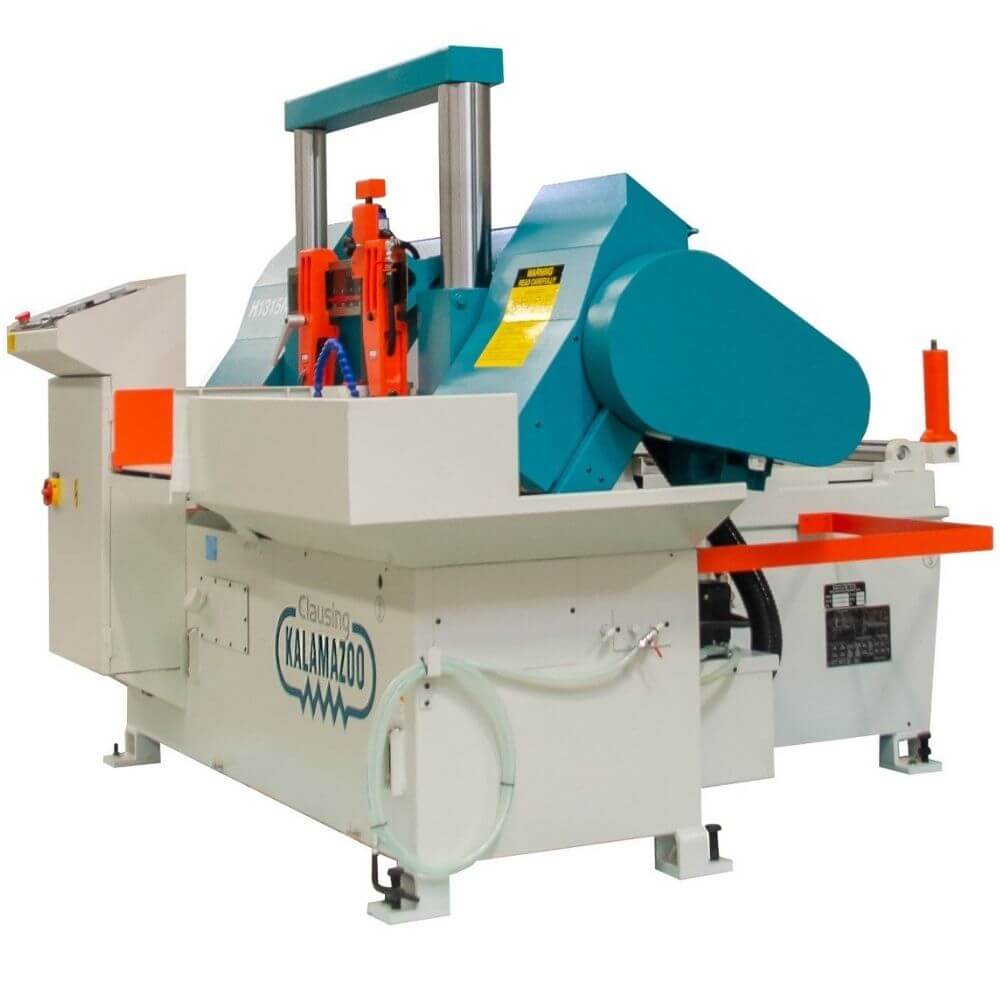

15″ x 12.6″ New Clausing Horizontal Bandsaw Model H1315NC

Price On Request
F.O.B. Factory
Terms:  Check with Order

Options

Description

15″ x 12.6″ New Clausing Horizontal Bandsaw Model H1315NC Specifications:

Motor 5 Hp, 230 3 Ph
Hydraulic pump motor 1 Hp
Hydraulic oil capacity 6.6 gallons
Blade speeds (variable speed) 49-262 fpm
Blade size (W x T x L) 1.25″ x 0.042″ x 166.9″
Blade tension Hydraulic
Coolant Recirculating
Coolant capacity 11.9 gallons
90º cutting capacity Round 12.6″
Square 12.6″
Rectangular 15″ x 12.6″
Bundle cutting width 7.48″ x 11.81″
Bundle cutting height 2.75″ x 5.51″
Feed length/index 15.86″
Max. feed 255.9″
Length 79.13″
Width 78.75″
Height 70.3″
Bed height 31.1″
Net weight 3,509 lbs.
Shipping weight 3,766 lbs.



15″ x 12.6″ New Clausing Horizontal Bandsaw Model H1315NC Features:

  • Oversized hydraulic cylinder
  • Twin column design ensures rigid support during cutting cycle
  • Hydraulic shuttle vice assembly
  • Inverter controlled infinitely variable speed
  • Carbide blade guides with roller bearings
  • Two additional guides to support the blade from the top
  • Automatic hydraulic blade tensioning
  • Power driven blade brushes
  • Integral coolant system
  • Smart NC-100 technology programmable up to 100 different jobs
  • Easy recall and execution of stored parts
  • Automatic shutoff after preset number of cuts or when out of stock
  • 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
  • Automatic kerf loss compensation & computer controlled multiple indexing
  • Precision feed pressure & feed rate
  • Bundle/single cutting mode switch
  • Automatic height setting feature
  • Hydraulic front and rear vises
  • Cast iron vises with replaceable hardened wear plates
  • Discharge table with built-in coolant return
  • Blade slippage or breakage detection
  • Adjustable cut-off stock fence
  • Additional flushing hose
  • Bi-metal saw blade
  • Built in work light
  • Tool box, leveling pads and an additional wire brush
  • Operation and parts manual
  • Two (2) year limited warranty



15″ x 12.6″ New Clausing Horizontal Bandsaw Model H1315NC Optional Accessories:

P11      Stock Stand Assembly 29.5”-39.5” Height $450.00
VP13NC         Vise Press Regulator (factory installed) $1,330.00
SM1303          Buck Boost Transformer 7.5 HP (208 volt to 230 volt) $945.00
SM1303A       460v to 230v Transformer 7.5 HP $1,440.00
CM1301N      Chip Conveyor $1,505.00
CM1302N      Hydraulic Bundle Clamps $1,365.00
SA20   H.D. Roll Table 15” x 10’ (24”-32”) 3” Ctr. (10K cap) $2,890.00
SA21   H.D. Roll Table 15” x 5’ (24”-32”) 3” Ctr. (10K cap) $1,695.00
CSR1   SAWZIT 1 Gallon Coolant $40.00
CSR5   SAWZIT 5 Gallon Coolant $145.00
