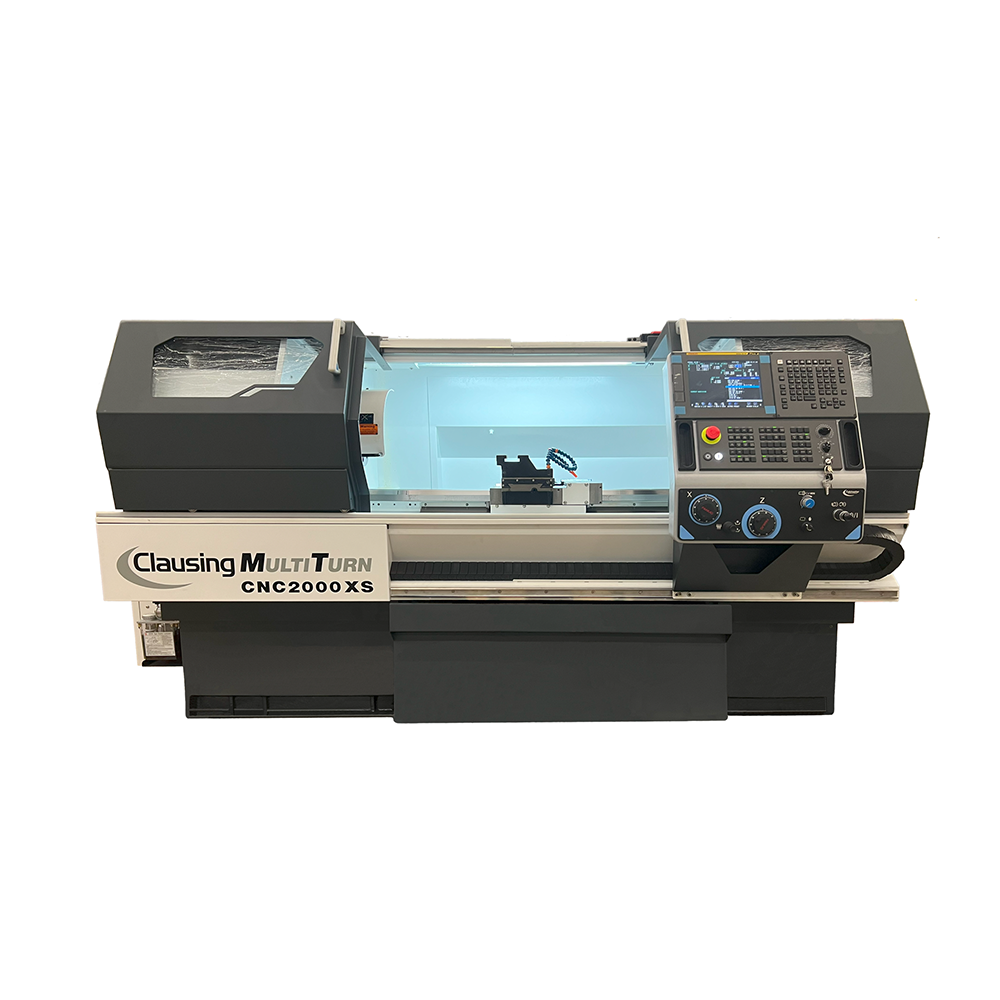

15″ x 50″ New Clausing CNC Lathe Model CNC2000XS

Description

15″ x 50″ New Clausing CNC Lathe Model CNC2000XS

Clausing Colchester/Harrison Multi-Turn Flat Bed CNC Lathe with Teach Capabilities. 15.7” Swing over bed, 3 Gear Infinitely Variable Speed Ranges 1 – 2700rpm, 10 Hp Spindle motor, 50” between centers, 9.7” Swing over the cross slide, 2.125 Spindle Bore, D1-6 camlock spindle nose, 2.87” Tailstock quill diameter with 5 morse taper bore. 230/460 Volts, 3 Phase

15″ x 50″ New Clausing CNC Lathe Model CNC2000XS Specifications:

Features

• Highly versatile flat bed design lends itself to a wide range of applications including job shops, tool rooms, educational facilities, shaft production and low to medium production runs.
• Anti-friction PTFE material between saddle and bed greatly reduces friction and has superior dampening properties to reduce chatter during machining cycles. The low friction PTFE minimizes bed wear and extends the life of the machine.
• Heavy-duty cast iron bed ways are induction hardened to 45Rc to a minimum depth of 0.060 inch.
• Triangulated bed webs give the bed very high torsional stiffness, eliminating bed deflection even during heavy roughing cuts.
• Extra wide 12.5″ bed maximizes support for the saddle and cross slide assembly for smooth machining of even large components.
• Variable AC spindle drive provides 10Hp (30 Min Rated) and 7.5Hp (Continuous) for exceptional machining power.
• Three-range headstock allows full horsepower to be reached at 70 rpm. More efficient machining is therefore possible in situations requiring low spindle speeds such as the machining of large components or of tough materials such as stainless and tool steels.
• Superior headstock lubrication is accomplished with an external electric oil pump to ensure a long life of spindle bearings and gearing.
• Automatic central oil system with low oil alarm maintains proper lubrication to slide ways and ballscrews.
• Digital AC servo drive system provides powerful and accurate axes positioning.
• A wide choice of tooling options are available to further enhance the versatility of the machine. Gang tooling, quick-change tool posts and automatic indexing turrets are available to suit job conditions and maximize output.
• Optional eight-station automatic indexing turret with VDI 30 tooling provides flexibility with quick changeover and set-up. A wide range of turning and boring toolholders are available to meet the requirements of most any job.
• Optional quick-change tool post allows an unlimited number of tools to be used, and eliminates interference problems with idle tool stations. The compact nature of the quick-change tool post also increases the maximum turning capacity.
• Fully enclosed, interlocked guarding maintains a clean and safe work environment.
• The compact size of the CNC2000 allows for efficient use of floor space.
• DIN 8605 Toolroom Accuracy

Fanuc 0iTF Control XS Series Machines

• Latest generation Fanuc 0iTF control offers exceptional value and reliability with many standard features to simplify operation and increase productivity.
• “Manual Guide i” programming system allows the operator to generate part programs quickly and efficiently through the use of easy-to-understand conversational style cycle prompts. A comprehensive list of cycle and profile commands is provided.  The part program can be verified with the Manual Guide Graphics function prior to cutting the component.

Fanuc 0iTF Control Continued

• Direct Drawing Dimension Programming simplifies programming of even complex components by using simple radius, line and angle definitions. The Fanuc control calculates intersecting and tangent points and automatically inserts radius and chamfers.
• Multi repetitive Cycles G70-G76 for automatic finishing, roughing, drilling, threading and grooving cycles.
• Toolpath graphics for verification of part profile before and during machining cycle.
• 4″ Color LCD Display
• Absolute/incremental programming in the same block
• Programmable increments: 0.0001″ min., 999.9999″ max.
• Thread cutting leads: 0.00001″ min., 1.0″ max.
• Multiple part program storage (400 programs)
• Constant surface speed/direct rpm programming
• Menu programming format with operator prompts
• Two axes linear and circular interpolation
• Sequence number comparison and stop
• Custom Macro B
• Program restart
• Schedule function
• Inch/metric data input
• Rigid tapping
• Threading retract
• Variable lead threading
• G10 offset value setting
• 128K part program memory
• Sequence number search
• Background editing
• Extended part program edit
• Decimal point programming
• Optional stop/block delete
• Tool nose radius compensation
• 64 sets of tool offsets
• Tool geometry/wear offsets
• Tool life management
• Run hour, parts counter
• Automatic reference zero return G28
• Reference position return check G27
• 2^nd, 3^rd, 4^th reference position return
• Work coordinate system G52-G59
• Spindle orientation
• Machine alarm diagnostics
• Absolute encoders
• Communication Ports – USB, Ethernet, and RS232
• Manual pulse generator

XS Series Alpha System Control

Alpha System’s unique operation based control software developed by Colchester/Harrison uses easily recognizable screen graphics along with simple question and answer prompts to guide you through a programming operation. It is also the reason that the Alpha System uses a touch screen so you can work directly on screen rather than hunt for the right button to press. This system will allow you to program 26 different operations and store them in the control.

Tool Setting – On many lathes tool setting can be a difficult and tedious process.  With the Alpha things are different and there is no lathe control on earth that has a simpler tool setting procedure.  Just follow the instructions on three screens and the job is done, with the machine automatically calculating offsets and work shifts for you.

Semi-Automatic Turning – With the Harrison Alpha System, a wealth of semi-automatic turning operations can be performed.  These include parallel turning to stop positions, chamfers and radii, tapers, threads, grooves, box cycles and even contour shapes.  What’s more, the easy to understand shop floor language coupled with touch screen simplicity means that a turner can learn to machine parts quickly.  Most Operators will learn to use the Alpha System in less than half a day!

Standard Equipment

• High Pressure Coolant system
• Totally enclosed work area
• Interlocked guarding
• Automatic lubrication system
• Machine operating manual
• Accuracy chart
• Toolkit
• Standard 230 or 460 3 Phase (other voltages require a transformer or special order)
