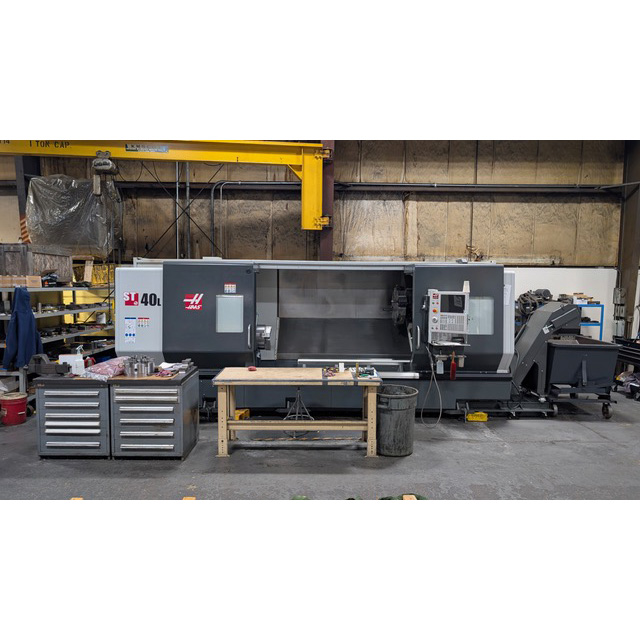

35″ x 80″ Used Haas CNC Lathe Model ST-40L Model Year 2020
NOTE: The following specs are approximate and we are awaiting confirmation.
The Haas ST Series high-performance turning centers were designed from the ground up to provide setup flexibility, extreme rigidity, and high thermal stability.
The ST-40L is a large-frame, long-bed lathe with a generous work envelope. This machine offers the best performance for the money – the best value – in its class.
- Extra-long work envelope
- Fully programmable servo tailstock
- Powerful spindle and hydraulic chucking system
35″ x 80″ Used Haas CNC Lathe Model ST-40L Specifications:
| CAPACITIES | S.A.E | METRIC |
|---|---|---|
| Chuck Size | 15.0 in | 381 mm |
| Max Part Swing | 35.5 in | 902 mm |
| Max Cutting Diameter (with BOT turret) | 30.00 in | 762 mm |
| Max Cutting Diameter (with BMT75 turret) | 27.50 in | 699 mm |
| Max Cutting Length (varies with workholding) | 80.0 in | 2032 mm |
| Bar Capacity | 4.00 in | 102 mm |
| TRAVELS | S.A.E | METRIC |
|---|---|---|
| X Axis | 20.00 in | 508 mm |
| Z Axis | 80.00 in | 2032 mm |
| FEEDRATES | S.A.E | METRIC |
|---|---|---|
| Rapids on X | 710 ipm | 18.0 m/min |
| Rapids on Z | 320 ipm | 8.1 m/min |
| AXIS MOTORS | S.A.E | METRIC |
|---|---|---|
| Max Thrust X | 5500 lbf | 24465 N |
| Max Thrust Z | 9000 lbf | 40034 N |
| SPINDLE | S.A.E | METRIC |
|---|---|---|
| Spindle Nose | A2-8 | A2-8 |
| Max Rating | 40.0 hp | 29.8 kW |
| Max Speed | 2400 rpm | 2400 rpm |
| Max Torque | 1400.0 ft-lbf @ 150 rpm | 1898.0 Nm @ 150 rpm |
| Spindle Bore ø | 4.62 in | 117.3 mm |
| XP OPTION | S.A.E | METRIC |
|---|---|---|
| Drive System | 2-Speed Gearbox | 2-Speed Gearbox |
| Max Rating | 55.0 hp | 41.0 kW |
| Max Speed | 2400 rpm | 2400 rpm |
| Max Torque | 2100.0 ft-lbf @ 150 rpm | 2847.0 Nm @ 150 rpm |
| Input AC Voltage (3 Phase) – Low | 220 VAC | 220 VAC |
| Full Load Amps (3 Phase) – Low | 105 A | 105 A |
| Input AC Voltage (3 Phase) – High* | 440 VAC | 440 VAC |
| Full Load Amps (3 Phase) – High* | 53 A | 53 A |
| TAILSTOCK | S.A.E | METRIC |
|---|---|---|
| Taper | MT5 | MT5 |
| Travel | 84.5 in | 2,146 mm |
| Max Thrust (Acme) | 3,000 lbf | 13,345 N |
| Min Thrust (Acme) | 200 lbf | 890 N |
| TURRET | S.A.E | METRIC |
|---|---|---|
| Number of Tools | 12-Station BOT | 12-Station BOT |
| OD vs ID Tools | Any Combination (will vary with turret) | Any Combination (will vary with turret) |
| Boring Bar Rear Clearance (from back of turret ) | 4.37 in | 111.0 mm |
| GENERAL | S.A.E | METRIC |
|---|---|---|
| Coolant Capacity | 95 gal | 360 L |
| AIR REQUIREMENTS | S.A.E | METRIC |
|---|---|---|
| Air Required† | 4 scfm @ 100 psi | 113 L/min @ 6.9 bar |
| Inline Air Hose | 3/8 in | 3/8 in |
| Coupler (Air) | 3/8 in | 3/8 in |
| Air Pressure Min | 80 psi | 5.5 bar |
| ELECTRICAL SPECIFICATION | S.A.E | METRIC |
|---|---|---|
| Spindle Speed | 2400 rpm | 2400 rpm |
| Drive System | 2-Speed Gearbox | 2-Speed Gearbox |
| Spindle Power | 40.0 hp | 29.8 kW |
| Input AC Voltage (3 Phase) – Low | 220 VAC | 220 VAC |
| Full Load Amps (3 Phase) – Low | 70 A | 70 A |
| Input AC Voltage (3 Phase) – High* | 440 VAC | 440 VAC |
| Full Load Amps (3 Phase) – High* | 35 A | 35 A |
| DIMENSIONS – SHIPPING | S.A.E | METRIC |
|---|---|---|
| Domestic Pallet | 254.0 in x 95.0 in x 105.0 in | 646 cm x 242 cm x 267 cm |
| Export Pallet | 249.0 in x 90.0 in x 100.0 in | 633 cm x 229 cm x 254 cm |
| Weight | 29900 lb | 13563.0 kg |
35″ x 80″ Used Haas CNC Lathe Model ST-40L Features
Model Year 2020
Low Hours
SPINDLES
- 2400-rpm Spindle
TURRETS & LIVE TOOLING
- 12-Station Bolt-On Tool Turret
CHIP & COOLANT MANAGEMENT
- 95-Gallon Coolant Tank
- Multi-Stage Coolant Pump
THE HAAS CONTROL
- Control Widescreen Monitor
- Large Remote Jog Handle with Touchscreen Display
- Ethernet Interface
- WiFi Connection for the Haas Control
- Power Surge Protection
- Early Power-Failure Detection Module
- Advanced Tool Management
- Media Display M-Code; M130
- HaasConnect: Remote monitoring
- HaasDrop
- Rigid Tapping
- Standard Program Memory, 1 GB
- ECO Mode
PRODUCT OPTIONS
- Extended Tool Pocket
- Auto Door for Lathes
- Phone Charging Stand
TOOLING & FIXTURING
- Bolt-On Toolholder Kit, 1.25″
WORKHOLDING
- Programmable Servo Tailstock, MT5
- 15″ Hydraulic Chuck, A2-8
