Description

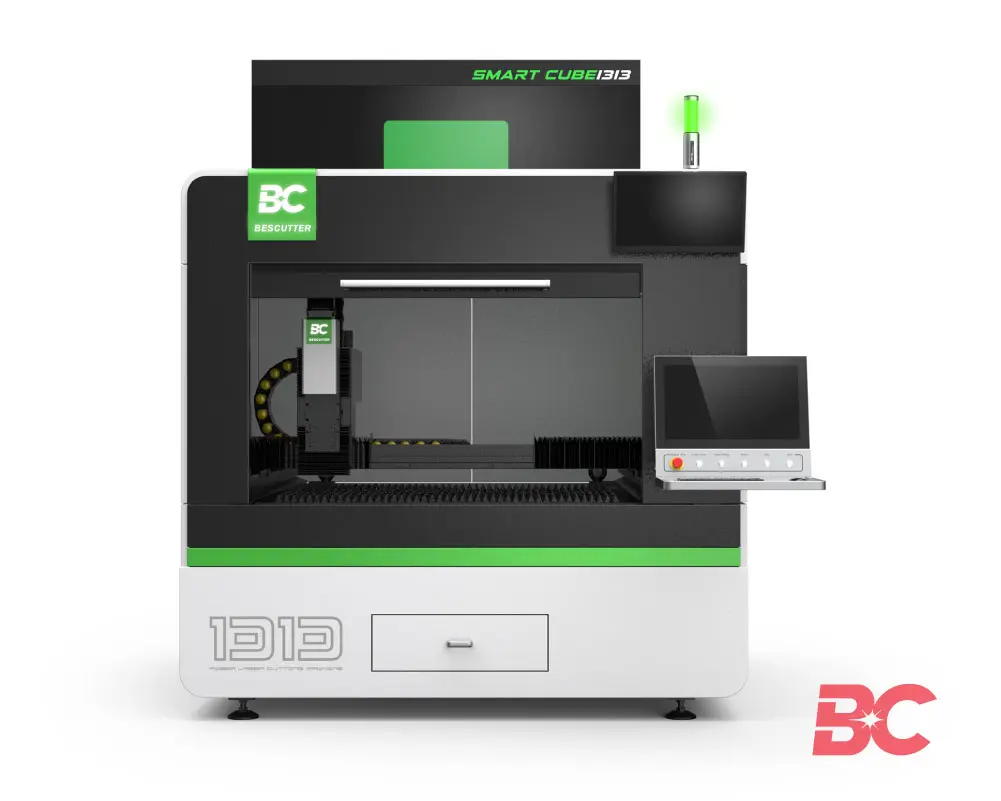

1,500W-6000W 51″ x 51″ BesCutter Smart Cube Compact Fiber Laser Cutting Series Overview:
The BesCutter Smart Cube is our compact fiber laser cutting series, built for precision, safety, and efficiency. This fully enclosed machine is ideal for shops requiring high-accuracy cutting in a space-saving design. Available with laser power options ranging from 1500W to 6000W, the Smart Cube offers fast, reliable, and efficient metal cutting, making it an excellent choice for industrial applications.
The machine features an integrated CCD camera for real-time monitoring, ensuring precision and quality control. Its rigid welded frame and aluminum gantry provide stability and durability, while the FSCUT 2000S control system ensures seamless operation. Additionally, Bescutter’s US-based support guarantees quick troubleshooting and assistance whenever needed.
- Power that fits your needs: Choose from 1500W to 6000W laser power depending on your necessities. Contact a team member for a free consultation.
- The Smart Cube Fiber Laser Cutting Machine minimizes the need for multiple machines by offering sheet cutting capabilities. It is the optimal choice for best cost-effectiveness.
- Easy Cutting Design parameters and automatic cutting matching help you simplify the cutting process, effortlessly transforming you into a cutting master.
- Efficient Production With fast transmission speed and high-performance bus servo motor delivering leading dynamic performance, the Smart Cube series significantly increases processing efficiency, allowing you to achieve efficient production.
1,500W-6000W 51″ x 51″ BesCutter Smart Cube Compact Fiber Laser Cutting Series Standard Features:
. Fully enclosed safety design for operator protection and a clean work environment.
. Auto-focus laser head ensures consistent cut quality across all thicknesses.
. High-speed operation with a maximum speed of 84m/min..
. High-rigidity aluminum gantry for stability and smooth movement.
1,500W-6000W 51″ x 51″ BesCutter Smart Cube Compact Fiber Laser Cutting Series Specifications:
| Laser Power | 1500W – 6000W |
| Working Area | 51″ W x 51″ L |
| Overall Dimensions | 85” L x 91” W x 83”H |
| Machine Weight | 3,300 lbs |
| Positioning Accuracy | ±0.05 mm/m |
| Repeated Positioning Accuracy | ±0.02 mm |
| Max Speed | 55”/s (84m/min) |
| X-Y-Z Servo Motors | Y 2 x 1,500W – X 1 x 1,000W – Z 1 x 400W |
| Electromechanical | SCHNEIDER, SMC and etc. |
| Controlling System | CYPCUT BCS 100 |
| X Axis Travel | 51″ |
| Y Axis Travel | 51″ |
| Z Axis Travel | 4″ |
| Laser Resonator | Max & Han’s |
| Laser Head | RAYTOOLS |
| Lubrication System | Automatic Lubrication (Lubrication reminder available) |
