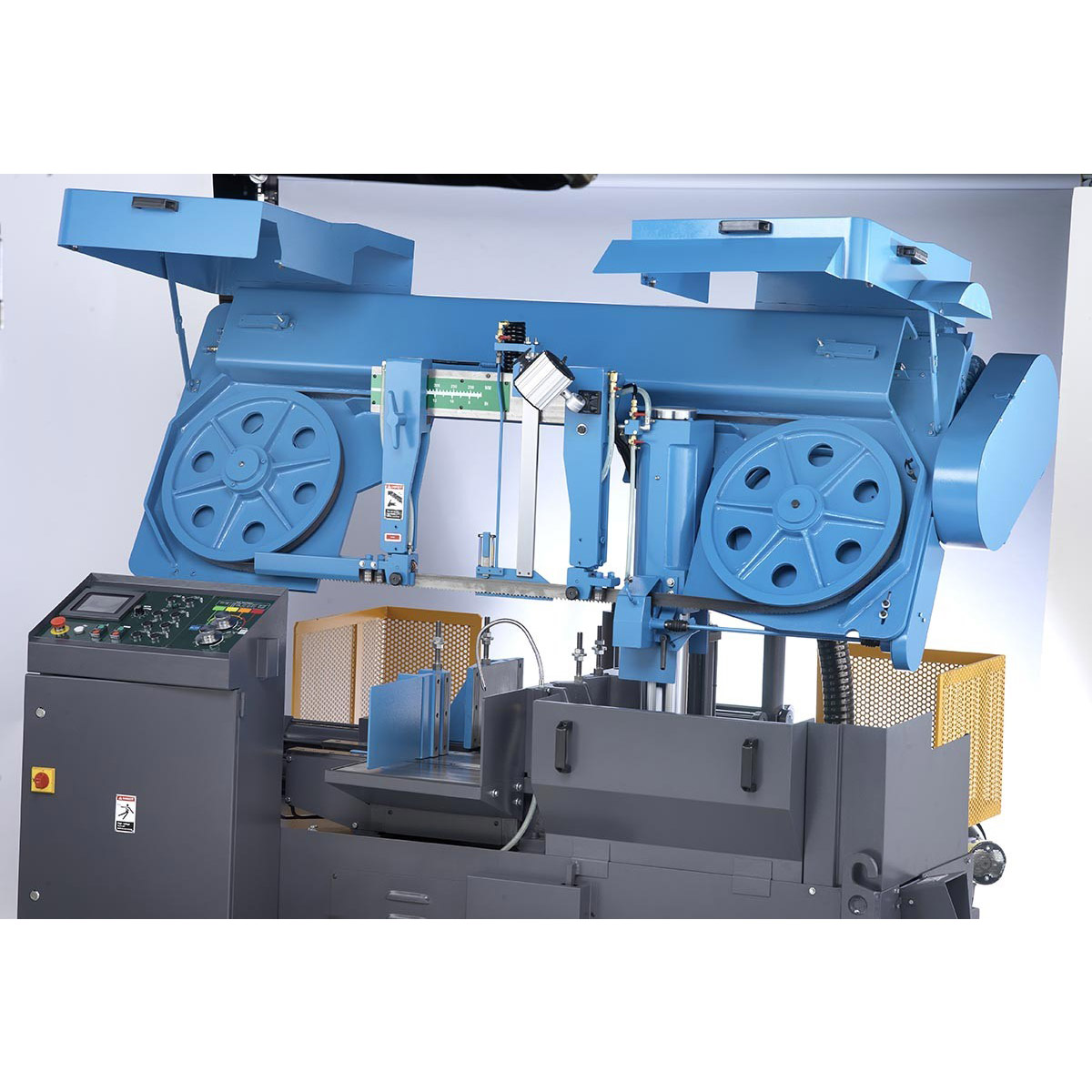

16.5″ x 16.5″ New DoAll Horizontal Band Saw Model DC-420NC for sale at Worldwide Machine Tool
The DoAll DC-420NC high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
16.5″ x 16.5″ New DoAll Horizontal Band Saw Model DC-420NC Specifications:
Capacity at 90° rectangle | 16.5″ x 16.5″ |
Capacity at 90° round | 16.5″ |
Capacity at 45° rectangle | N/A |
Capacity at 45° round | N/A |
Saw blade (width x length) | 1.5″ x 192″ |
Band Drive | |
Motor HP | 10 Hp |
Band speed | 52-430 fpm |
Band tension | Hydraulic |
Hydraulic System | |
Motor HP | 2 Hp |
Reservoir size | 22 gallon |
Coolant System | |
Flood | Yes |
Mist lubricator | No |
Motor HP | 1/4 Hp |
Reservoir size | 26 gallon |
Indexer | |
Length per stroke | 19.68″ |
Maximum index strokes length | 177″ |
Remnant length | 6.5″ (non bundle) |
Floor Space Dimensions | |
W x L x H | 97″ x 88″ x 66″ |
Material pass height | 27.5″ |
Machine weight | 5,512 lbs |
Electrical | |
Voltage requirement (Wye configuration) | 230V-60Hz-3ph |
Total amp draw (FLA) | 33 amps |
16.5″ x 16.5″ New DoAll Horizontal Band Saw Model DC-420NC Standard Equipment:
- Programmable Logic Controller for all machine functions
- Feed rate/feed force saw head control
- Infinite band speed controlled variable frequency drive
- Hydraulic retractable shuttle vice material indexer on chrome rails
- Rapid and creep speed index vice control
- Multi-step full stroke cylinder with a split front vise clamping fore and aft of the saw blade
- Variable vise pressure control
- Vertical hydraulic cylinders with hold down fixtures
- Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts with lead-in rollers
- Adjustable power driven band cleaning brushes with coolant flush line attached
- Halogen work light
- Flushing hose for machine wash down and auxiliary coolant nozzles
- Hydraulic band tension
- Hydraulic adjustable speed auger design chip conveyor
- Saw band break/stall motion detector shut off switch
- Band door interlocks
- Operation and parts manuals on USB stick
- One 6.5 foot (2 meter) idler input conveyor
- Maintenance tool kit
- Complimentary DoALL Cutting Fluids package
- One (1) complimentary DoALL bi-metal saw blade
16.5″ x 16.5″ New DoAll Horizontal Band Saw Model DC-420NC Optional Accessories:
231549 10 ft Medium-duty idler conveyor 17″ between frames. Roller capacity 850 lbs. | $2,619 |
231548 5 ft Medium-duty idler conveyor 17″ between frames. Roller capacity 850 lbs. | $1,612 |
227743 Out of square detection | $3,137 |
299998 Additional USB stick of manuals | $95 |
Laser Laser line | $1,302 |
NRTL A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards | $3,500 |
Warranty DoALL Cut Above 10 Year Warranty Annual Investment | $2,240 |
1200016 Starter Kit of Six Pack Blades Consist of 1 each Silencer Plus 2-3, 3-4, 4-6 and Penetrator 2-3, 3-4, 4-6 | $591 |
13410245 5 Gal. Pail of Band All 102 Semi Synthetic | $160 |
