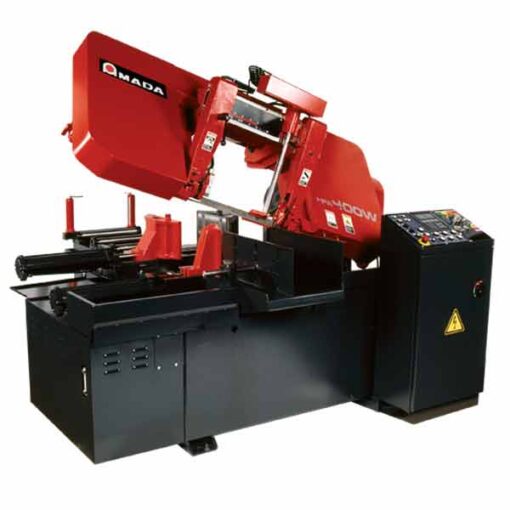

16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HFA400W Specifications:
| Cutting Capacity | |
| Round (diameter) | 1.18″ – 16.54″ |
| Rectangle (W x H) | 16″ x 16″ |
| Work Load Capacity | 5,511 lbs |
| Saw Blade | |
| Blade Size (L x T x W) | 15′ x 0.050″ x 1-1/2″ |
| Blade Speed | 56-295 ft./min Stepless |
| Tension Control | Hydraulic |
| Blade Control | |
| Top Limit Setting | Automatic Setting with Quick Approach Feeler |
| Cutting Control | Hydraulic Pressure & Flow Control Valve |
| Vise Operation | |
| Type | Main and Rear Vise |
| Control | Hydraulic Full-Stroke Cylinder |
| Motors | |
| Saw Blade | 7.5 HP |
| Hydraulic Pump | 2 HP |
| Cutting Fluid Pump | 1/4 HP |
| Power Requirement | |
| Power Supply Voltage | AC220V±10%, 3 PH, 60 Hz or AC440V±10%, 3 PH, 60 Hz |
| Power Requirement | 11 kVA |
| Cutting Fluid | |
| Tank Capacity | 31.7 gal |
| Pump Type | Centrifugal Electric Pump |
| Pump Capacity | 10.6 gal/min |
| Hydraulic | |
| Tank Capacity | 10.6 gal |
| Pump Type | Variable Discharge Vane Pump |
| Pump Capacity | 5.8 gal/min |
| Pressure Setting | 498 psi |
| Chip Disposal | Chip Conveyor |
| Material Index | |
| Index Mechanism | Shuttle Type |
| Stroke | 19.6″ |
| Length | 0.39″-999.999″ |
| Number of Input Station | 1-99 |
| Number of Cut-Off Pieces | 1-9999 |
| Remnant Length | 3″ Plus Length of Parts |
| Machine Dimensions (W x L x H) | |
| Head-Up Position | 89.5″ x 106.2″ x 95.5″ |
| Head Down Position | 89.5″ x 106.2″ x 62″ |
| Table Height | 31.5″ |
| Machine Weight | 4,850 lbs |
Features:
- SAW HEAD FRAME: The rigid ‘C’ section frame carries the mountings for the two band wheels, heavy-duty worm drive gear reducer, the band drive motor, and saw guide arm mounting supports.
- BAND WHEELS & DRIVE SYSTEM: The band wheels are cast iron for long, productive life. The deflection free 9.4 inch (240 mm.) wheel spindles ensure the wheels run true regardless of tension stress or cutting loads. The spindle assemblies incorporate tapered roller bearings for greater rigidity and long service life. The wheel tracks the blade so that the back of the band contacts the wheel flanges to support the band. The drive motor is coupled to the transmission through a variable speed pulley.

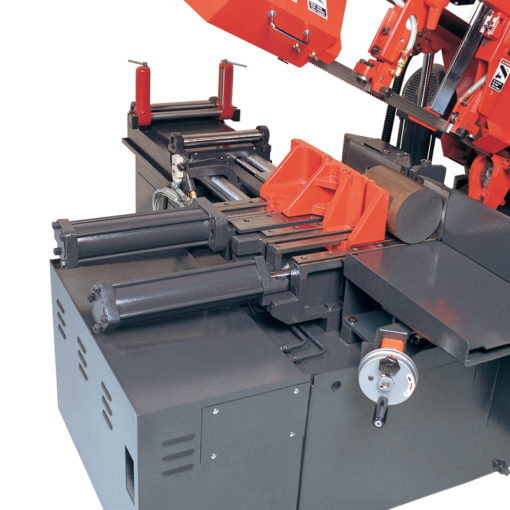

- INDEX FLOATING VISE: Indexing accuracy of +/- 0.004”/index. Both vise jaws open on the indexing vise to accommodate crooked bars and eliminate scoring the OD of finished bars.
- DRIVE WHEEL TRANSMISSION: The drive wheel transmission is designed and built by Amada to provide high efficiency speed reduction, which requires no external cooling, to deliver more power to the large diameter drive hub. This hub ensures that this developed torque is transferred to the blade with no strobing, enabling the machine to efficiently cut high alloys as well as free machining materials.
- PRESSURE FLOW VALVE: The independent pressure and flow controls in series ensure the optimum cutting rate can be obtained regardless of section or alloy being cut.
- IDLER WHEEL MOTION DETECTOR: The wheel motion detector will turn off the blade drive in the case where a blade breaks or is jammed in the workpiece. This feature also prevents premature wear on the drive wheel from a stalled band.

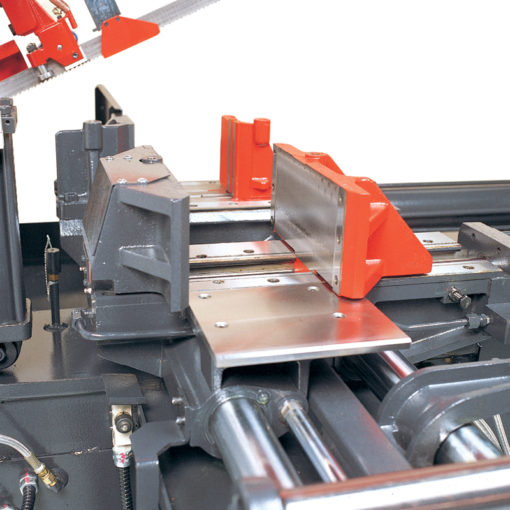

- SPLIT FRONT VISE: (HA250W) The work-holding vise is split so that it clamps the workpiece on both sides of the cutting plane.
- 9 TIMES MULTI INDEX: The machine control has the capability to make up to nine index passes, giving a maximum cut length of 141.7″ (3600 mm) for HA250W and 177″ (4500 mm) for HA400W in automatic mode.
- AUTOMATIC, POWERED CHIP CONVEYOR: Hydraulic-powered shaftless chip conveyor for chip removal and coolant separation. The electrically powered chip conveyor auger automatically removes the saw chips from the saw while draining the cutting fluid back into the fluid reservoir. The automatic chip conveyor greatly reduces cleanup time and enables the machine to run longer without operator cleanup.
- FULL STROKE VISE CLAMPING: The work holding and index vise cylinders are both full stroke which eliminates the manual setting of the clamping jaw for the working width.
- NARROW PROFILE FRONT VISE: The narrow front vise assembly reduces the butt end remnant to a minimum of 0.3″.
- AUTOMATIC KERF COMPENSATING DIAL: On multiple index, the need to calculate for kerf loss has been eliminated.
- ZERO CLAMP VISE
- DIAGNOSTIC LIGHTS
- PIECE COUNTER
- BLADE BREAK LIMIT SWITCH
- 2 WAY-OPENING VISE (HA400W)
- OPERATOR’S CONSOLE
16″ x 16″ New Amada Horizontal Scissor Style Band Saw Model HFA400W Optional Accessories:
| Vise Pressure Control | $3,125.00 |
| Vertical Clamps | $4,120.00 |
| Roller Table 6ft | $4,00.00 |
| Roller Table 10ft | $6,500.00 |
| Staging Table 6’x4’ | $3,600 |
| Staging Table 10’x4’ | $6,000.00 |
| External Chip Conveyor | $7,000.00 |
| Extended Warranty = Regular 1 year + Additional year Total 2 years | $1,254.00 |
