Description

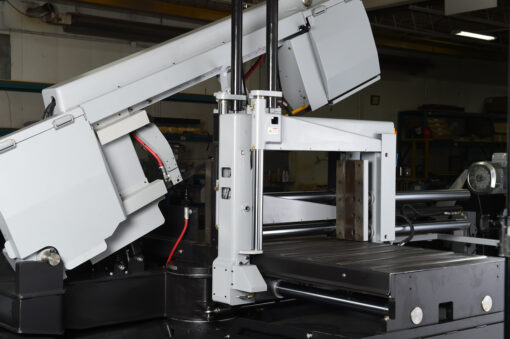

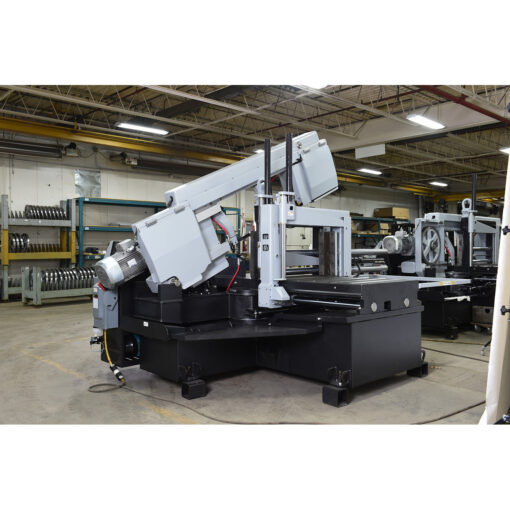

16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Specifications:
| Capacity | |
| 90° rectangle (h x w) | 16″ x 25″ |
| 90° round | 16″ |
| 45° rectangle (h x w) | 16″ x 15″ |
| 45° round | 16″ |
| 30° rectangle (h x w) | 16″ x 9″ |
| 30° round | 11″ |
| Blade Drive | 7.5 HP VFD |
| Blade Speed | 50-350 SFM |
| Blade Size | 1.25″ x 18′ 6″ |
| Table Height | 32″ |
| Voltages Available | 208, 240, 480, or 575 v |
| Weight | 7,400 lbs |
| Dimensions (w x l x h) | 132″ x 90″ x 66″ |
| Coolant Tank Capacity | 9 Gallons |
| Work Load | 8,000 lbs |
16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Standard Features:

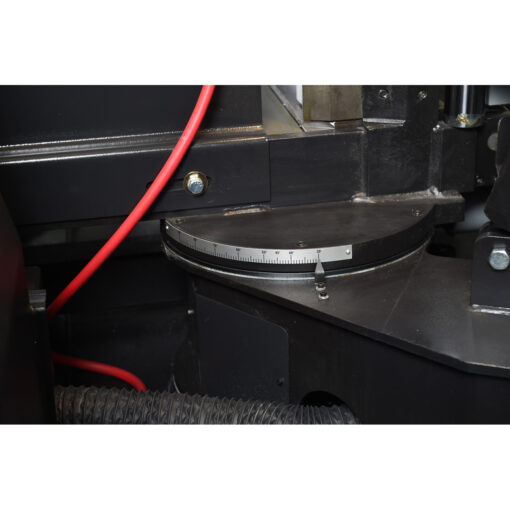

- Automatic programmable mitering with “go to” angle functionality
- Automatic multi-indexing up to 33” in a single stroke
- Full capacity, full stroking hydraulic vises

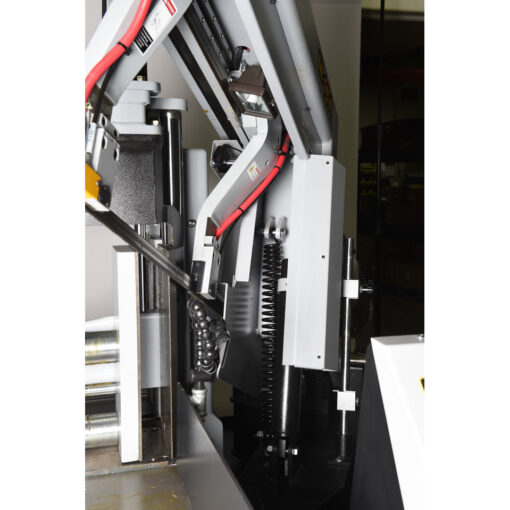

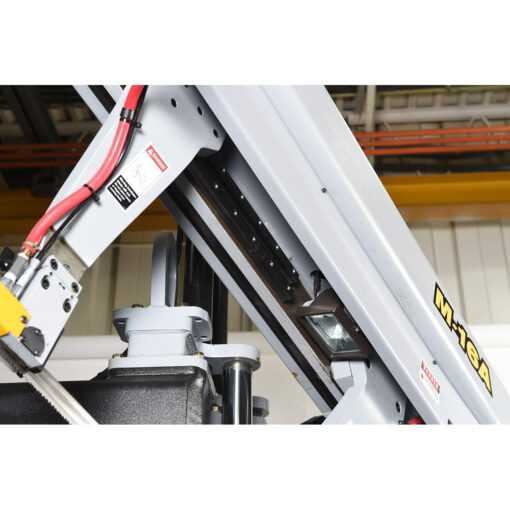

- Steel guide arms mounted on linear rails. Hydraulically powered idler side guide arm is adjustable for proper spacing.

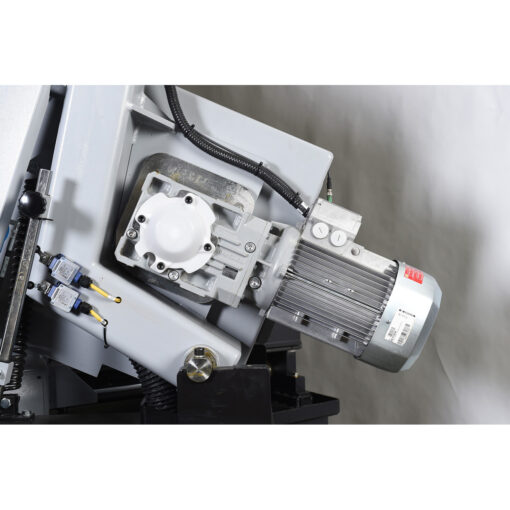

- 7.5 HP VFD. True direct blade drive – no belts/pulleys
- Hydraulic positive down feed
- Blade chamber separates material from cut part

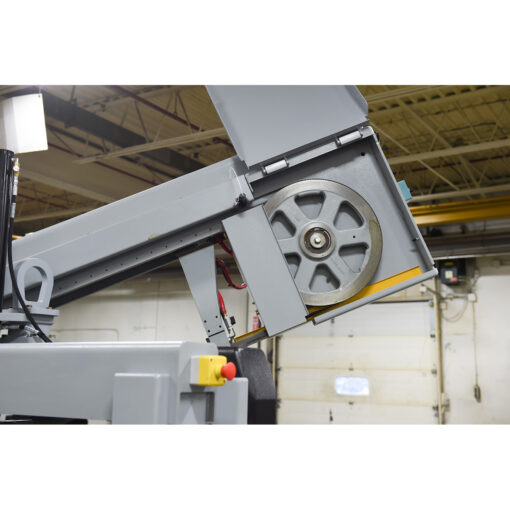

- Cast iron band wheels

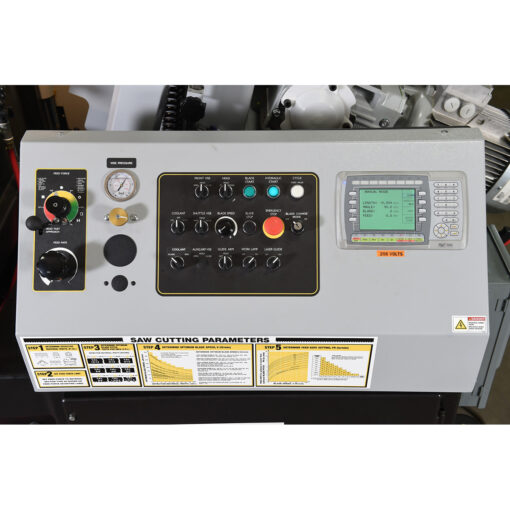

- 8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue

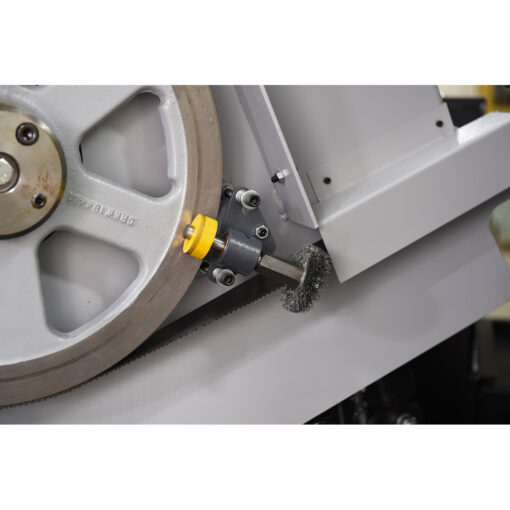

- Replaceable blade brush
- Robust steel base
- Variable vise pressure

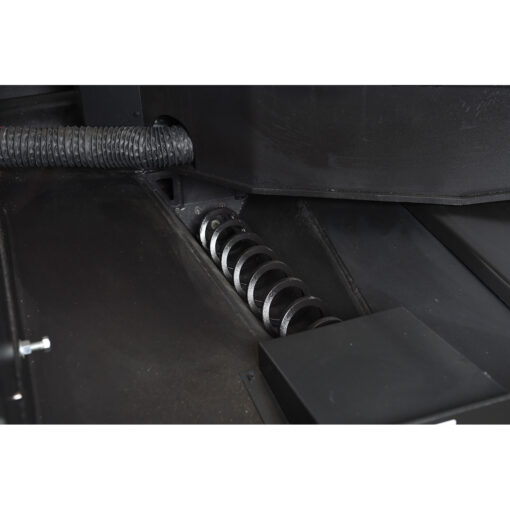

- Automatic chip removal auger

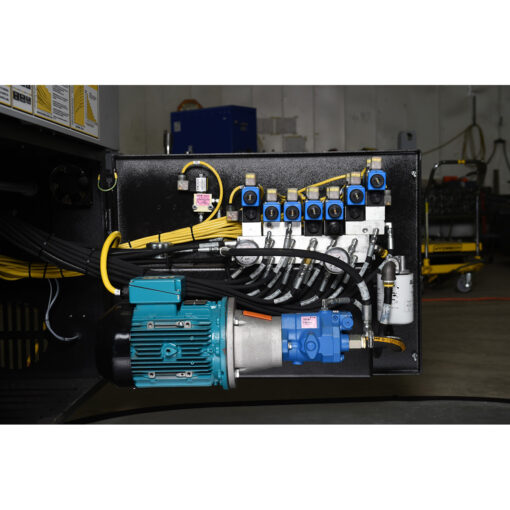

- Easy access electrical panel and hydraulics
- Hydraulic positive down feed
- Blade breakage switch
- Hardened replaceable wear plates on material vises
- Hydraulic band tensioning
- Hydraulic carbide guide tensioning
- Safety door interlocks
- Flood coolant with wash down hose
- Laser light
- Work light
- Out of stock switch
16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Optional Features:
- Blade deviation
- Full capacity hydraulic overhead bundling
- Chip bucket

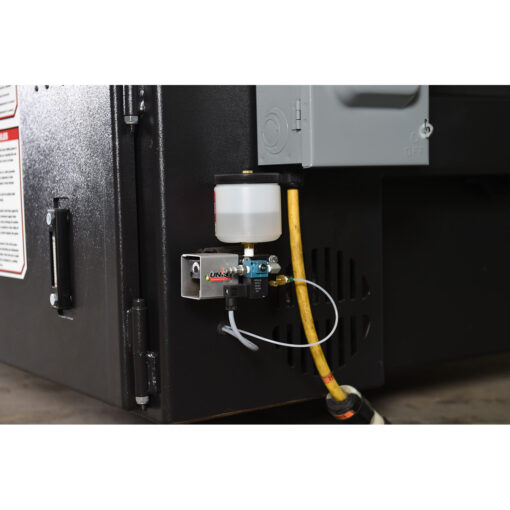

- Mist lubrication
- Remote console – 10′ cord
- Vertical rollers
- Idler conveyors
- Powered conveyors
16″ x 25″ New Hyd-Mech Automatic Pivot Style Horizontal Band Saw Model M-16A Optional Features:
| 14020030 Chip bucket | $700 |
| 12010008 Full capacity hydraulic overhead bundling – two vises | $6,200 |
| 12030060 Mist lubrication system (shop air required) | $1,900 |
| 12030080 Remote console – 10’ cord | $5,100 |
| 12010025 Vertical rollers | $1,600 |
| 12030030 Blade deviation monitor | $4,100 |
| Idler conveyors (36″W x 32″H) | |
| 18020361 Type 2 – 5’ in feed/ out feed idler conveyor | $4,900 |
| 18020362 Type 2 – 10’ in feed/ out feed idler conveyor | $9,900 |
| Powered conveyors (36″W x 32″H) | |
| 18020363 Type 2 – 5’ in feed/ out feed powered conveyor | $9,500 |
| 18020364 Type 2 – 10’ in feed/ out feed powered conveyor | $16,500 |
| 18099784 Additional 10’ power add on section | $10,500 |
| 18092000 Pneumatic clutch | $4,100 |
| Accessories for both idler and powered conveyors | |
| 18099091 Filler plates – for 5’ conveyor | $1,700 |
| 18099092 Filler plates – for 10’ conveyor | $3,400 |
| 18099084 Coolant drip pan – for 5’ conveyor | $1,800 |
| 18099083 Coolant drip pan – for 10’ conveyor | $3,600 |
| 18099080 Vertical alignment roller | $2,200 |
| 18099095 Fork lift cut outs | $2,200 |
