Description
17″ x 71″ New Lagun Vertical Bed Mill Model VBMA-1300

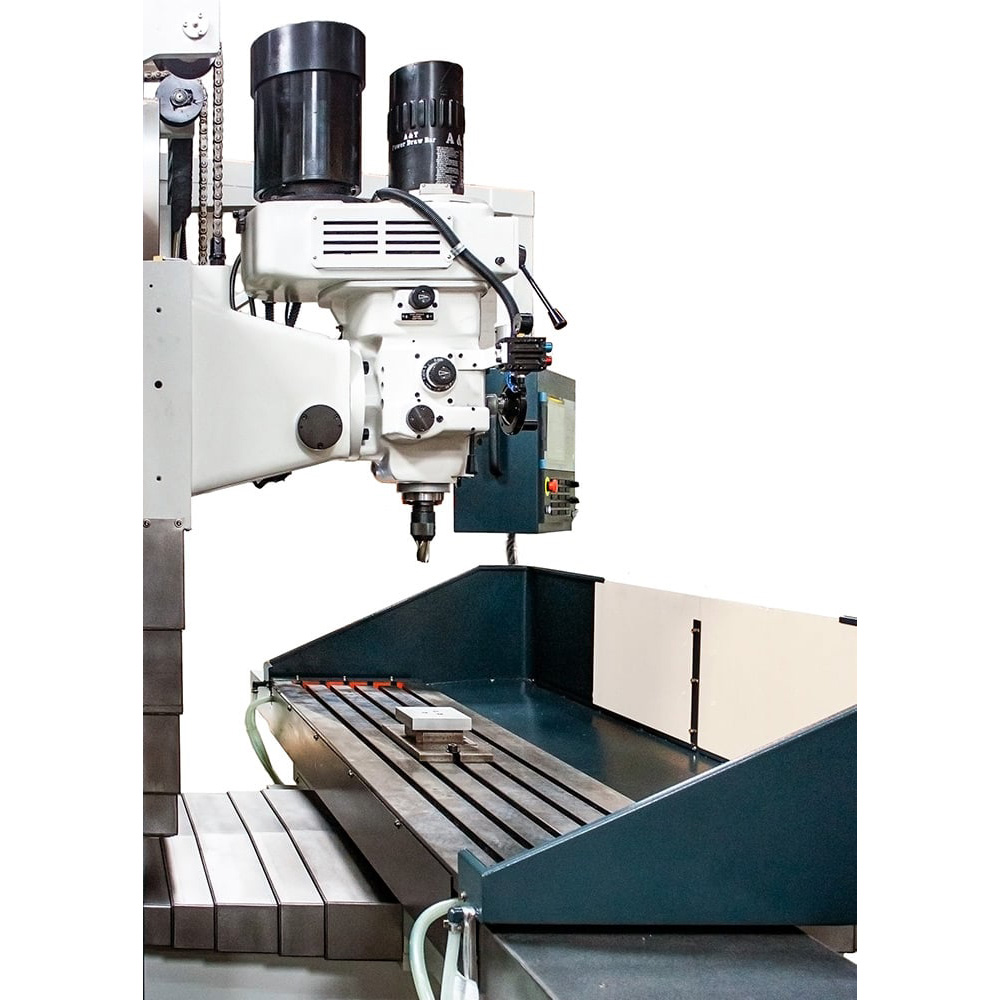

Lagun’s VBMA-1300 Vertical Bed Mill featuring standard Fanuc Oi-MF controls, heavy duty Meehanite castings, full automatic lubrication, 5 HP milling head, and halogen work light. These features are what make this user friendly, and sturdy mills the ideal machine for tool rooms and job shops.
17″ x 71″ New Lagun Vertical Bed Mill Model VBMA-1300 Specifications
| Mill Model | Vertical Bed Mill |
| Table Size | 17″ x 71″ |
| Weight Cap | 1,760 lbs |
| X Travel | 51″ |
| Y Travel | 24″ |
| Z Travel | 28″ |
| Motor HP | 5 HP |
| RPM Range | 3600 |
| Position Accuracy | .0004″/ft |
| Repeatability | .0002″/ft. |
| Cutting Feed X, Y (IPM) | 0-10M/min |
| Spindle Taper | NST #40 |
| Quill or No Quill | Quill |
| Quill Travel | 5.5″ |
| CNC | CNC |
| CNC Axis | 3 Axis |
Outstanding Features:
- Special heavy duty Meehanite castings to support heavy parts to (up to 2,205 lb, 1,000 kg) evenly distributed
- Extra-wide saddle assembly, supporting almost 100% of table length

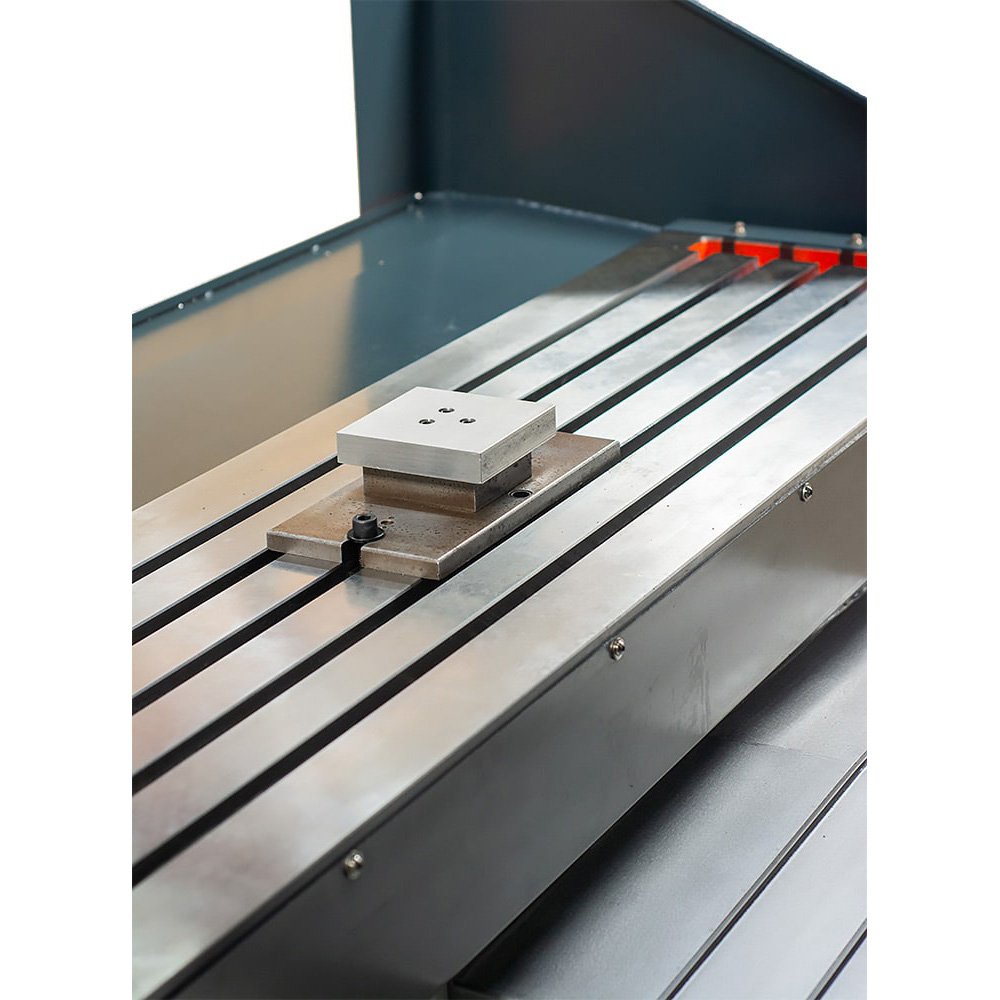

- Hardened and ground extra-large table 16″ x 60″, ideal for large dies and molds

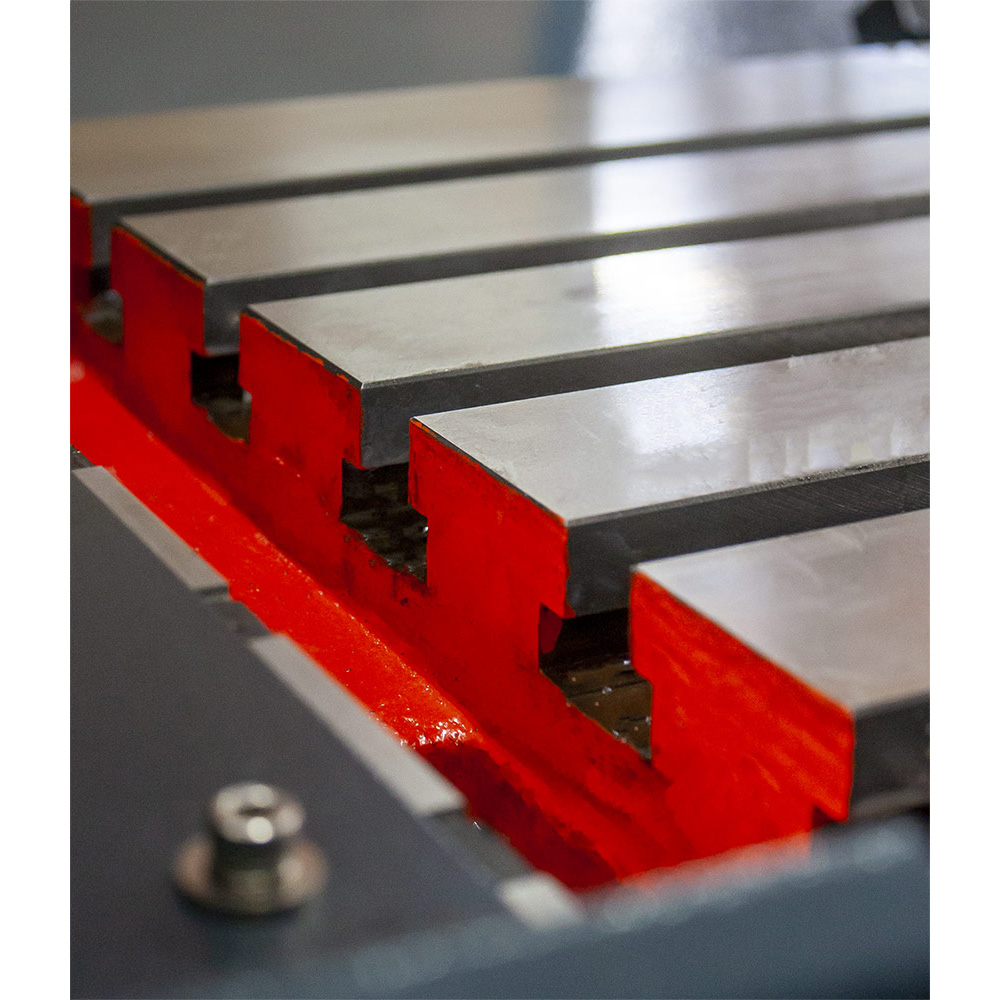

- Table “T” slot is precision ground to exact tolerance
- Dove tail design on X axis; Box ways construction on Y & Z axis
- Hardened and ground ways with Turcite B anti-friction linear bearing material on sliding surfaces and gibs also help dampening vibrations when under interrupted cut conditions
- Full automatic lubrication
- Large diameter precision double-nut ball screws on all three axes
- 1:2 ratio timing belt pulleys on X, Y & Z axes to increase drive torque
- Steel telescopic covers on X & Y axis and accordion rubber protection cover for Z axis ways
- Manual movement of table X & Y axis with a manual pulse generator(MPG). Manual movement of the quill (up-down) for machining manually.

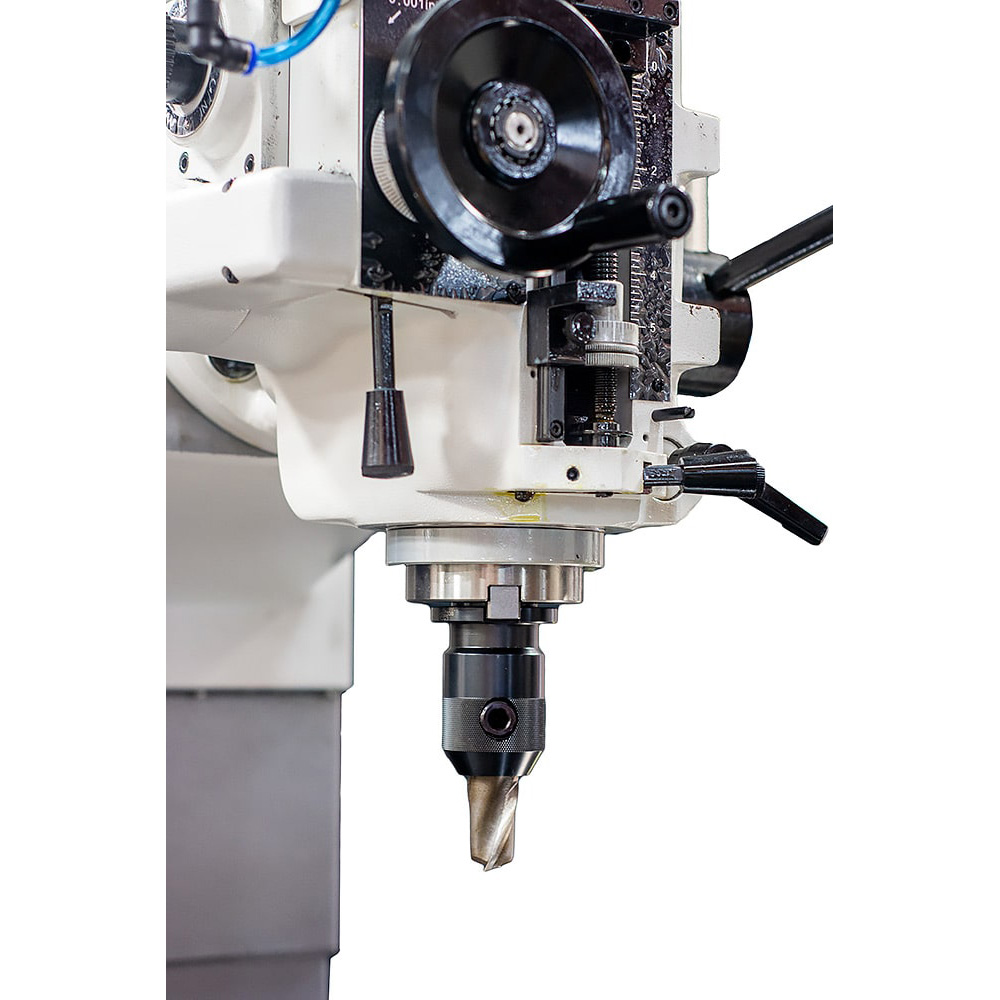

- 5 HP milling head with a 4 1/8″ diameter quill; #40 taper with 5″ manual (side lever) or power movement with MPG travel. Strong back gear transmission instead of timing belt for Hi-Low speed and with a counter-weight system on Z axis.
