Description

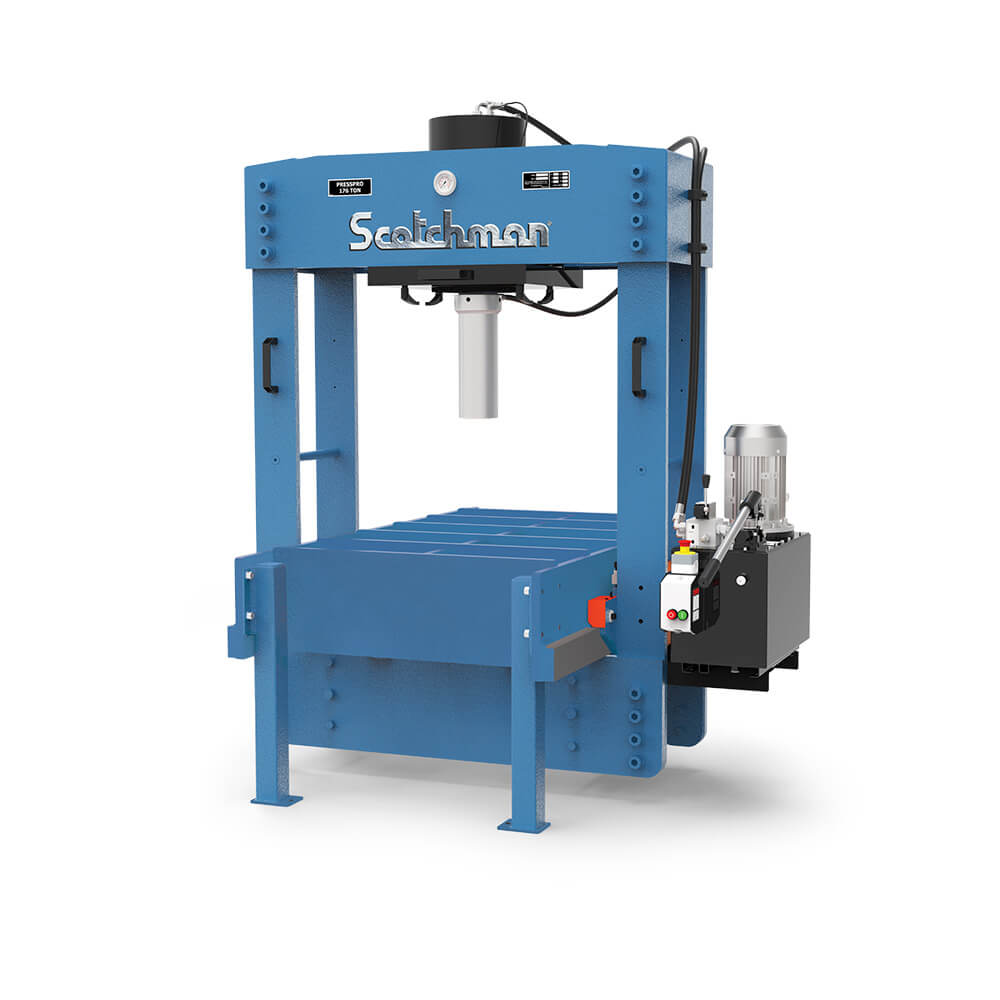

176 Ton New Scotchman Hydraulic Press Model PressPro 176 Specifications:
| Press Force | 176 ton |
| Motor Options (must specify) | 230/460v, 3 ph 5hp |
| Ram Speed – Approach | 18 ipm |
| Ram Speed – Press | 6 ipm |
| Ram Speed – Return | 22 ipm |
| Open Height (min.) | 7″ |
| Open Height (max.) | 36-1/2″ |
| Stroke | 15-3/4″ |
| Lateral Ram Slide | YES (Manual) |
| Width Between Uprights | 43-1/4″ |
| Width Between Table Channels | 15″ |
| Table Height | Adjustable |
| Footprint (L x W) | 68″ x 37″ |
| Height Overall | 86-3/4″ |
| Approx. Weight (includes V-blocks) | 2,634 lbs |
176 Ton New Scotchman Hydraulic Press Model PressPro 176 Standard Features:
- Heavy duty all-steel construction
- Industrial grade hydraulic system
- Ram moves laterally for added versatility
- 3 Ram speeds
- Joystick operation with hand pump option
- Removable ram cap to accept a variety of tooling
- Adjustable H-frame bed/table height offers increased versatility
- Open side-frame design allows for material to pass through
- Hydraulic-assist for table height adjustment to maximize operator safety
- Set of V-blocks to simplify your pressing jobs
- Pressure gauge to monitor force
- Meets CE standards
- Warranty: Three years on parts
- Made in the USA
