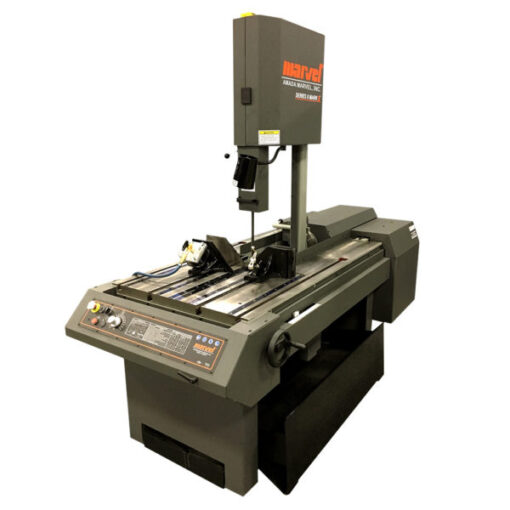

18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II USA Made!

18″ x 22″ New Marvel Vertical Tilt Frame Bandsaw Series 8-Mark-II for sale at Worldwide Machine Tool
• 45˚ Tilt Left & Right
• Lever Control With Hand Wheel Retract
• Mechanical Feed

F.O.B. Factory
Terms: Check with Order

Options

SKU: 30951 Categories: , ,

Description

18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Specifications:

Cutting Capacity (Standard Column)
Round 0° (diameter)
18″
Round 45° (diameter)
12.75″
Rectangle 0° (W x H)
18″ x 22″
Rectangle 45° (W x H)
18″ x 12.75″
Maximum vise opening
20″
Work load capacity
4,996 lbs
Saw Blade

Blade size (L x T x W)
14’6″ x 0.035″ x 1″
Blade speed
50-450ft/min by Inverter
Tension control
Pneumatic (tightening by air ratchet)
Blade Control

Cutting control
Clutch power feed
Blade feed force
0 to 140 lbs
Motors

Saw blade
5 HP
Cutting fluid pump
1/8 HP
Tilt gear motor
1/15 HP
Power Requirements

Power supply voltage
AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, Required at factory voltage setting
Power requirement
9.3 kVA
Cutting Fluid

Tank capacity
19.8 gal
Pump type
Electric
Air Supply

Air supply
87 – 145 psi
Air set pressure
80 psi
Chip disposal
Manual
Machine dimensions (W x L x H)
52.64 x 94.4 x 84.5
Table Height (Above Floor)
34.5″
Machine Weight
2,867 lbs



18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Features:

  • SPEED RANGE: 50 – 450 fpm (15 – 137 m/min) infinitely variable with inverter drive
  • FRONT-MOUNTED SPEED CONTROL: Allows blade speed to be adjusted from operator’s control station
  • FEED RANGE: 0-140 lbs (64 kgf) infinitely variable direct reading scale balance beam on the 8-Mark-II. 0-250 lbs (113 kgf) infinitely variable with control on operator’s panel and Automatic Column Return. Column feed is mechanical with Marvel clutch power feed on 8-Mark-III
  • T-SLOTTED WORK TABLE: Work area 24.25″ x 33″; table height 34.5″; four machined T-slots accept 0.625″ T-Bolts on 8-Mark-II. Work area 24.25″ x 33″; table height 38″; two machined T-slots on 8-Mark-III.
  • 0° – 3° CANTED COLUMN: Adjustable 0 or 3° forward approach angle, for notching, or increased efficiency in cutting of structural materials (only available on 8-Mark-III). *8-Mark-II is not adjustable and is available in either 0° or 3° cant*
  • MITER CUTTING: Column and blade tilt up to 45° on 8-Mark-II and up to 60° right and left of vertical on the 8-Mark-III. Optional Powered Tilt only available on the 8-Mark-III
  • QUICK-ACTION VISE: Maximum opening 18”. Jaws can be shifted to either right or left side of blade. Jaws are 6” high, 12” wide
  • AUTOMATIC STOPS: Adjustable stops can be pre-set to stop advance and return of blade, and also to stop motor at any location within the 18” travel of the blade (available on 8-Mark-III). *8-Mark-II doesn’t have auto return feature*
  • FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time
  • POWER CHIP BRUSH: Together with blade wipers and flood coolant deep blade teeth free of chips
  • EAGLE BEAK VTR BLADE: Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase



18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Optional Accessories:

Marvel Classic Colors Gray with yellow vises and Marvel logo $950
Blade Eagle Beak VTR 3/6 tooth pitch (in addition to the start-up blade) additional year of parts warranty when you purchase 10 or more blades.  $54
Blade Eagle Beak VTR 3/6 tooth pitch for M6 High Column only (in addition to the start-up blade) additional year of parts warranty when you purchase 10 or more blades. $58
M6 High Column $2,250
M7 High Jaws $550
M8 45° High Jaws $650
E5 High Jaw Vise-Complete  $1,130
E6 High Jaws-Jaws Only $820
E15 45° High Jaw Vise-Complete $1,240
E16 45° High Jaws Only $1,030
E14 Air Powered Vise $1,050
M9A Variable Vise Pressure (must order Quantity 1 or 2, E14 with this for operation of the option) $890
M17V 3° Canted Column (Standard Column) $3,090
M17HV 3° Canted Column (High Column) $4,050
SP2083 Optional High Speed Modification (ONLY 460 VOLT OPERATION) $2,990
ML2 Mist Lube-Automatic $1,400
ED2210 Unist Coolube 2210 (price per gallon) $160
E8 Length Gauge-Machine $250
8SP01337 Alignment Light Laser $1,650
8/F055 First Section Dead Roller Conveyor $1,150
8/X055 Extension Dead Roller Conveyor $830
SP1118 First Section Free Standing Dead Roller Conveyor $1,070
8/SP1040 First Section Dead Roller Conveyor w/ Manual Length Gauge $5,250
8/SP1097 Extension Dead Roller Conveyor with Gauge Rail $2,450
E10 Length Gauge-Assembly $290
E11 Coolant Pan-Conveyor $420
E12 Eccentric Lift Roller $330
E13 Additional Rollers $60
8SP01144 Remote Control Assembly $3,520
8SSP7004 Blade Guide Roller Bearing Replaces Standard (old style) (8SSP7004) $1,130
575-3-60 Volt Option $1,750
220-1-60 Volt Option $3,770
