Description

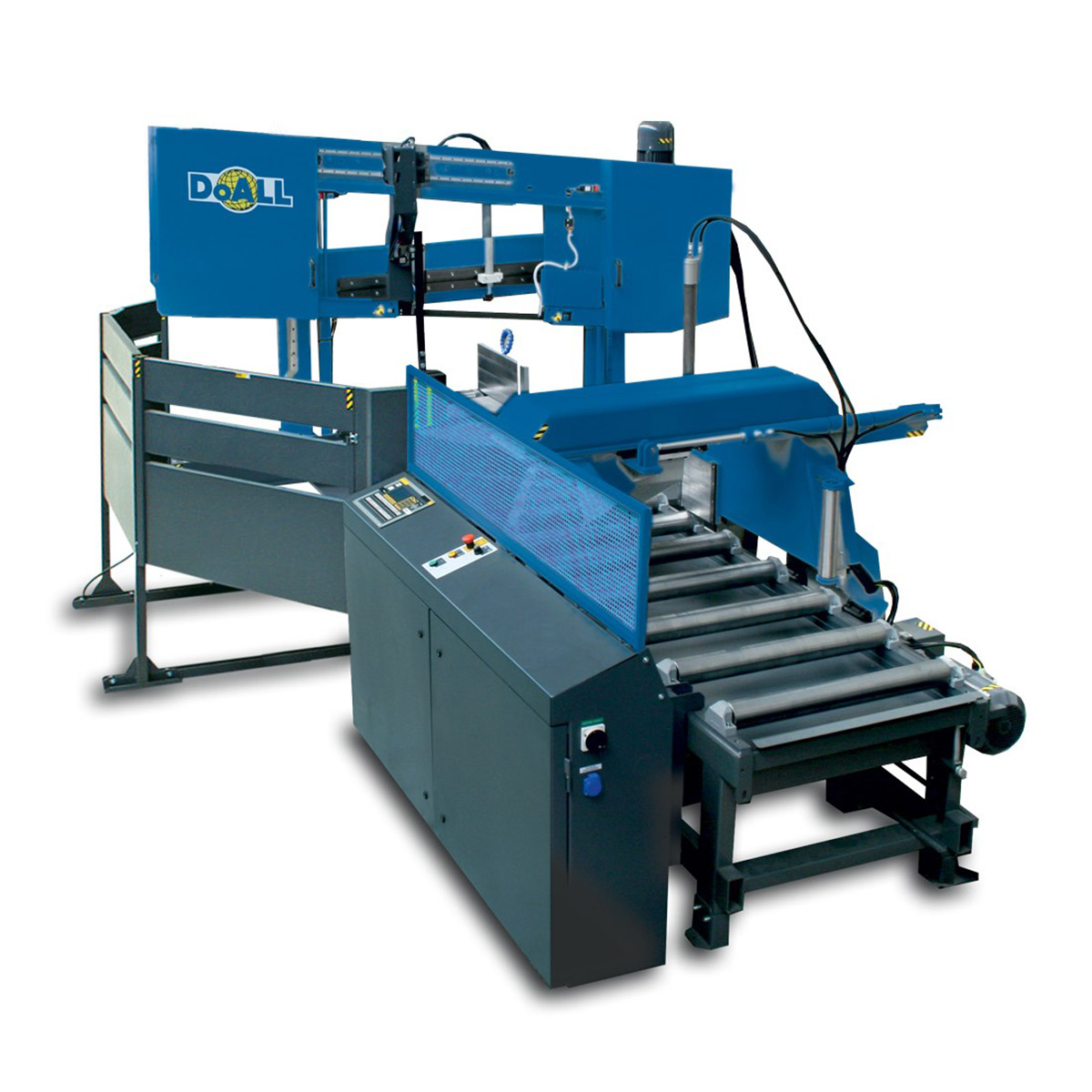

The DoALL DCDS-750CNC-A high production, horizontal StructurALL®, automatic numeric controlled indexing, dual column, dual mitering metal cutting band saw offers up to 19″ x 30″ (480x750mm) rectangular cutting capacity and 20″ round capacity. Also classified as a double column, dual swivel, the DCDS-750CNC-A is ideal for production sawing of a large variety of materials including, but not limited to, structural solids, stainless and tool steel. The 19″ x 30″ DoALL band saw has a touch display controller for easy operation. The DCDS-750CNC-A model offers high loading capacity and a variety of optional accessories. This hydraulically controlled dual column, automatic metal cutting band saw has a double-swivel head that is able to miter/angle cut at 60° both left and right. The saw blade is set at 7° cant allowing for more efficient cutting. The DoALL DCDS-750CNC-A saw is the ideal machine for a fabricator cutting multiple angles in the same work piece.
19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-A Specifications:
| Capacity | |
| Cutting capacity round tube 90° | 21″ |
| Cutting capacity round solid 90° | 9″ |
| Cutting capacity rectangle 90° | 29.5″ x 19.25″ |
| Capacity round at 45° | 5″ |
| Capacity round solid at 45° | 20″ |
| Capacity rectangle at 45° | 20″ x 19.25″ |
| Capacity round at 60° | 4″ |
| Capacity round solid at 60° | 13.75″ |
| Capacity rectangle at 60° | 13.75″ x 19.25″ |
| Saw blade (width x length) | 1.5″ x 270″ |
| Band Drive | |
| Motor HP | 7.5 Hp |
| Band speed | 50-490 fpm |
| Band tension | Hydraulic |
| Hydraulic System | |
| Motor Hp | 1 Hp |
| Reservoir size | 12 gallon |
| Coolant System | |
| Flood | Yes |
| Mist lubricator | Yes |
| Motor HP | 0.2 Hp |
| Reservoir size | 10 gallon |
| Indexer | |
| Length per stroke | 78.5″ |
| Maximum index strokes length | 393″ |
| Remnant length at 90° in auto | 19.5″ |
| Floor Space Dimensions | |
| W x L x H | 185″ x 237″ x 99″ (w/o safety light curtain) |
| Material pass height | 32″ |
| Machine weight | 8,477 lbs |
| Electrical | |
| Voltage requirement (Wye configuration) | 460V-60Hz-3ph |
| Total amp draw (FLA) | 27 amps |
Standard Equipment:
- Hydraulic dual swivel head to 60 left to 60 degrees right
- Automatic & semi-automatic cycle
- Movable console with Mitsubishi controls
- Rapid head down approach
- Spring loaded carbide faced saw guide inserts
- Programmable material height sensor
- Full stroke hydraulic vises
- Driven band cleaning brush
- Infinite band speed by variable frequency drive
- Automatic movable guide arm setting
- Cast steel band wheels
- Metered feed system
- Laser line generator
- Vertical hold downs
- Hydraulic band tension
- Recirculating coolant system
- Mist band lubricator system
- Digitally displayed angle position with hydraulic lock
- Variable vise pressure
- LED work light
- 7 degree cant design
- Saw blade guards
- Band door interlocks
- Operation and parts manuals on USB stick
- Recommended band speed chart
- One (1) complimentary DoALL bi-metal saw blade
- Complimentary DoALL cutting fluids package
19″ x 30″ New DoALL Horizontal Band Saw Model DCDS-750CNC-A Optional Accessories:
| KKR Blade deviation monitor. Loss of 1″ of width capacity ** Extended lead time | $2,443 |
| 540-H-ECK Motor driven band brush **Extended lead time | $3,123 |
| 540-HM-Drive 10 Hp motor with bevel gearbox optimal for use of carbide saw blades. **Extended lead time | $1,260 |
| 540-CLT Automatic tube of the turntable **Extended lead time | $1,763 |
| 540-H-ATB Leading edge finder. **Extended lead time | $705 |
| PCP One year subscription for external programming | $750 |
| 540-VTT Worm chip conveyor. **Extended lead time | $3,625 |
| 540-VTT-D Chip conveyor extensions for 55 gal drum. **Extended lead time | $4,645 |
| 540RDL 1000 39″ Heavy-duty output conveyor for angle cutting w/drip pan/gutter – 24.5″ cylinder width – 1142 lbs/ft capacity DoALL Strongly recommends purchasing output conveyor for cutting angles | $5,540 |
| 540RDR 1000 39″ Heavy-duty input conveyor for angle cutting w/drip pan/gutter – 24.5″ cylinder width – 1142 lbs/ft capacity | N/A |
| RDT1000/800 39″ Input or output conveyor w/drip pan/gutter – 31.5″ cylinder width – 1142 lbs/ft capacity | $3,490 |
| RDT2000/800 78″ Input or output conveyor w/drip pan/gutter – 31.5″ cylinder width – 1142 lbs/ft capacity | $5,622 |
| 500×750-RBR Single fixed vertical guide roller – 11″ cylinder heights – Attaches to RDT for operation | $560 |
| 500×750-RBRS Sindle adjustable vertical guide roller – Adjusts up to 31.5″ cylinder width – Requires RBR for operation | $713 |
| SYNC 2 Synchronization of saw feeder to power conveyor | $2,483 |
| RDM 2000/800 78″ Input or output robust conveyor w/chain driven rollers. Driving by electrical motor, worm gearbox and inverter | $18,993 |
| RDML 2000/800 78″ Input or output robust conveyor w/chain driven rollers. Connecting to 540-RDM (max 2 units per drive section) | $11,582 |
| 540-H-Qparts-PCK Wear parts service kit – contains wear plates, guides, band brushes | $1,200 |
| 226028 Magnetic wand chip remover | $195 |
| 1200008 Starter Kit of Six Pack Blades consist of 1 each Silencer Plus 3-4, 4-6, and StructurALL 2-3, 3-4, 4-6, 5-8 | $574 |
| 13410245 5 Gal. Pail of Band All 102 Semi Synthetic | $160 |
| 21200045 5 Gal. Pail of AL-2000 Mist Coolant | $240 |
