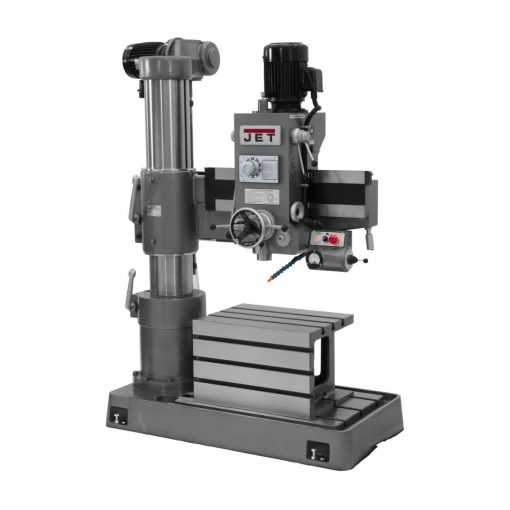

2′ x 8″ New Jet Radial Arm Drill Press Model J-720R

2′ x 8″ New Jet Radial Arm Drill Press Model J-720R specifications, features and options.

Terms: Check with Order

Description

2′ x 8″ New Jet Radial Arm Drill Specifications:

The apex of heavy-duty new jet radial arm drill press are built to create precision holes in huge pieces and enhance productivity in even the busiest commercial shops. Operation is enhanced with power spindle feed and coolant systems, safety features and ergonomic design. JET Radial Arm Drill Presses are built to deliver under even the most demanding drilling specifications, and hold material fast for superior performance

Quill Travel w/ Powerfeed Engaged (In.)

8-1/4

Quill Down Feed Rates (IPR)

3 (.002, .004, .006)

Spindle Taper (In. x TPI)

MT-4

Number of Spindle Speeds

6 (88-1500)

Drilling Capacity Mild Steel (In.)

1-1/2

Drilling Capacity Cast Iron (In.)

2

Tapping Capacity Mild Steel (In.)

3/4

Tapping Capacity Cast Iron (In.)

1

Boring Capacity Steel (In.)

2-3/8

Boring Capacity Cast Iron (In.)

4

Column Diameter (In.)

8-1/4

Distance Spindle to Column (Min.) (In.)

8-5/8

Distance Spindle to Column (Max.) (In.)

29-1/2

Travel of Head Horizontal (In.)

20-7/8

Distance Base to Spindle (Min.) (In.)

9-5/8 – 41-3/4

Arm Travel Vertical (In.)

23-13/16

Table Size (L x W) (In.)

23-5/8 x 17-1/2 x 15

Motor (HP)

3 HP, 230/460V, 3Ph

Prewired (V.)

230V, **SURCHARGE APPLIES FOR 460V RE-WIRE

Elevating Motor

1

Coolant Pump Motor

1/8

Machine Height from Floor (In.)

85-7/16

Base Dimensions (In.)

49-5/8 x 25-3/16 x 6-1/4

Overall Dimensions (L x W x H) (In.)

64 x 32 x 85

Weight (lbs)

2697

SKU #

1701



2′ x 8″ Jet Radial Arm Drill Features:

  • Power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads
  • Each spindle is made of the finest case hardened steel, for extra strength and wear
  • Our spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top
  • The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy

Standard Equipment

  • Built in work light
  • Coolant pump
  • Tool kit
  • Box table

Optional Accessories

  • TDC-375 3/8 … $34.29
  • TDC-500 1/2 … $34.29
  • TDC-501 1/2 … $41.43
  • TDC-625 5/8 … $48.57
  • TDC-750 3/4 … $120.00
  • TDC-625 5/8 … $48.57
  • TDC-750 3/4 … $120.00
