Description

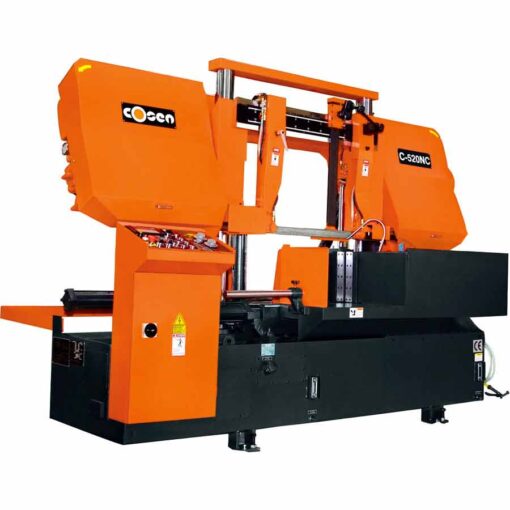

The Cosen C-520NC is a dual-column horizontal band saw with automatic NC control that cuts 20.5″ round, 20.5″ square and 20.25″ x 20.25″ rectangle. A 10 HP inverter drive runs the 20′ 11″ x 2″ x .063″ blade at 49-328 FPM, infinitely variable, with a 2 HP hydraulic unit.
The gearbox is built to take high lateral pressure, and carbide guides with bearings and rigid cast iron guide arms support the blade. It has automatic hydraulic blade tension, a cast iron hydraulic vise with split jaws to reduce burrs, a synchronized wire brush, adjustable flood coolant, Save-A-Blade, a dual-valve feed pressure and rate system and a 5.7″ touchscreen. Workbed height is 30.3″, floor space is 91″ x 95″ x 81″ and gross weight is 9,020 lbs. Call Worldwide Machine Tool at 614-255-9000 to request a quote and shipping information.
The C-520NC runs Cosen’s Smart NC-100 (SNC-100) control. Cosen says it delivers most of what an NC saw offers at a fraction of the cost. You can program up to 100 jobs with quantity and cut length, and after data entry the control compensates for kerf loss and works out the index count on its own. Cosen calls the C-520NC a rugged, dependable production machine and the perfect saw for mass production.
20.25″ x 20.25″ New Cosen Horizontal Band Saw Model C-520NC Specifications:
| Maximum Cutting Capacity Round | 20.5″ |
| Maximum Cutting Capacity Square | 20.5″ |
| Rectangular Capacity (H x W) | 20.25″ x 20.25″ |
| Blade Speed | 49-328 FPM |
| Blade Size (L x W x T) | 20′ 11″ x 2″ x .063″ |
| Blade Motor | 10 HP |
| Hydraulic Motor | 2 HP |
| Coolant Motor | 1/4 HP |
| Workbed Height | 30.3″ |
| Floor Space | 91″ x 95″ x 81″ |
| Gross Weight | 9020 Lbs |
| SKU | 4057 |
20.25″ x 20.25″ New Cosen Horizontal Band Saw Model C-520NC Features:
- Hydraulic Dual Column Design
- Gearbox designed to accept high lateral pressure (no thermal distortion)
- Inverter blade drive system which allows infinitely variable blade speeds
- 5.7″ HMI touchscreen
- Adjustable flood coolant system
- Motor driven, synchronized wire blade brush
- Carbide blade guides and bearing provides additional blade support
- Rigid cast-iron guide arms
- Automatic hydraulic blade tensioning device
- Cast-iron hydraulic vise
- Split vise jaw for reduced burr
- Save-A-Blade feature
- Precision feed pressure and feed rate dual valve system for optimal cutting performance
- Computer controlled multiple indexing up to 999″ max length
Optional Accessories:
- Chip Auger … $3095.00
- Top Clamps … $3095.00
- Vise Pressure Regulator … $1295.00
