Description
20″ x 12″ New DoAll Vertical Band Saw Model 2012-VH features a hydraulically powered work table with 12″ table stroke. These upright, variable hydraulic controlled, metal cutting band saws are among the most versatile sawing machines on the market today. The 20″ x 12″ DoAll vertical contour band saw is widely used in machine shops, maintenance departments, schools and other areas where cutting a wide variety of materials is required.
20″ New DoAll Vertical Band Saw Model 2012-VH Specifications:
| Specifications | |
| Capacity | Inches |
| Maximum width | 20″ |
| Maximum height | 12″ |
| Table tilt positive | 10° |
| Table tilt negative | 45° |
| Saw Blade | |
| Band width capacity | 1/8″ – 1″ |
| Band length | 154″ |
| Band Drive | |
| Motor | 3 Hp |
| Band Speed | Low range: 30-320 fpm High range: 550-5,500 fpm |
| Band Tension | Manual |
| Hydraulic motor | 1.5 Hp |
| Hydraulic tank | 3 gal |
| General | |
| Floor Space Dimensions W x L x H | 56″ x 44″ x 80″ |
| Material pass height | 39″ |
| Machine weight | 1,900 lbs |
| Electrical | |
| Voltage requirement (Wye configuration-must specify at order placement) | 208V, 230V, or 460V-60Hz-3ph |
| Total Amp Draw (FLA) | 14.3 (208) 13.7 (230) 9.8 (460) |
20″ New DoAll Vertical Band Saw Model 2012-VH Standard Equipment:
- Table tilt to 45 degrees negative-10 degrees positive
- Table 26.5″ x 33.5″
- Two T-Slots 1/2″
- 20″ aluminum flanged, tapered band wheels with rubber tires
- Upper wheel adjustment 3″
- Operator controls mounted on column
- One set of saw guide blocks w/carbide backup for bands 1/8″ to 1″
- One set of metal saw guide inserts for bands 1/4″, 3/8″, and 1/2″, 3/4″, and 1″
- Band wheel brush
- Variable frequency band drive
- Work light
- Hydraulic reservoir
- Manual band tension with indicator

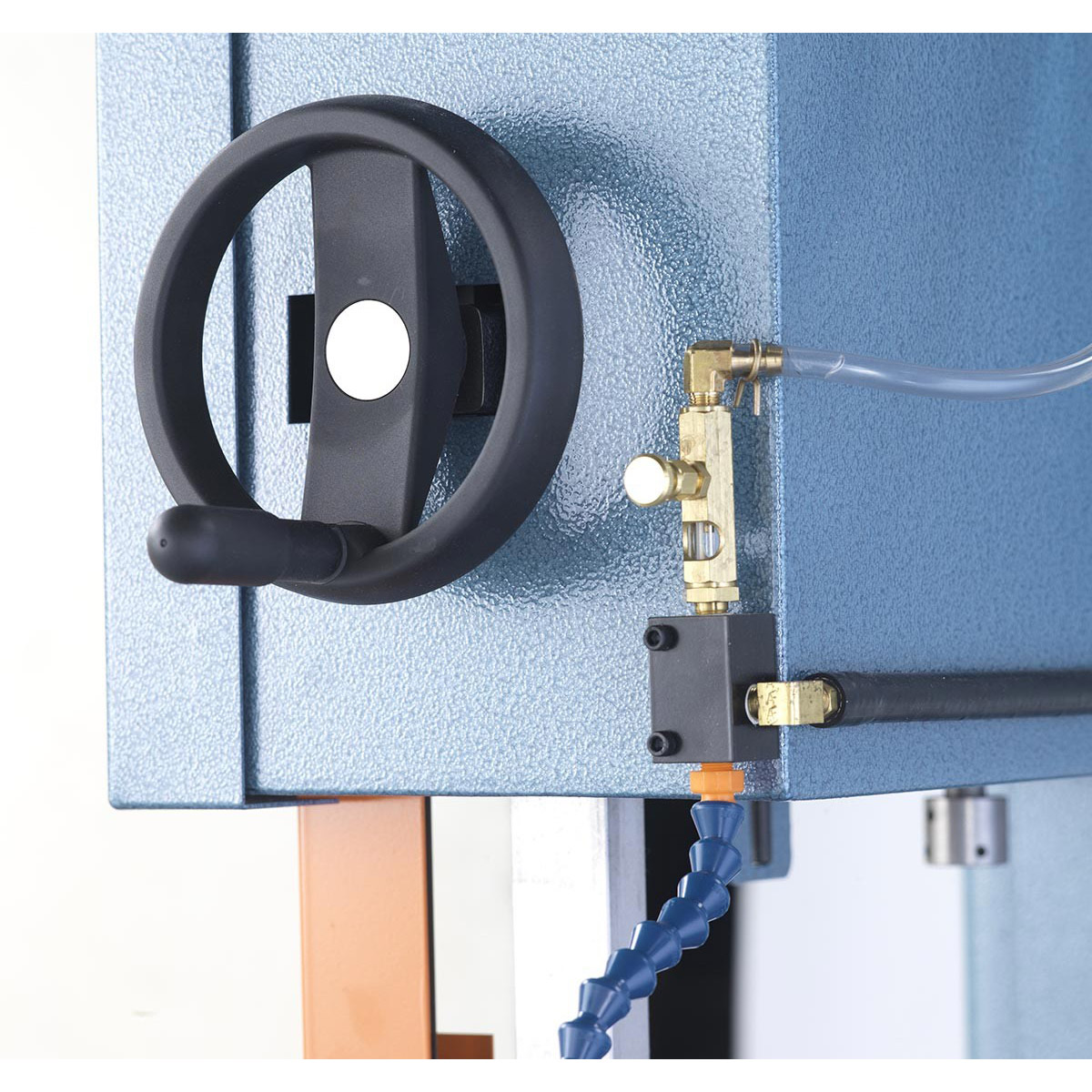

- Post elevating hand wheel
- Chip box
- Chip blower (plant air required)
- Saw blade guards
- Band door interlocks
- Operation and parts manuals on USB stick
- Recommended job selector
- One (1) complimentary DoAll Bi Metal saw blade
- Insert setting gages with wrench and trunnion wrench
20″ New DoAll Vertical Band Saw Model 2012-VH Optional Accessories:
| 299473 Extended 18″ hydraulic table stroke assembly | $7,339 |
| HMD-36 Extended traverse work table: 1100 lb. capacity, four (4) 2″ T-Slots, 34 x 42″ table area, reduces work height by approximately 4″ | $27,611 |
| 40363 Work holding vise to fit table “T” slots | $6,702 |
| 299551 DBW-15 welder with grinder, column mounted, for 240 volts and below | $4,119 |
| 299550 DBW-15 welder with grinder, column mounted, for 460 volt | $4,119 |
| Extended work height 6 inch increments-call for quote | Call |
| 5-013007 Work holding jaw with handles | $404 |
| 420288 Band mist lubricator (80 psi plant air required) | $1,860 |
| 402080 Disk cutting attachment: capacity 2-1/2″ to 30″ diameter | $2,235 |
| 226028 Magnetic wand chip remover | $195 |
| 1012862 Flood coolant | $5,263 |
| 80161 Extra set of heavy duty (high speed) saw guide blocks with carbide backup for 1/4″ to 1″ bands | $933 |
| Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width | |
| 80041 1/4″ | $98 |
| 80042 3/8″ | $98 |
| 80043 1/2″ | $98 |
| 80044 5/8″ | $98 |
| 80045 3/4″ | $98 |
| 80046 1″ | $98 |
| Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width | |
| 80100 1/4″ | $583 |
| 80101 3/8″ | $583 |
| 80102 1/2″ | $583 |
| 80103 5/8″ | $583 |
| 80104 3/4″ | $583 |
| 80105 1″ | $583 |
| 80047 1″ | $2,163 |
| 299998 Additional USB stick of manuals | $92 |
| NRTL A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards | $3,500 |
| SVC CHARGE LABOR Five (5) hours installation and operator training | $750 |
| Warranty DoALL Cut Above 10 Year Warranty Annual Investment | $840 |
| DoALL Saw Blades and Coolant | |
| 1200025 Starter Kit of Six Pack Blades Consist of 3 each Silencer GP 5-8, and 1 of each Silencer GP 6, 6-10, 8-12 | $310 |
| 21200045 5 Gal. Pail of AL-2000 Mist Coolant | $240 |
| 24000001 Tool-Saver lubricant stick | $14 |
