Description

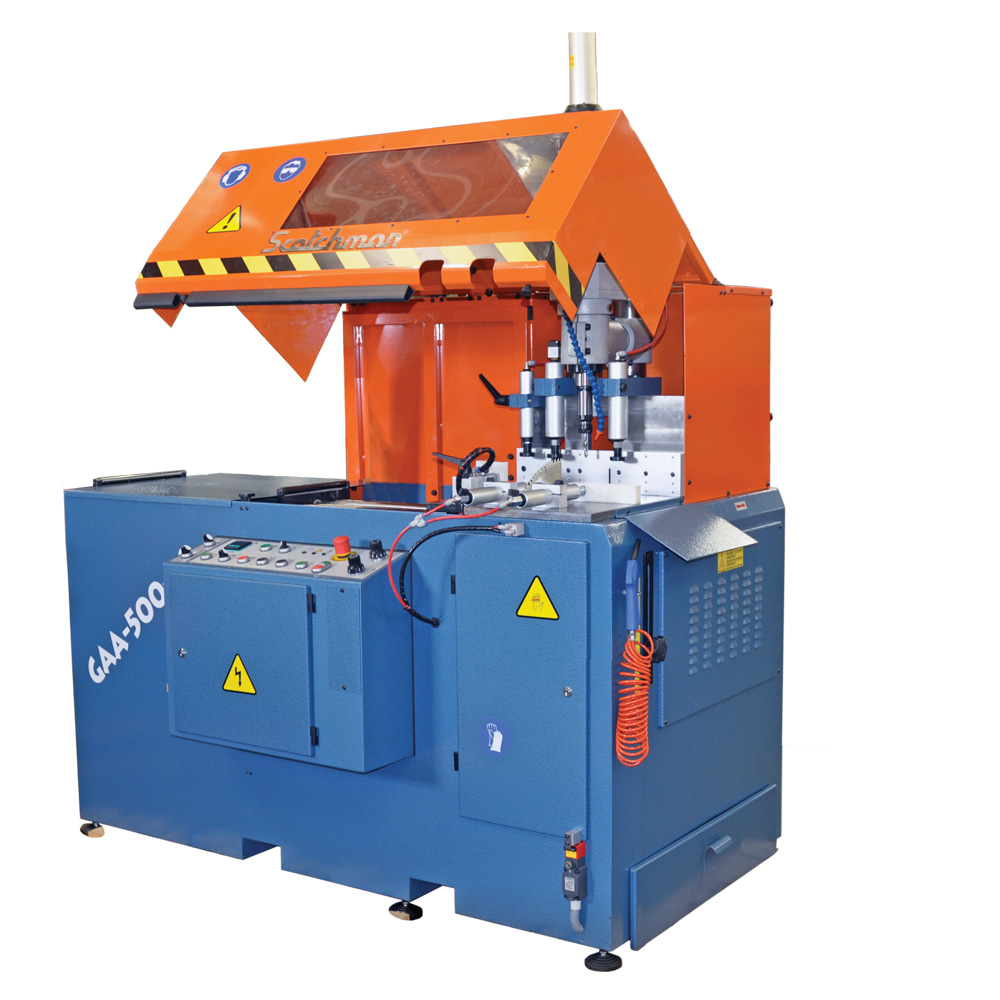

20″ New Scotchman Circular Cold Saw Model GAA-500 Specifications:
| Maximum Cutting Capacities NF (Non-Ferrous & PVC) | |
| Round 90º | 6″ |
| Square 90º | 6″ x 6″ |
| Rectangle 0º | 10″ x 3″ |
| Length Tolerance |
± 0.006″ per index |
| Cutting Speed | 3,000 rpm |
| Motor Rate | 7.5 HP |
| Motor Options (factory wired) specify at time of order | 230/460v, 3 ph |
| Air Pressure | 90 psi |
| Maximum Blade Diameter | 500mm |
| Arbor Bore | 50mm |
| Width | 75″ |
| Depth | 42″ |
| Height (top of hood) | 60-1/4″ |
| Height (floor to table) | 38-5/8″ |
| Shipping Weight (may vary) | 1,300 lbs |
20″ New Scotchman Circular Cold Saw Model GAA-500 Standard Features:
- Large capacity non ferrous saw
- Automatic or Semi-automatic operation
- Shuttle feed design cuts at 90º only
- Automatic feeder: 20″ x 2 strokes (20″ + 20″ max double advance)
- Adjustable length selector from 0.200″ to 20″
- Adjustable cutting & feeding speeds
- Three horizontal pneumatic clamps
- Three vertical pneumatic clamps
- Powered hood lift
- LED lighting
- Mist coolant lubrication system
- Emergency stop button
- One gallon coolant
- One 500mm diameter carbide blade
- One blade wrench
- Air hose
- Base designed as a chip collection with two chip extraction ports
- Adjustable leveling pads
- Drill/Tap (20mm) and CNC features (optional)
- Meets CE standards
- Warranty: Two years on parts
- Made in Spain
