Description

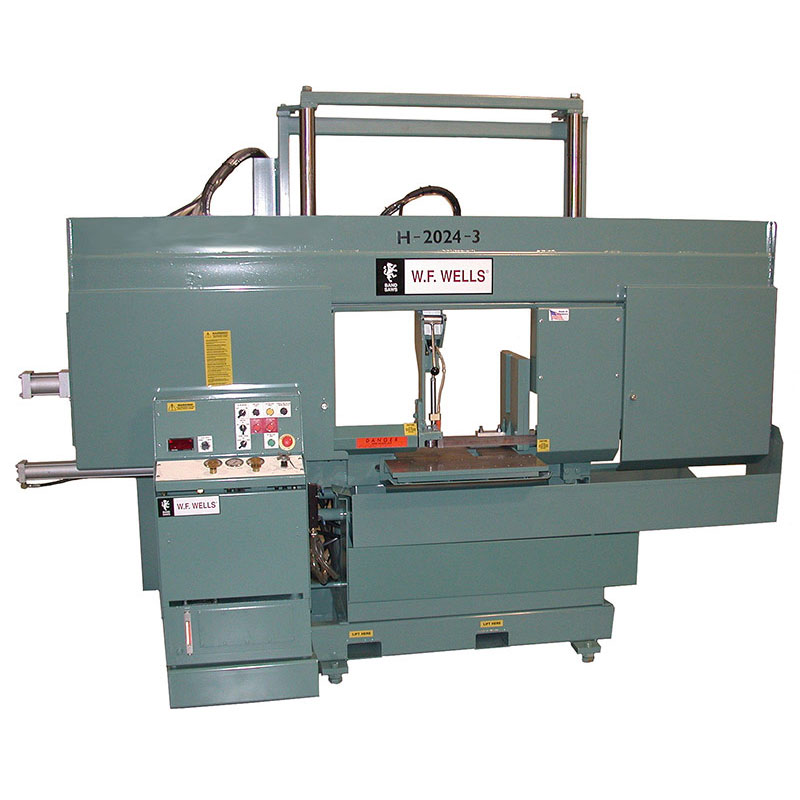

All 20” x 24” New W.F. Wells Horizontal Band Saw Model H-2024-3 are proudly made in the U.S.A. for Quality, Reliability, and Repairability.
W.F. Wells, Inc manufactures twin post, semi-automatic and CNC fully-automatic horizontal metal cutting bandsaws of the guillotine type. Models are available that will cut from 9 to 60 inch in diameter. W.F. Wells, Inc also manufactures hinge type horizontal bandsaws that will cut 7 to 10 inch diameter stock. A large variety of specialty saws for cutting unusual sizes and materials are also available. Parts are also available for W.F. Wells, Inc saws produced as far back as the 1940’s.
20” x 24” New W.F. Wells Horizontal Band Saw Model H-2024-3 Specifications:
| Capacity | Rectangular at 90º 20″ High x 24″ Wide, Round at 90º 20″ Diameter |
| Weight Capacity | 5,000 lbs. |
| Blade Speed | 60 – 500 SFPM |
| Blade Size | 1-1/2″ x 0.050 x 20’4″ |
| Blade Guide | Roller Guides with Carbide Inserts |
| Blade Tension | Hydraulic |
| Bandwheel Size | 22″ |
| Vise | Full Stroke Hydraulic, 15″ |
| Blade Drive | 10 HP, AC Vector Drive |
| Sawing Force | 0-750 lbs. |
| Coolant Capacity | 15 Gallons |
| Hydraulic Capacity | 20 Gallons |
| Hydraulic Drive | 2 HP Motor |
| Work Height | 35″ |
| Shipping Weight | 3,900 lbs |
| Electrics | Wired to NFPA 79 Machine Tool Standards |
| Machine Dimensions | 136″(L) x 50″(W) x 110″(H) |
| Voltage | 208-60-3/230-60-3/460-60-3/575-60-3 |
20” x 24” New W.F. Wells Horizontal Band Saw Model H-2024-3 Optional Accessories:
| 0052410 Hydraulic Holddown, Manual | $3,250 |
| 0056707 Automatic Length Stop Assembly | $475 |
| 0053201 Discharge Worktable, 20″W x 48″L with Stock Stop | $3,050 |
| 0056045 Discharge Worktable, 24″W x 48″L with Stock Stop | $3,675 |
| 0052409 Work Light, Wired In | $375 |
| 0056040 Blade Break/Stall Switch | $675 |
| 0010867 Hydraulic Chip Conveyor, Auger Style | $6,375 |
| 0051045 High Speed Drive & Guides (1-1/4″ Blade) 400-3000 SFPM | $8,850 |
| 0010887 Outboard Vise | $11,250 |
| 0010884 Outboard Vise with Hydraulic Holddown | $13,975 |
| 0010749 Electric Powered Conveyor 24″ x 10′ | $11,875 |
| Free Standing Roller Stock Conveyors, 6″ Centers | |
| 0050252 21″ x 5′ x 5,000 lbs. Cap. Distributed Weight | $1,850 |
| 0050251 21″ x 10′ x 10,000 lbs. Cap. Distributed Weight | $2,875 |
| 0050264 24″ x 5′ x 5,000 lbs. Cap. Distributed Weight | $3,250 |
| 0050265 24″ x 10′ x 10,000 lbs. Cap. Distributed Weight | $4,250 |
