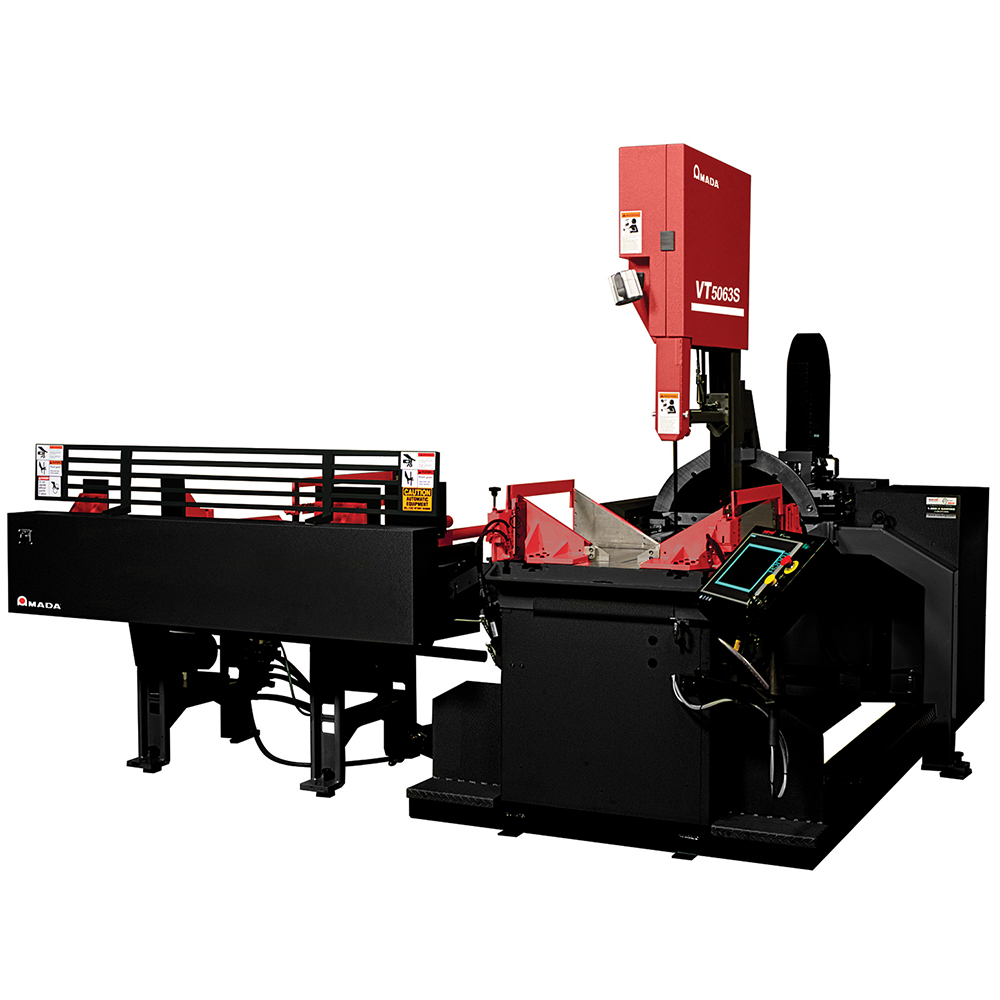

20” x 25” Amada Vertical Tilt-Frame Band Saw Model VT5063S/SW (2150APC) USA Made!

Terms: Check with Order


SKU: 33760 Categories: ,


20” x 25” Amada Vertical Tilt-Frame Band Saw Model VT5063S/SW Specifications:

Cutting Capacity (Standard Column with 3° Forward Cant)
Round at 0° (diameter)
Round at 45° (diameter)
Round at 60° (diameter)
Rectangle at 0° (W x H)
20″ x 25″
Rectangle at 45° (W x H)
20″ x 17″
Rectangle at 60° (W x H)
20″ x 11.25″
Maximum vise opening
Work load capacity
8,000 lbs
Saw Blade
Blade size (L x T x W)
18′ 2″ x 0.050″ x 1-1/2″
Blade speed
30-500ft/min by Inverter
Tension control
Blade Control
Cutting control
Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade feed force
0 to 300 lbs
Vise Operation
Main Vise (Optional second vise is available to install)
Hydraulic, Full Stroking with 9-12″ High x 15″ Wide 60° Faceplates
Saw blade
10 HP
Hydraulic pump
5 HP
Cutting fluid pump
1/8 HP
Tilt gear
1/15 HP
Power Requirements
Power supply voltage
AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Power requirement
Cutting Fluid
Tank capacity
60 gal
Pump type
Hydraulic pump capacity
10 gal
Chip disposal
Standard Feed Vise
Index mechanism
Shuttle vise
Material index
AC Servo Motor and Ball Screw
Feed stroke
Remnant length
23″ Plus Length of Parts
Optional Shuttle Table
Feed mechanism
Automatic Servo Drive Index with Linear Guide System
Feed stroke
8, 13, and 18ft (It must be specified when ordering)
Machine dimensions (W x L x H)
94.7″ x 99.2″ x 90.8″
Table Height (Above Floor)
Machine Weight
2,867 lbs



  • SPEED RANGE: 30 to 500 FPM (9 to 152 m/min), 7.5 HP standard for 2125APC with 10 HP optional (modification M1) and 10 HP standard for 2150APC. Blade speed can be automatically set when material is selected.
  • TILTING COLUMN: For miter cutting up to 60° left and right of vertical. Now with Electronic Tilt, the column is electrically powered with encoder feedback and PC3 touch screen controller for precision miter positioning.
  • 0° OR 3° CANTED COLUMN: Standard 3° forward approach angle, for increased efficiency in cutting of structural materials. NOTE: If the non-canted 0° option is required with a 1.25” blade, the 2150M or 2150APC must be purchased. The 2150M or 2150APC order must specify that the 1.25” blade is required with the non-canted option.
  • BLADE GUIDE: Patent pending Rotating Easy Load Combination Carbide and Ball Bearing Roller guides with self-tensioning design.
  • UPPER BLADE GUIDE ARM: Hydraulically positioned and locking, controlled by selector switch at operator’s station.
  • FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time.
  • WORK-REST ROLLERS: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.
  • VISES: Hydraulic, full stroking with 9-1/2” high x 15” wide 60° faceplates. Removable face plates without tools to allow for both miters and 90° at the blade.
  • PC3 PROGRAMMABLE CONTROL®: Provides a Programmable Logic Control Unit with a 12” color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.
  • AUTOMATIC BAR FEED: The patented automatic bar feed design features a 48″ stroke length with indexing speeds of up to 60fpm. The bar feed is servo driven with encoder feedback, and combines precision double ball screws with preloaded recirculating linear guides, resulting in positioning accuracy of +/- .005″ per index. Optional long stroke shuttles.
  • EAGLE BEAK VTR BLADE: Eagle Beak VTR blade 17′ 6″ long x 1.25″ wide for 2125APC and 18′ 2″ long x 1.5″ wide blade for 2150APC, both with 3/6 tooth pitch. These are the standard blades that are included with machine purchase.


Optional Accessories:

F3: Outboard Vise
SGA1: Smart Guide Arm
F4: Second Machine Vise
M9A: Variable Vise Pressure
PC3SBN: Bullet Nose Cutting
M4A: Opposite Hand Work Entry
Automatic Extended Feed Systems
Custom Material Handling Equipment
M8M/M8: Chip Conveyor – Manual or Powered
F8/F8A: Hydraulic Hold Downs – Machine/Shuttle
