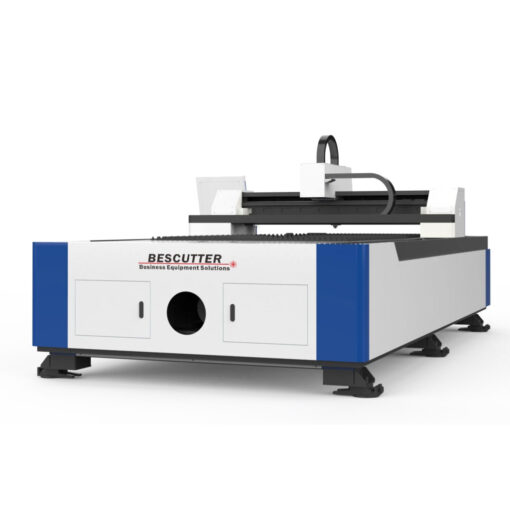

2,000 watt 5′ x 10′ BesCutter Accu fiber laser metal sheet cutting

2,000 watt 5′ x 10′ BesCutter Accu fiber laser metal sheet cutting. Call for a complete quote.

Terms: Check with Order

Description

2,000 watt 5′ x 10′ BesCutter Accu fiber laser metal sheet cutting.

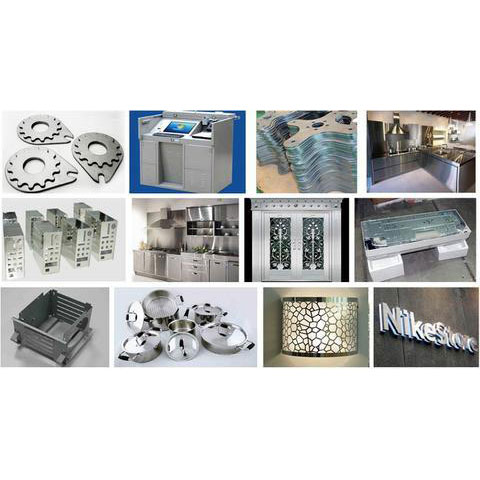

  • Unparalleled versatility for cutting various metals, including low carbon steels, stainless steels, galvanized sheets, as well as some high reflective metals, such as aluminum and Brass
  • Large cutting table handles sheets up to 50 sq. ft.
  • Quality Cut Up to 3/8″ steel with the 1000W model
  • Laser fully contained in fiber, no need for regular beam alignment


2,000 watt 5′ x 10′ BesCutter Accu fiber laser metal sheet cutting Specifications:

  • Working Area: 59″ x 118 ” (1500 mm x 3000 mm)
  • Z-axis Travel 4″ (100mm)
  • Laser Wattage: 1000 W/ 1500 W / 2000 W
  • Continuous Wave fiber laser, 1.07 um wavelength
  • Beam Quality: <0.373 mrad
  • RayCus Laser Generator RFL-C1000 RFL-C1500 or RFL-C2200
  • Optional IPG laser generator upgrade, call for pricing
  • Laser Head: RayTools or WSX
  • Control System: CypCut BCS 100
  • Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable
  • Driving System: Servo Motors
    XYZ Servo Motors: Schneider or Delta Y 2x850W, X 1x750W, Z 1x400W
  • High-Quality Rack and Pinion Guide Rails
  • Working Area: 59″ x 118 ” (1500 mm x 3000 mm)
  • Z-axis Travel 4.7″ (218mm)
  • Laser Wattage: 750W/ 1000 W/ 1500 W / 2000 W  Continuous Wave fiber laser, 1.07 um wavelength Beam Quality: <0.373 mrad
  • RayCus Laser Generator RFL-C750, RFL-C1000, RFL-C1500 or RFL-C2200
  • Optional IPG Laser Generator Upgrade, Call for Pricing
  • Laser Head: RayTools or WSX
  • Control System: CypCut BCS 100
  • Cooling System: TeYu CWFL750, CWFL1000, CWFL-1500, CWFL-2000 or Comparable
  • Driving System: Servo Motors
  • XYZ Servo Motors: Schneider or Delta Y 2x850W, X 1x750W, Z 1x400W
  • High Quality Rack and Pinion Guide Rails
  • Positioning accuracy: <= 0.02 mm/m
  • Max. no load speed: 3200 inch/min
  • Reducer: Motovario
  • Pneumatic Control: SMC or AIRTAC
  • Energy Chain: Igus
  • Electrical Element: Schneider Electric
  • Industry Computer: Advantech (YanHua)
  • Machine Power Supply: Three Phase 220 V or 480W,
  • Power Consumption: 15-20 kW
  • Gross Weight: 5500 lbs
  • Air-Assist: Oxygen or Nitrogen
  • Warranty: Two years
  • Dedicated USA technical support from qualified technicians and engineers
  • Free Eye Protection Goggles. Customers need welders’ screen for additional protection.
