Description

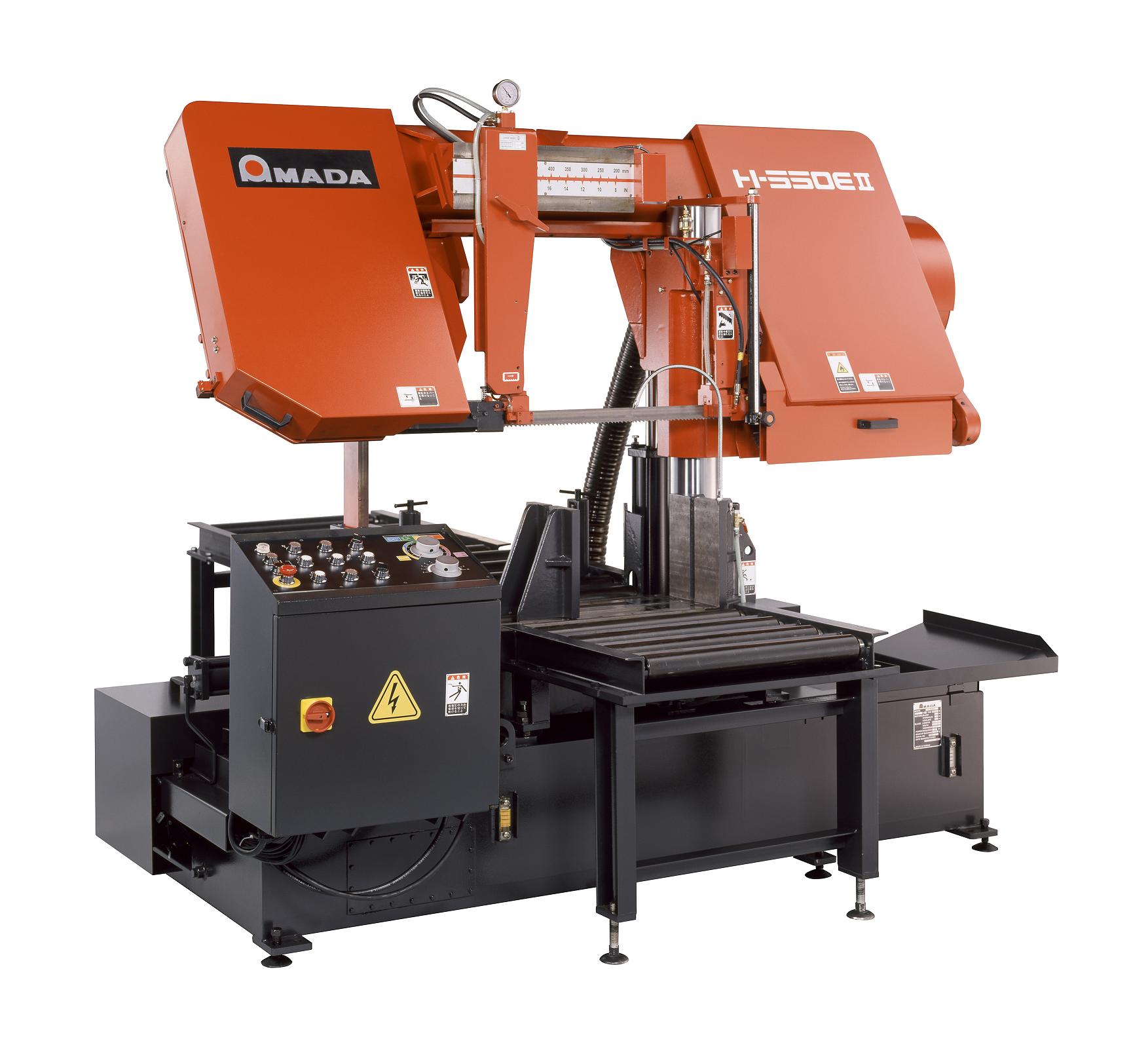

22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Specifications:
| Cutting Capacity | |
| Round (diameter) | 7.87″-18.9″ |
| Rectangle (W x H) | 21.65″ x 18.9″ |
| Work Load Capacity | 4,409 lbs |
| Saw Blade | |
| Blade Size (L x T x W) | 16′ x 0.050″ x 1.5″ |
| Blade Speed | 56, 82, 115, 148, 180, 213, 246 ft/min |
| Tension Control | Hydraulic |
| Blade Control | |
| Top Limit Setting | Manual Setting |
| Cutting Control | Hydraulic Pressure & Flow Control Valve |
| Vise Operation | |
| Type | Main Split Vise |
| Control | Hydraulic Full Stroke Cylinder |
| Motors | |
| Saw Blade | 7.5 HP |
| Cutting Fluid Pump | 1/2 HP |
| Hydraulic Pump | 2 HP |
| Power Requirement | |
| Power Supply Voltage | AC220V±10%, 3 PH, 60 Hz, Required at factory voltage setting |
| Power Requirement | 10 kVA |
| Cutting Fluid | |
| Tank Capacity | 21.1 gal |
| Pump Type | Electric |
| Hydraulic | |
| Tank Capacity | 18.5 gal |
| Pressure Setting | 498 psi |
| Chip Disposal | Chip Conveyor |
| Machine Dimensions (W x L x H) | |
| Head-Up Position | 107.2″ x 72.8″ x 80.9″ |
| Head Down Position | 107.2″ x 72.8″ x 68.7″ |
| Table Height | 26.7″ |
| Machine Weight | 4,629 lbs |
22″ x 19″ New Amada Horizontal Billet Band Saw Model H550EII Features:
- PRESSURE FLOW VALVE: The cutting process can be optimized just by setting up the Pressure Flow Valve to the target “material, shape, and size”.
- CUTTING DEPTH SETTING UNIT: The blade descends horizontally. Tooling and dovetail grooving can be easily handled by adjusting a cutting end height.
- LIGHT BEAM: The light beam unit allows for easy alignment of marks. One-touch operation of the manual feeder unit moves workpieces back and forth. In addition, the user-friendly double vise system is installed to clamp materials.
