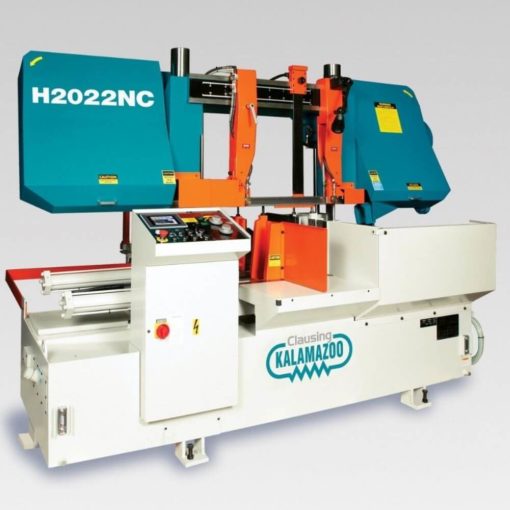

22″ x 20.5″ New Clausing Horizontal Bandsaw Model H2022NC

Price On Request
F.O.B. Factory
Terms:  Check with Order

Options

Description

22″ x 20.5″ New Clausing Horizontal Bandsaw Model H2022NC Specifications:

Motor 7.5 Hp, 230v 3 Ph
Hydraulic pump motor 2 Hp
Hydraulic oil capacity 10.5 gallons
Blade speeds (variable speed) 66-328 fpm
Blade size (W x T x L) 2″ x 0.06″ x 238″
Blade tension Hydraulic
Coolant Recirculating
Coolant capacity 22.5 gallons
90º cutting capacity Round 20.5″
Square 20.5″
Rectangular 22″ x 20.5″
Bundle cutting width 9.84″ x 18.5″
Bundle cutting height 5.9″ x 12.4″
Feed length/index 19.8″
Max. feed 198″
Length 125″
Width 89″
Height 89″
Bed height 27.2″
Net weight 6,930 lbs.
Shipping weight 7,326 lbs.



22″ x 20.5″ New Clausing Horizontal Bandsaw Model H2022NC Features:

  • Oversized hydraulic cylinder
  • Hydraulic shuttle vice assembly
  • Inverter controlled infinitely variable speed
  • Carbide blade guides with roller bearings
  • Two additional guides to support the blade from the top
  • Automatic hydraulic blade tensioning
  • Power driven blade brushes
  • Integral coolant system
  • Smart NC-100 technology programmable up to 100 different jobs
  • Easy recall and execution of stored parts
  • Automatic shutoff after preset number of cuts or when out of stock
  • 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
  • Automatic kerf loss compensation & computer controlled multiple indexing
  • Precision feed pressure & feed rate
  • Bundle/single cutting mode switch
  • Automatic height setting feature
  • Hydraulic front and rear vises
  • Cast iron vises with replaceable hardened wear plates
  • Discharge table with built-in coolant return
  • Blade slippage or breakage detection
  • Adjustable cut-off stock fence
  • Additional flushing hose
  • Bi-metal saw blade
  • Built in work light
  • Tool box, leveling pads and an additional wire brush
  • Operation and parts manual
  • Two (2) year limited warranty



22″ x 20.5″ New Clausing Horizontal Bandsaw Model H2022NC Optional Accessories:

P10      Stock Stand Assembly 21”-30” Height $345.00
VP20NC         Vise Press Regulator (factory installed) $1,385.00
CLAUS2-A12K          Transformer (208 volt to 230 volt) $1,020.00
CLAUS1-A12K          Transformer (460 volt to 230 volt) $1,440.00
CM2001N      Chip Conveyor $2,110.00
CM2002N      Bundle Cutting Attachment $1,770.00
SA26   H.D. Roll Table 25” x 10’ x (24”-32”) 3” Ctr. (10K cap) $3,240.00
SA27   H.D. Roll Table 25” x 5’ x (24”-32”) 3” Ctr. (10K cap) $1,890.00
CSR1   SAWZIT 1 Gallon Coolant $40.00
CSR5   SAWZIT 5 Gallon Coolant $145.00
