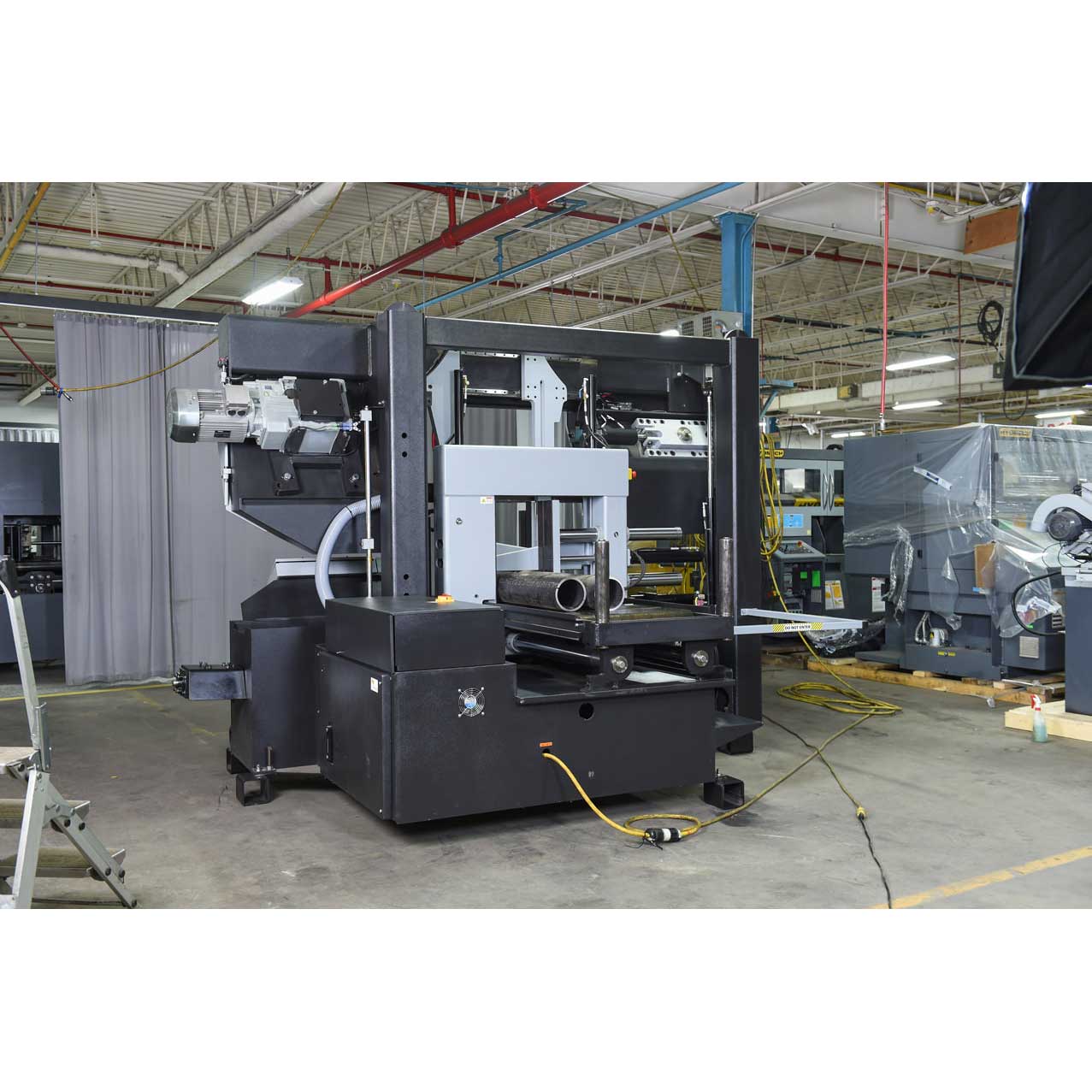

22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Specifications:
| Capacity | |
| 90° rectangle (h x w) | 22″ x 22″ |
| 90° round | 22″ |
| 90° square | 22″ |
| 6° canted head rectangle (h x w) | 20″ x 22″ |
| 6° canted head round | 20″ |
| 6° canted head square | 20″ |
| Blade Drive | 10 HP |
| Blade Speed | 40-300 SFM |
| Blade Size | 2″ x 22′ 6″ |
| Automatic Multi-Indexing | 0-34″ |
| Table Height | 31″ (35″ w/ canted head) |
| Voltages Available | 208, 240, 480, 575 v |
| Weight | 12,500 lbs |
| Dimensions (w x l x h) | 141″ x 88″ x 92″ |
| Coolant Tank Capacity | 30 Gallons |
| Hydraulic Tank Capacity | 9.5 Gallons |
Standard Features:
- One piece design – no alignment necessary

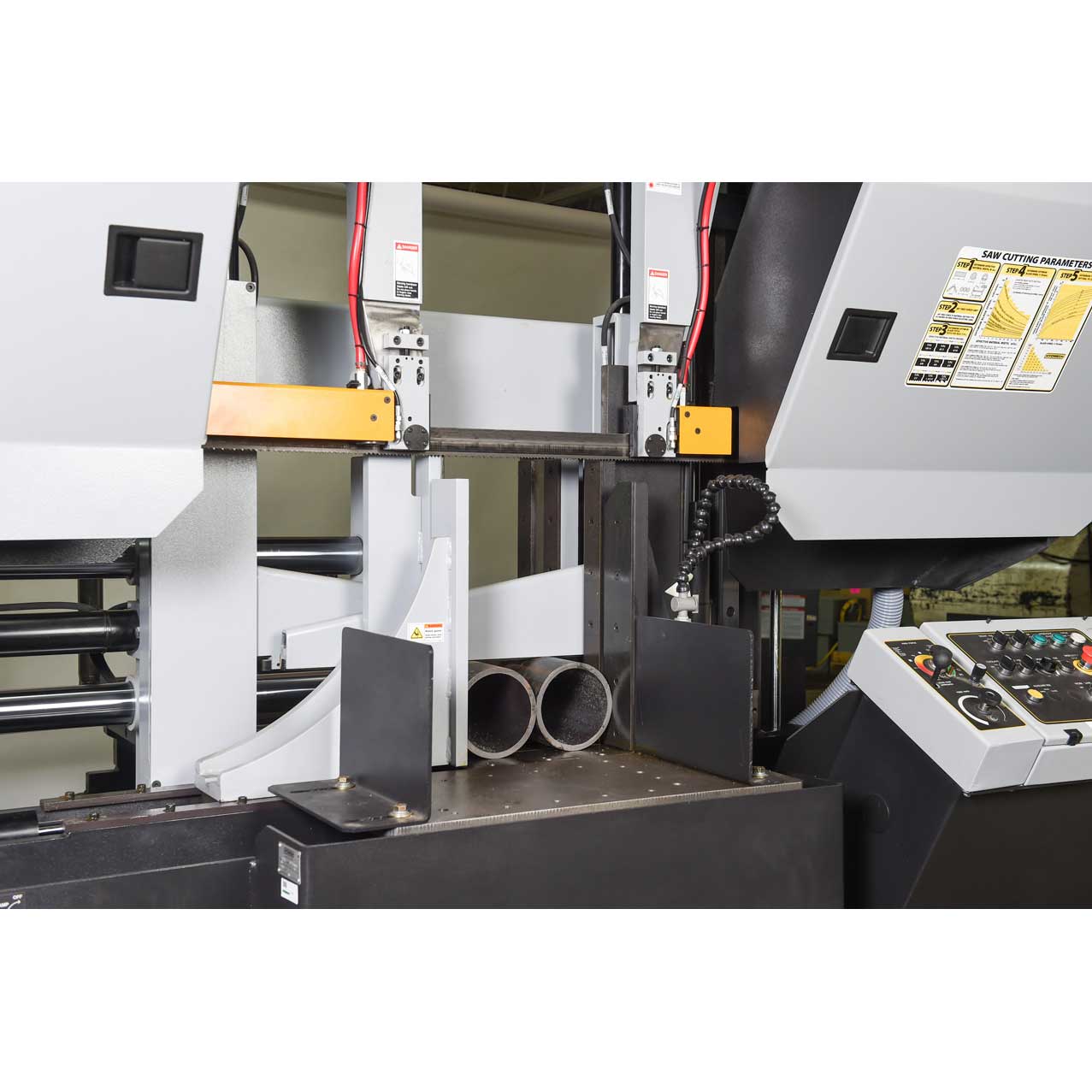

- Spilt front vise
- Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.
- Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
- Hydraulic positive down feed
- 10 HP VFD. True direct blade drive – no belts/pulleys
- Full capacity, full stroking hydraulic vises
- Blade chamber separates material from cut part
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Cast iron band wheels

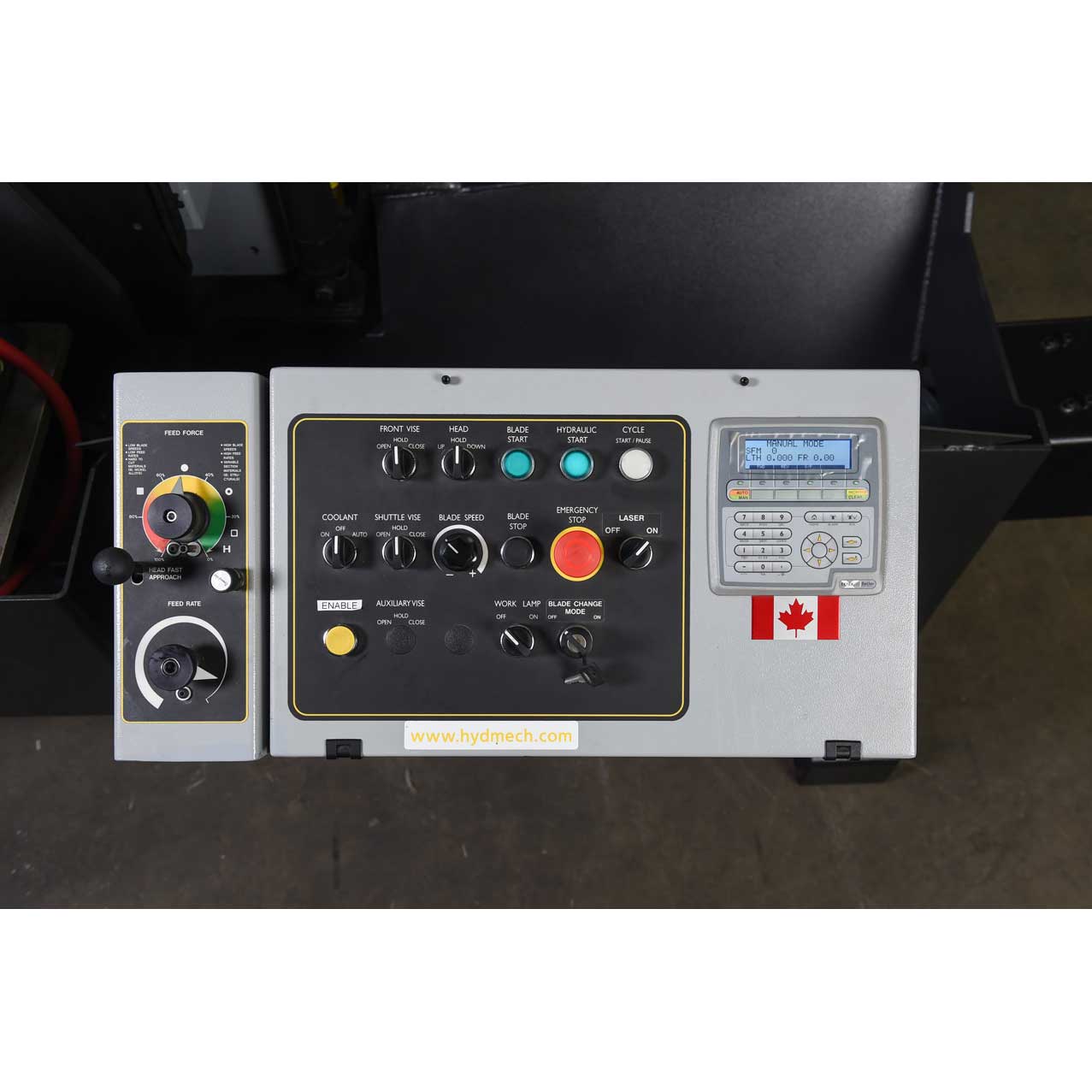

- 7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.
- Replaceable blade brush
- Robust steel base
- Automatic chip removal auger
- Out of stock switch
- Easy access electrical panel and hydraulics
- Blade breakage switch
- Hydraulic band tensioning with digital readout
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Variable vise pressure
22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Optional Features:
- Full capacity hydraulic overhead bundling
- 6° canted head
- Blade deviation
- Mist lubrication
- Outboard vise clamping options available upon request
- Remote console – 15’ cord
- Roller discharge table
- Vertical alignment rollers

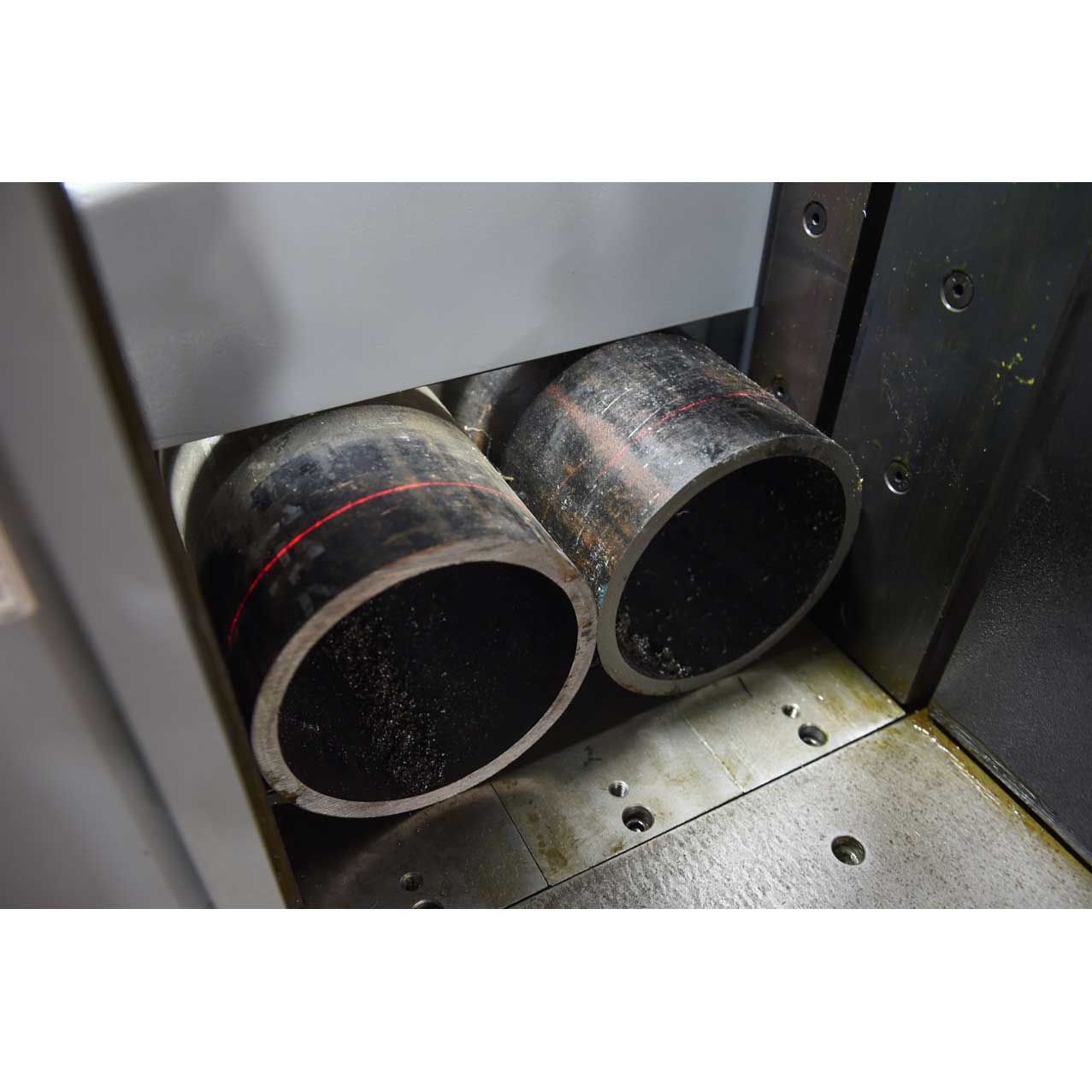

- Laser light
- Idler conveyors
- Powered conveyors
22” x 22” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-22A Optional Accessories:
| 13035145- 6°canted head (20”h x 22”w capacity. Changes table height to 35”) | $7,900 |
| 13025005 Full capacity hydraulic overhead bundling – two vises | $6,700 |
| 13035602 Mist lubrication system (shop air required) | $1,900 |
| 13035076 Laser light | $1,600 |
| 821656 Remote console – 15’ cord | $5,100 |
| 814058 Roller discharge table | $4,800 |
| 13025025 Vertical alignment rollers – on machine | $1,600 |
| 13035306 Blade deviation monitor | $4,100 |
|
Idler conveyors-Standard head (26″W x 31″H)
|
|
| 18020261 Type 2 – 5’ in feed/ out feed idler conveyor | $4,500 |
| 18020269 Type 2 – 10’ in feed/ out feed idler conveyor | $8,900 |
|
Idler conveyors-Canted head (26″W x 35″H)
|
|
| 18025261 Type 2 – 5’ in feed/ out feed idler conveyor | $4,500 |
| 18025262 Type 2 – 10’ in feed/ out feed idler conveyor | $8,900 |
| Powered conveyors-Standard head (26″W x 31″H) | |
| 18020263 Type 2 – 5’ in feed/ out feed powered conveyor | $11,200 |
| 18020264 Type 2 – 10’ in feed/ out feed powered conveyor | $15,500 |
| 18099785 Additional 10’ power add on section | $10,500 |
| 18092000 Pneumatic clutch | $4,100 |
| Powered conveyors-Canted head (26″W x 35″H) | |
| 18020270 Type 2 – 5’ in feed/ out feed powered conveyor | $11,200 |
| 18020271 Type 2 – 10’ in feed/ out feed powered conveyor | $15,500 |
| 18099788 Additional 10’ power add on section | $10,500 |
| 18092000 Pneumatic clutch | $4,100 |
|
Accessories for both idler and powered conveyors
|
|
| 18099091 Filler plates – for 5’ conveyor | $1,700 |
| 18099092 Filler plates – for 10’ conveyor | $3,400 |
| 18099084 Coolant drip pan – for 5’ conveyor | $1,800 |
| 18099083 Coolant drip pan – for 10’ conveyor | $3,600 |
| 18099080 Vertical alignment roller | $2,200 |
| 18099095 Fork lift cut outs | $2,200 |
