Description
The DC-560NC high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. They offer automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
22″ x 24″ New DoAll Horizontal Band Saw Model DC-560NC Specifications:
Capacity at 90° rectangle | 22″ x 24″ |
Capacity at 90° round | 22″ |
Capacity at 45° rectangle | N/A |
Capacity at 45° round | N/A |
Saw blade (width x length) | 2″ x 260″ |
Band Drive | |
Motor HP | 10 Hp |
Band speed | 52-430 fpm |
Band tension | Hydraulic |
Hydraulic System | |
Motor HP | 3 Hp |
Reservoir size | 34 gallon |
Coolant System | |
Flood | Yes |
Mist lubricator | No |
Motor HP | 1/4 Hp |
Reservoir size | 37 gallon |
Indexer | |
Length per stroke | 15.75″ |
Maximum index strokes length | 141.75″ |
Remnant length | 7.875″ (non bundle) |
Floor Space Dimensions | |
W x L x H | 127″ x 84″ x 85″ |
Material pass height | 33.5″ |
Machine weight | 9,923 lbs |
Electrical | |
Voltage requirement (Wye configuration) | 230V-60Hz-3ph |
Total amp draw (FLA) | 46 amps |
22″ x 24″ New DoAll Horizontal Band Saw Model DC-560NC Standard Equipment:
- Programmable Logic Controller for all machine functions
- Feed rate/feed force saw head control
- Infinite band speed controlled variable frequency drive

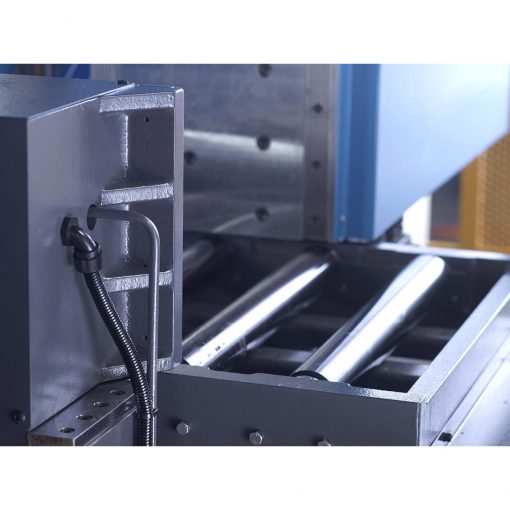

- Hydraulic retractable shuttle vice material indexer on chrome rails
- Rapid and creep speed index vice control
- Multi-step full stroke cylinder with a split front vice clamping fore and aft of the sawblade
- Variable vice pressure control
- Vertical hydraulic cylinders with hold down fixtures
- Hydraulic set, zero clearance, coolant through, carbide faced saw guide inserts with lead in rollers
- Adjustable power driven band cleaning brushes with coolant flush line attached
- Halogen work light
- Blade shock proof device
- Flushing hose for machine wash down and auxiliary coolant nozzles
- Hydraulic band tension
- Hydraulic adjustable speed auger design chip conveyor
- Saw band break/stall motion detector shut off switch
- Band door interlocks
- Operation and parts manuals on USB stick
- One 6.5 foot (2 meter) idler input conveyor
- Maintenance tool kit
- Complimentary DoALL Cutting Fluids package
- One (1) complimentary DoALL bi-metal saw blade
22″ x 24″ New DoAll Horizontal Band Saw Model DC-560NC Optional Accessories:
231551 10 ft Medium-duty idler conveyor 24″ between frames. Roller capacity 850 lbs. | $2,743 |
231550 5 ft Medium-duty idler conveyor 24″ between frames. Roller capacity 850 lbs. | $1,663 |
229830 Out of square detection | $4,116 |
299998 Additional USB stick of manuals | $95 |
Laser Laser line | $1,302 |
NRTL A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards | $3,500 |
Warranty DoALL Cut Above 10 Year Warranty Annual Investment | $2,240 |
1200018 Starter Kit of Six Pack Blades Consist of 1 each Silencer Plus 2-3, 3-4, 4-6 and Penetrator 1.5-2, 2-3, 3-4 | $1,009 |
13410245 5 Gal. Pail of Band All 102 Semi Synthetic | $160 |
