Description

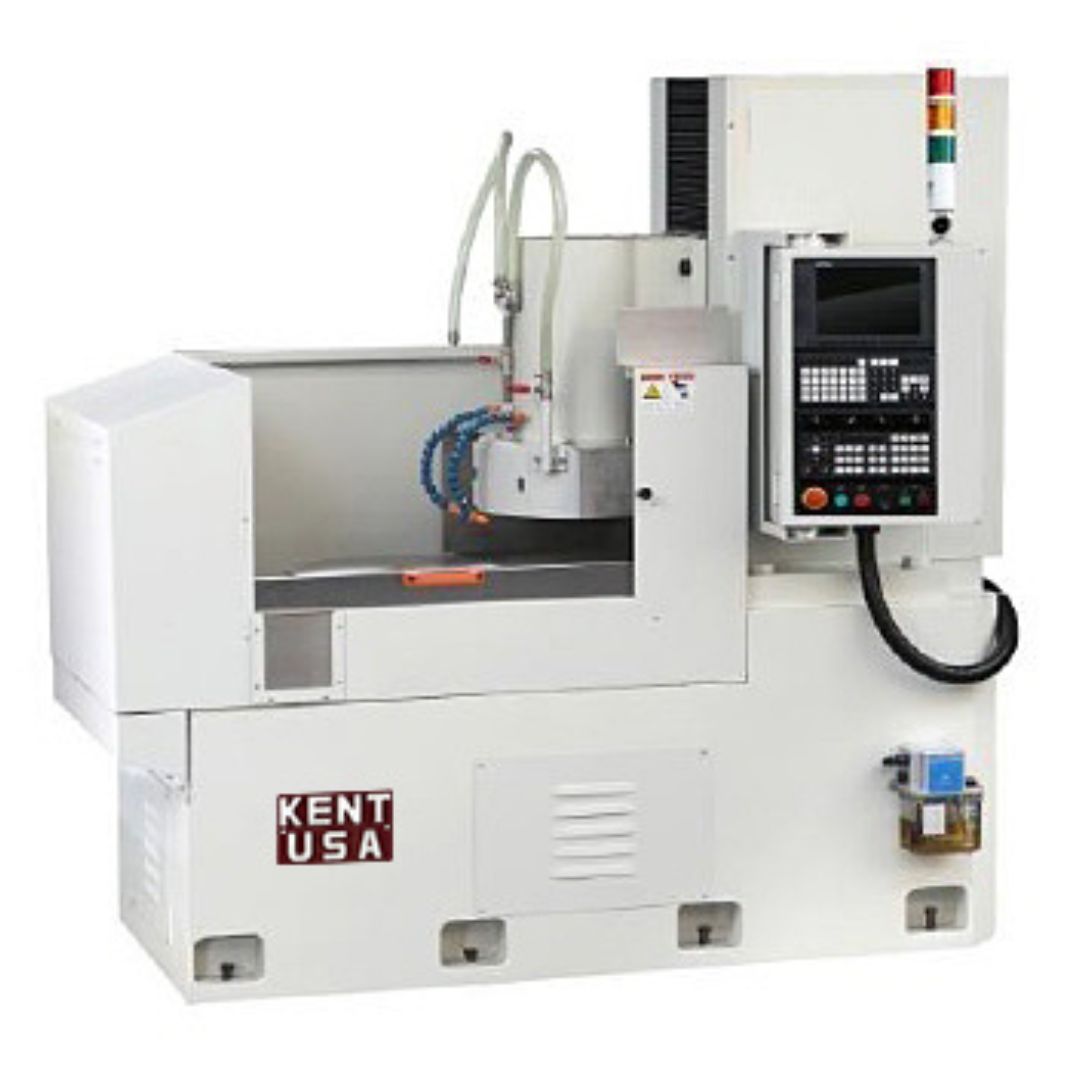

23.6″ New Kent USA Rotary Surface Grinder CHS-V600A Specifications:
| Rotary Magnetic Chuck Diameter | 23.6″ | |
| Load of Rotary Table | 485 lbs | |
| Distance of Table Surface to Spindle Surface | 15.4″ | |
| Speed of Rotary Table | 5-60 RPM | |
| Table Motor | 2 HP | |
| Max Grinding Radius | 14.17″ | |
| Spindle Speed | 1150 RPM | |
| Wheel Size (Dia. X Width X Bore) | 2” x 1” x 4.7″ (10 pcs) | |
| Spindle Motor | 10 HP | |
| Z Travel | 1.34 HP | |
| Z Feed Rate | 0~11.8”/min | |
| Z Motor | AC servo 1 HP | |
| Y Travel | 15.7″ | |
| Y Feed Rate | 0~39.4” | |
| Y Motor | 1 HP | |
| Floor Space | 78.7” x 59” x 82.7” | |
| Weight | 7936 lbs |
23.6″ New Kent USA Rotary Surface Grinder CHS-V600A Standard Features:
- The major machine parts are manufactured from high-quality cast iron (FC30) for maximum structural stability, and heat treated for maximum deformation reduction and equipment longevity.
- The column slideways surfaces are hardened and precision ground to ensure high accuracy. The vertical travel is transmitted through a precision ball screw, combined with counter-balance weight for outstanding vertical feed accuracy and motion stability.
- The spindle is directly driven by a motor and is dynamically balanced. It runs on high-precision bearings for longer service life and high-quality grinding.
- The table is driven by a hydraulic motor combined with the use of a throttle valve providing variable table running speed.
- The cooling system is equipped with two motors: One for delivering cutting fluid and the other is used for flushing workpieces on the table. The cooling system employs a magnetic dust separator to keep fluid clean and ensure smooth circulation.
- Fully enclosed splash guard effectively avoids dust and cooling fluid splashing.
23.6″ New Kent USA Rotary Surface Grinder CHS-V600A Standard Accessories:
- Electromagnetic chuck
- Segment grinding wheel
- Diamond dresser with base
- Working lamp
- Toolbox with tools
23.6″ New Kent USA Rotary Surface Grinder CHS-V600A Optional Equipment:
- 200L Coolant tank
- 1/4 HP pump
- Magnetic separator
- Paper filter
