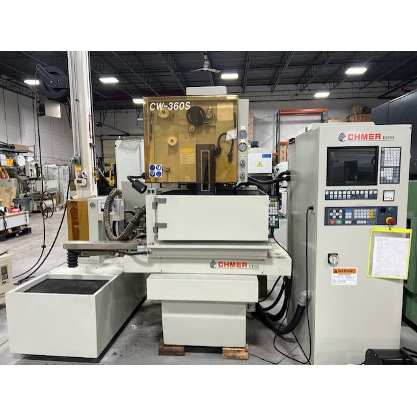

Name: 25 Amp Refurbished CHMER CW360S Wire EDM
SKU: 41810

Description

The name CHMER (“shim-mer”) sounds funny, but CHMER is a very serious player in the EDM world. They have been in business for over 40 years building EDMs and their high-speed mills. CHMER has five manufacturing facilities and includes their 24,000 sq. meter manufacturing facility in Taichung, Taiwan. Like EDM Network, CHMER’s philosophy is to do what they do best. They build their own power supplies and CNC controls, right down to the PC board-level. They build the machine tools and use only high-quality components on them, such as Intel PC, Panasonic AC Servo Motors, and Servo Packs, Heidenhain and Fagor Glass Scales and Grundfos pumps, etc. The R&D facility is constantly ensuring that CHMER is at the forefront of EDM technology. CHMER is ISO 9000 and ISO 14000 certified. They also write all their own software. They are a totally independent manufacturing company.

25 Amp Refurbished CHMER CW360S Wire EDM Specifications:

Manufacturer/Model	CHMER CW-360S Wire EDM – Submerged
Machine Body	Axis Travels: X: 14.1″ (360mm) Y:9.84″(250mm) Z:8.6″(220mm)
Auxiliary Table Travel	U:2.4”(60mm) V:2.4”(60mm)
Maximum Workpiece Dimensions	31.5” x 22” x 8.5” (800 x 560 x 215mm)
Maximum Workpiece Weight (Lbs.)	660 (300kg)
X-Y Axis Feed Rate	Max. 800 mm/min.
Drive System (5 Axis)	AC Servo Motor (Panasonic) w/ Precision Rotary Encoders
Minimum Table Resolution	.000040” (.001mm)
Wire Diameter (Range)	.006 – .012“ (.15 – .3mm)
Manufacturers Rates Cutting Speed	24 sq. in/hr w/ .010” Brass Wire (Megacut D)
Maximum Wire Feed Rate	300 mm / sec.
Wire Tension	300 – 2500g
Maximum Taper Angle	14.5º / 3.25 inches (Max taper w/special guides 30º)
System Dimensions	82.6” x 110.2” x 80.7” (2,100 x 2,800 x 2,050mm)
Net Weight	5,500 lbs. (2,500kg)

Dielectric System:

Tank Capacity: 340 Liters (90 gallons)

Filter Element: Paper (2)

Ion exchange Resin: 14L (Submerged)

Conductivity Control: Auto

Fluid Temperature Control: Standard

Net Weight (Without Water): 300 kg. (660 lbs)

Outside Dimensions: 36” x 60” x 36”

Power Supply Unit (CHS):

Circuit System: Power MOS Transistor

Maximum Output Current: 25 Amps

IP Select: 10 Steps

Off Time Select: 50 Steps

CNC Unit

Data Input: Keyboard, RS-232C, USB
Display: 15” TFT
Control System: Pentium Control with Panasonic AC Servo and Precision Rotary Encoders – closed loop.
Control Axis: 5 Axes
Setting Unit: 0.0001 mm Minimum input
Maximum Command Value: 9999.999 mm
Interpolation: Linear / Circular
Command System: ABS / Inc.
Machining Feed Control: Servo / Constant Feed
Scaling: 0.001 – 9999.999
Auto 2nd Cut System: Retrace and Auto-Change Machining Data
Outside Dimensions/Weight: 33” D x 24” W x 74” H / 990 lbs
Total Power Input: 3 Phase 220V ± 5% / 13 kVa

Features

AC Servo Drivers (5 Axes) Panasonic
Industrial PC Controller, Pentium PC (Intel), 32 Meg Dram w 1 Gig Storage
Dialog Control for Easy Operation (15” TFT Display)
High-Speed Power Supply (HS)
Fine-Finish Circuitry (OV)
Automatically thread or rethread through the slot or start hole, submerged < 10 seconds.
Corner Control
Special wire annealing and wire cutting system (patent)
AWT wire diameter available in 0.15, 0.2, 0.25, & 0.3mm
Wire guide diamond eyelet type
Maximum workpiece thickness for AWT 8” open, 10” in kerf.
Self-cleaning and self-lubricating lower arm seals to reduce maintenance and increase machining accuracy
Operational panel include characters, operation, and function keys
AC Servo motors and drivers (Panasonic)
Automatic return to location
Built-in lubrication system, automatic
Easy to adjust carbide power bar
3D or single step simulation
Self-diagnostics and machining history
Display of four coordinates in one time
On-site training

Accessories

Ion exchange resins (3)
Paper Filter (2 pcs.)
Upper/Lower flushing nozzles (1 set)
Diamond guide (diameter .026 mm) (2 pcs.)
Energizing plates (carbides) (2 pcs.)
Brass Wire (dia. 0.25mm x 5 kg (1 spool))
Tools (1 set)
Water chiller (1 set)
Lubrication system (1 set)
Machine set-up for 220/3/60 volts

Options:

Automatic Voltage Regulator: $3,500.00
Transformer for Voltages over 220: $1,250.00
2 Piece Ruler Set w/ Clamps: $2,950.00

About Us

Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.

We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
