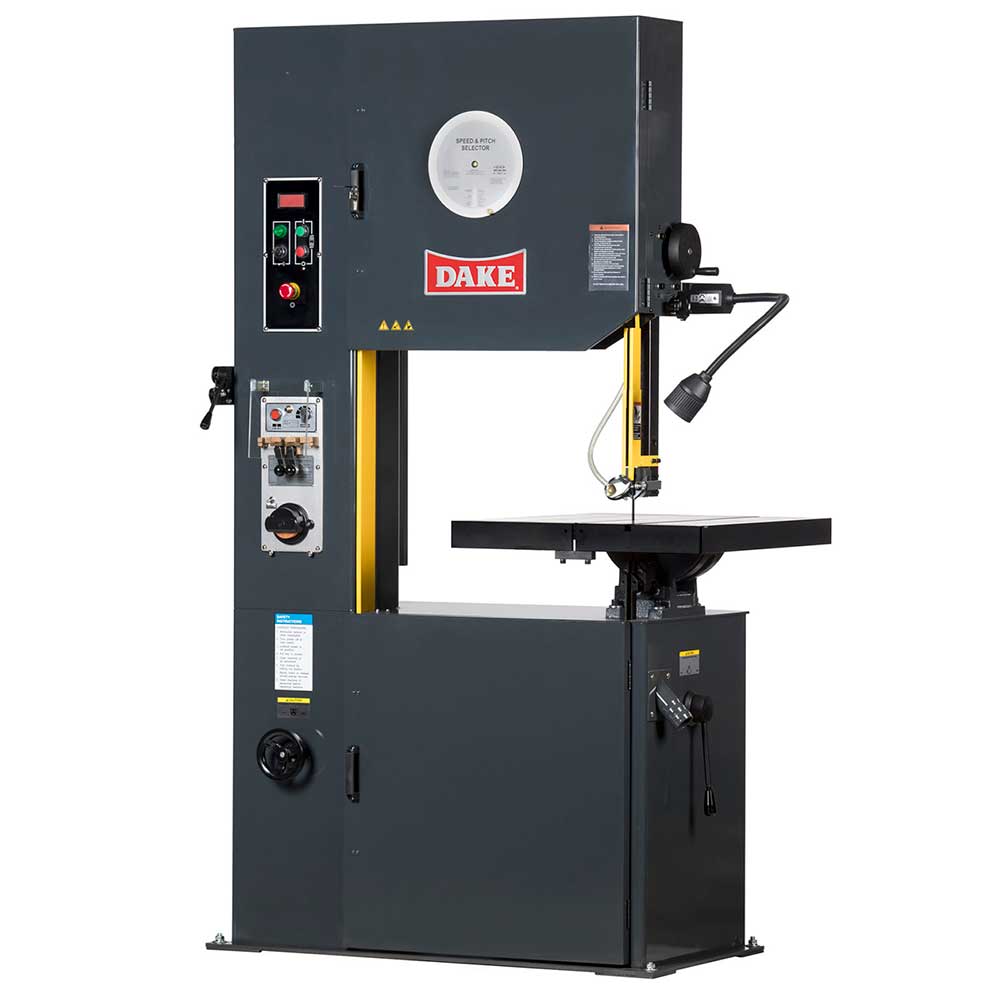

26″ New Dake Vertical Band Saw Model V-26E

26″ New Dake Vertical Band Saw Model V-26E for sale at Worldwide Machine Tool view specifications, features, options and photos below.

Request a quote or call 614-255-9000

Options

Description

This heavy duty vertical bandsaw is designed for large production pieces. A 26″ capacity, power feed table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, rip fence, miter gauge, and 4 cutting modes. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

26″ New Dake Vertical Band Saw Model V-26E Specifications:

Part Number 987032-2
Horsepower 3
Voltage 220V/440V, 3 phase
Blade Width 1/4″ – 1″
Blade Length 184-1/4″
Blade Speed 550-5,000 fpm
Worktable Travel Distance 12″
Band Wheels Number 2
Band Wheels Size 26-1/4″
Throat Size (Band to Column) 26″
Maximum Work Height 13″
Worktable Dimensions 23-1/2″ x 27-1/2″
Worktable Tilt 45º R / 10º L
Worktable Height 39-3/8″
Machine Height 84″
Machine Floor Space 51″ x 32″
Weight 1,540 lbs



26″ New Dake Vertical Band Saw Model V-26E Features:

  • Variable speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range.
  • Electronic Power Fed Table. Torque motor driven with rack and pinion.
  • Heavy cast table with chip clearance grooves.
  • Low voltage controls, main power lock out switch and door limit switches.
  • Rip Fence, miter gauge, circle cutting attachment.
  • Built in blade welder with grinder and shear to easily fix broken blades.
  • Blade speed / pitch selector guide and digital tachometer.
  • Work light comes standard for increased visibility.

26″ New Dake Vertical Band Saw Model V-26E Standard Equipment:

  • Heavy duty frame
  • Rip fence
  • Work light
  • Blade welder/grinder/shear
  • Speed indicator (digital readout)
  • Blade tension indicator
  • Digital tachometer
  • Chip blow & blade brush
  • 1 standard blade

26″ New Dake Vertical Band Saw Model V-26E Optional Accessories:

  • 440V with transformer
  • Mist system
