Description

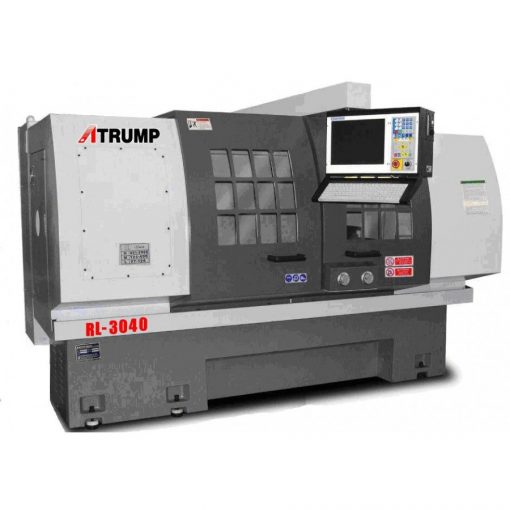

30″ x 40″ Atrump CNC Wheel Lathe Model RL3040 Specifications:
Basic Dimension | |
Height of center | 15″ |
Swing over bed | 30″ |
Swing over cross slide | 16″ |
Distance between centers | 40″ |
Bed | |
Width of bed ways | 13.78″ |
Spindle | |
Spindle nose mounting | STD: D1-8 |
Spindle bore | STD: 3 3/8″ |
Taper of spindle bore | M.T. #7 (sleeve M.T. #5) |
Range of spindle speeds (rpm) | Auto shift high: 2200~491 Middle: 490~125 Low: 124~27 |
Longitudinal travel (Z-axis) | 31.5″ |
Cross slide travel (X-axis) | 11.6″ |
Rapid travel/cutting feed rate | 270/120 ipm |
Tool | |
Max. size cutting tool | 1″ |
Additional Accessories Information | |
Power requirement | 15 KVA 3 phase 208V to 230V (max) |
Type of oil for | Way oil: Mobil Vectra #2 Oil chiller: Mobil 1 gear Pneumatic oil: Air tool oil |
Coolant capacity | 3.5 gallons |
30″ x 40″ Atrump CNC Wheel Lathe Model RL3040 Features:
- Centroid T-400 control with 15″ touch screen LCD
- 10 HP spindle motor, D1-8, 3 3/8″ through hole spindle
- Max 2,200 rpm spindle speed with auto shift 3 gear range
- Hardened & ground with Turcite-B coating guide way
- C5 double nut precision ball screws hardened & ground for high accuracy and long lasting
- FC30 Meehanite casting main frame with annealed & stress relieved for long term reliability
- 100% laser tested for positioning accuracy & repeatability
- Massive one piece casting construction for maxim cutting performance
- 14″ wide bed ways design to provide maximum rigidity & stability
- Tool box & tools
- Coolant system
- Central lubrication system
- Built-in quartz work light
- Digitizing package with software
- Dual hand wheel for manual operation
30″ x 40″ Atrump CNC Wheel Lathe Model RL3040 Standard Accessories:
- Tools & box
- Leveling bolts & plate
- 240 GB solid state hard drive
- Parts manual machine
- Full guarding
- Single position quick change tool post
- Auto lube system
- Halogen work light
- Shop floor programming/conversational
- USB 2.0 port
- Coolant system
- 12″ 3 jaw chuck
- 15″ color LCD
- RS-232 interface
- Electronic operation Centroid
- Digitizing package with software
- 1 day of training and set-up, on-site
