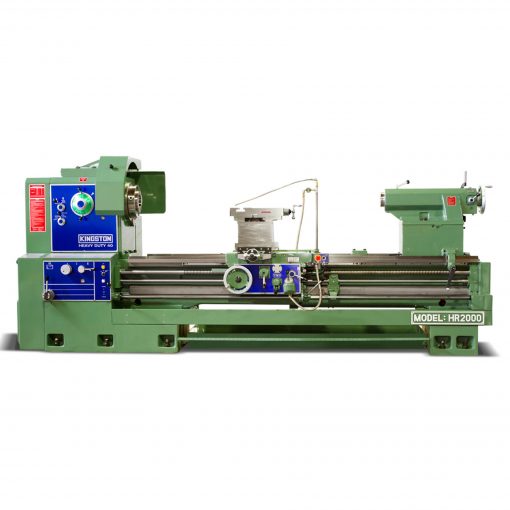

30″ x 80″ New Kingston Lathe for sale

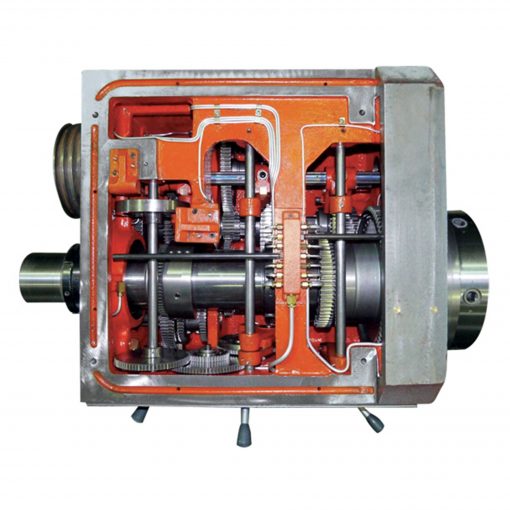

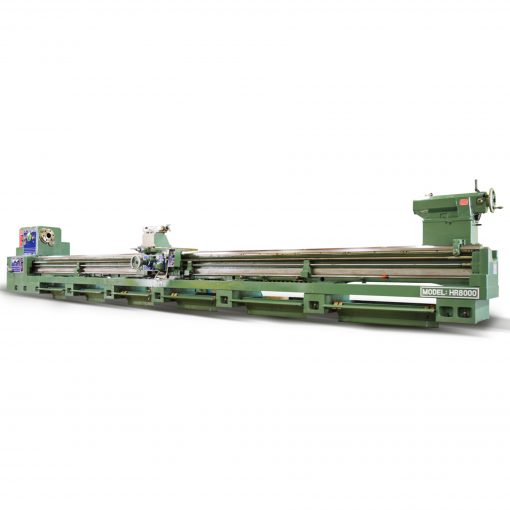

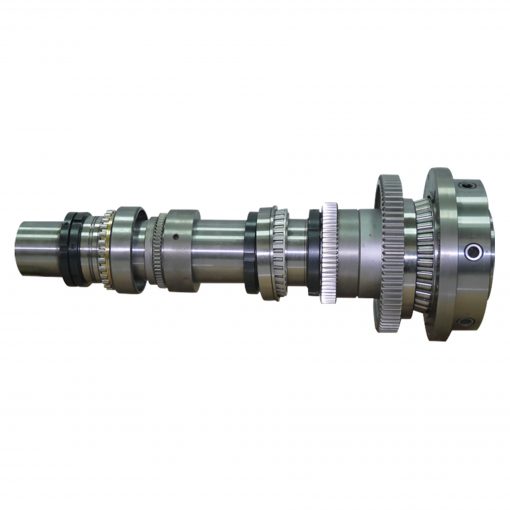

The 30″ x 80″ New Kingston Lathe is known as “The Workhorse” in machine shops across the country, Kingston’s heavy-duty HR model has been the industry leader in its class for nearly 40 years. At the heart of this machine is a strong and rigid headstock with a hardened and ground main spindle, which features a 4.06” bore and a 3-point bearing support system for superior cutting capability. Operators benefit from the increased control that comes with 16 spindle speeds (8 – 800 RPM) and a wider range of feeds and threading choices. The unique rib structure of the 22” bedway is made with high-quality casting to ensure greater stability and accuracy in heavy-duty applications. The HR is available in 30”, 34”, or 40″ swing and lengths from 80” – 320”.
30″ x 80″ New Kingston Lathe Model HR2000 Specifications:
| Swing Over Bed | 30″ |
|---|---|
| Swing Over Cross Slide | 20.7″ |
| Swing Over Gap (up to C.C. 160″ only) | 41.2″ |
| Distance Between Centers | 80″ |
| Width of Bed | 22″ |
| Height from floor to work center | 46.5″ |
| Spindle Bore | 4.09″ |
| Taper of Spindle Bore & Center | ASA #450 x M.T. #6 |
| Type of Spindle Nose | D1-11 |
| Number of Spindle Speeds | 16 |
| Spindle Speed | 8-800 RPM (12-1200 Optional) |
| Number of Feed Changes | Fine (20), Normal (40), Course (30) |
| Range of Feeds per Revolution | 0.00048-0.0168″ |
| Longitudinal Cross | 1/2 of Longitudinal Feed |
| Leadscrew Diam. & Threads per Inch | 1.9” / 2 TPI |
| Threading range Whitworth | 2 to 28 TPI (40)/Coarse 5/8″ to 8″ Pitch (16) |
| Threading range Metric | 1 to 14mm (31)/Coarse 16 to 200mm Pitch (61) |
| Threading range Module | 0.5 to 7 M (20)/Coarse 8 to 56 M (30) |
| Threading range D.P. | 56 to 4 D.P. (40)/Coarse 3.5″ to .5″ D.P. (30) |
| Maximum Travel of Compound | 9.4″ |
| Maximum Travel of Cross Slide | 21.2″ |
| Tailstock Quill Travel | 11.8″ |
| Tailstock Quill Diameter | 5.1″ |
| Tailstock Center | M.T. #6 |
| Main Drive Motor | 20 HP (25 HP, 30 HP Optional) |
| Coolant Pump Motor | 1/4 HP |
| Floor Space | W: 82″ L: 193″ |
| Machine Weight | 10,230 |
30″ x 80″ New Kingston Lathe Model HR2000 Features:
- Main Motor 20 HP, 230V/460V, 3 Phase, 60 Cycle, Switch and Wiring Complete
- Spindle Bore: HP 4.09”
- Spindle Nose: D1-11 Camlock
- Headstock Spindle Adapter ASA#450 to MT#6
- Chuck Guard
- Set of Change Gears for Special Leads
- Hardened and Ground Bedways
- Tool Slide with T-Slot
- 4-Way Rapid Traverse
- Thread Chasing Dial
- Tailstock Safety Locking Chock
- 2-Speed Drive Tailstock Quill
- Coolant System with Pump & Piping
- Pull Drawer Chip (Coolant) Pan
- UL Electrical Components & Cables
- Tool Box with Necessary Wrenches & Spanners
- Introduction Manual and Parts List
30″ x 80″ New Kingston Lathe Model HR2000 Optional Accessories:
| 11.9” Steady Rest with Roller Jaws (Min. Capacity 1.25″) | $3,950 |
| 19.7″ Steady Rest with Roller Jaws (Min. Capacity 11.1″) | $4,800 |
| 23.5 Steady Rest w/Roller Jaws (Min. Capacity 11.9″, 34″ & 40″ Swing Only) | $6,700 |
| 7.9” Follow Rest (Min. Capacity 0.75″) | $2,750 |
| Roller Bracket (30″: 13.5”-23″) | $7,500 |
| 25 HP Main Motor Upgrade (Factory Installation Only) | $2,000 |
| 30 HP Main Motor Upgrade (Factory Installation Only) | $3,000 |
| Lower RPM Modification: 0.4 – 40 RPM (Factory Installation Only) | $1,000 |
| Higher RPM Modification: 12 – 1200 RPM (Factory Installation Only) | $1,000 |
| Telescopic Taper Attachment (Hardened & Ground) | $6,200 |
| Drilling Attachment | $2,900 |
| Hydraulic Brake System (Factory Installation Only) | $6,300 |
| Turret or Micrometer Carriage Stop | $750 |
| LED Work Light | $250 |
| Bison Super Precision Live Center MT#6 (8,140 lbs, 0.0002 max runout) | $750 |
| Add Limit Switch to Chuck Guard | $150 |
| Aloris DA Tool Post Only | $1,475 |
| Aloris DA Tool Post + 6 Holders (Set #5) | $2,795 |
| Aloris EA Tool Post Only | $2,250 |
| Aloris EA Tool Post + 6 Holders (Set #6) | $4,375 |
| Newall 2-Axis Digital Readout + Installation : HR2000 | $5,625 |
| Chip Conveyor | Upon Request |
| Toolpost Guard | $1,250 |
| Full Length Splash Guard | Upon Request |
| NRTL/UL Certification | Upon Request |
| Workholding | |
| Bison 20” 3-Jaw Forged Steel Scroll Chuck (D1-11 direct mount, 2pc jaws) | $12,500 |
| Bison 20” 4-Jaw Forged Steel Independent Chuck (D1-11 direct mount, 2pc jaws) | $7,500 |
| Taiwan KC 20” 4-Jaw Semi-Steel Independent Chuck (D1-11 direct mount, solid jaws) | $3,500 |
| Bison 25” 3-Jaw Forged Steel Scroll Chuck (D1-11 direct mount, 2pc jaws) | $16,900 |
| Bison 25” 4-Jaw Forged Steel Independent Chuck (D1-11 direct mount, 2pc jaws) | $10,100 |
| 26” Face Plate | $1,850 |
| 32” Face Plate | $2,700 |
| Other Chucks | Upon Request |
