Description

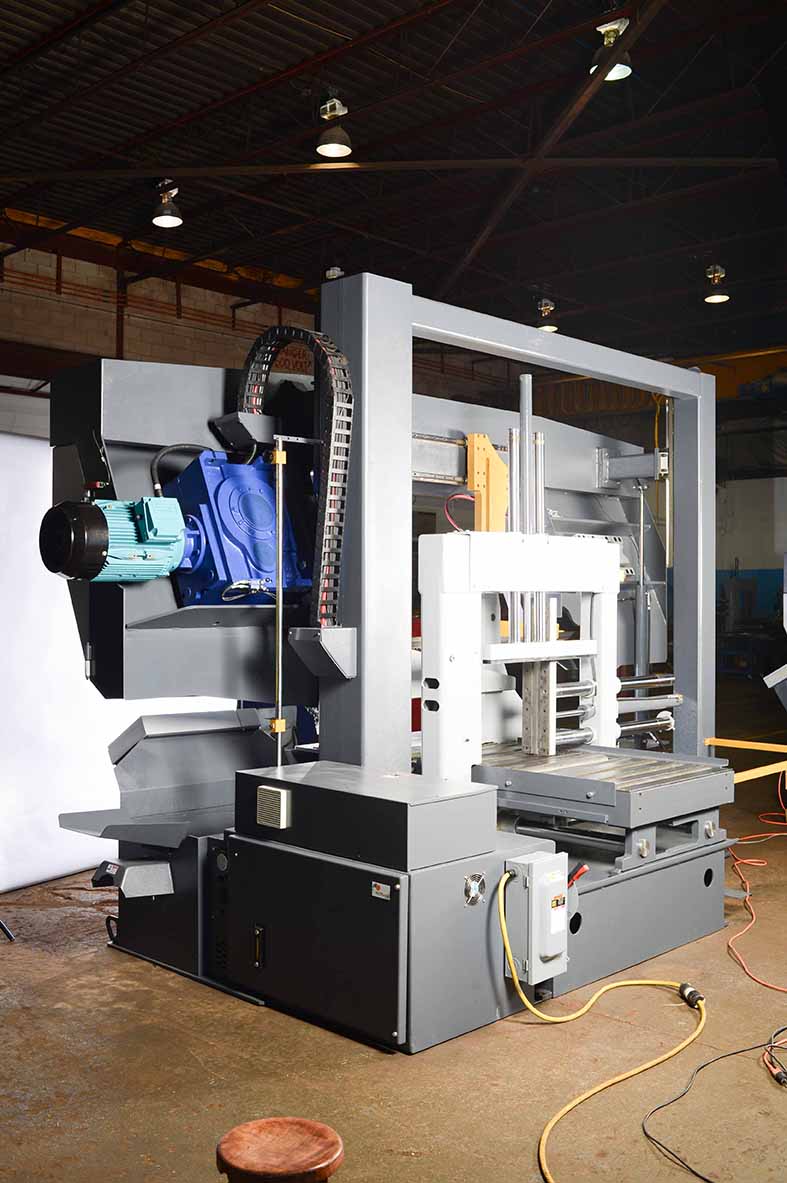

32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Specifications:
| Capacity | |
| 90° rectangle (h x w) | 32″ x 32″ |
| 90° round | 32″ |
| 90° square | 32″ |
| 6° canted head rectangle (h x w) | 28″ x 32″ |
| 6° canted head round | 28″ |
| 6° canted head square | 28″ |
| Blade Drive | 20 HP |
| Blade Speed | 40-300 SFM |
| Blade Size | 2 5/8″ x 30′ 4″ |
| Automatic Multi-Indexing | 0-34″ |
| Table Height | 31″ (37″ w/ canted head) |
| Voltages Available | 480v (208, 240, 575 Optional Power transformer required) |
| Weight | 19,500 lbs |
| Dimensions (w x l x h) | 182″ x 92″ x 120″ |
| Coolant Tank Capacity | 40 gallons |
| Hydraulic Tank Capacity | 9.5 gallons |
32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Standard Features:
- One piece design – no alignment necessary
- Spilt front vise (can be replaced by request with retractable datum vise at no charge)

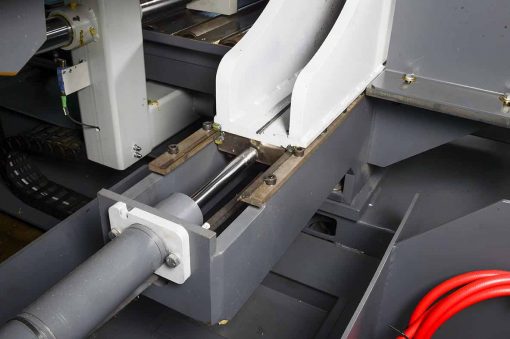

- Cast iron shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

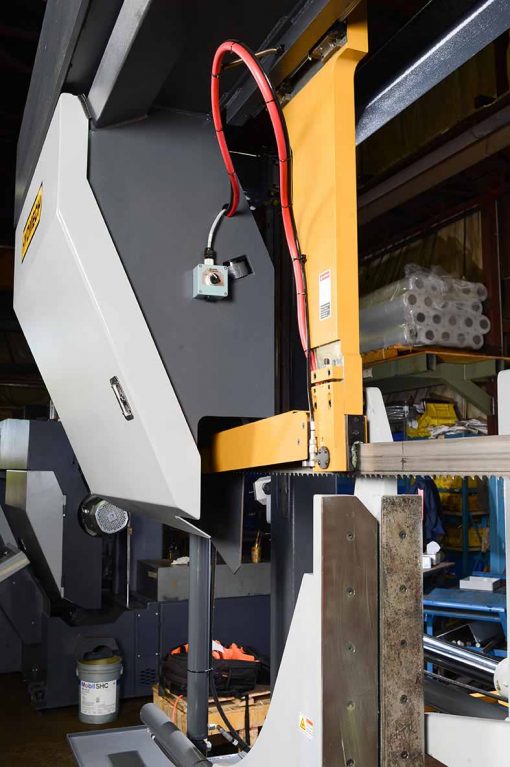

- Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
- Automatic chip removal auger
- 20 HP VFD. True direct blade drive – no belts/pulleys

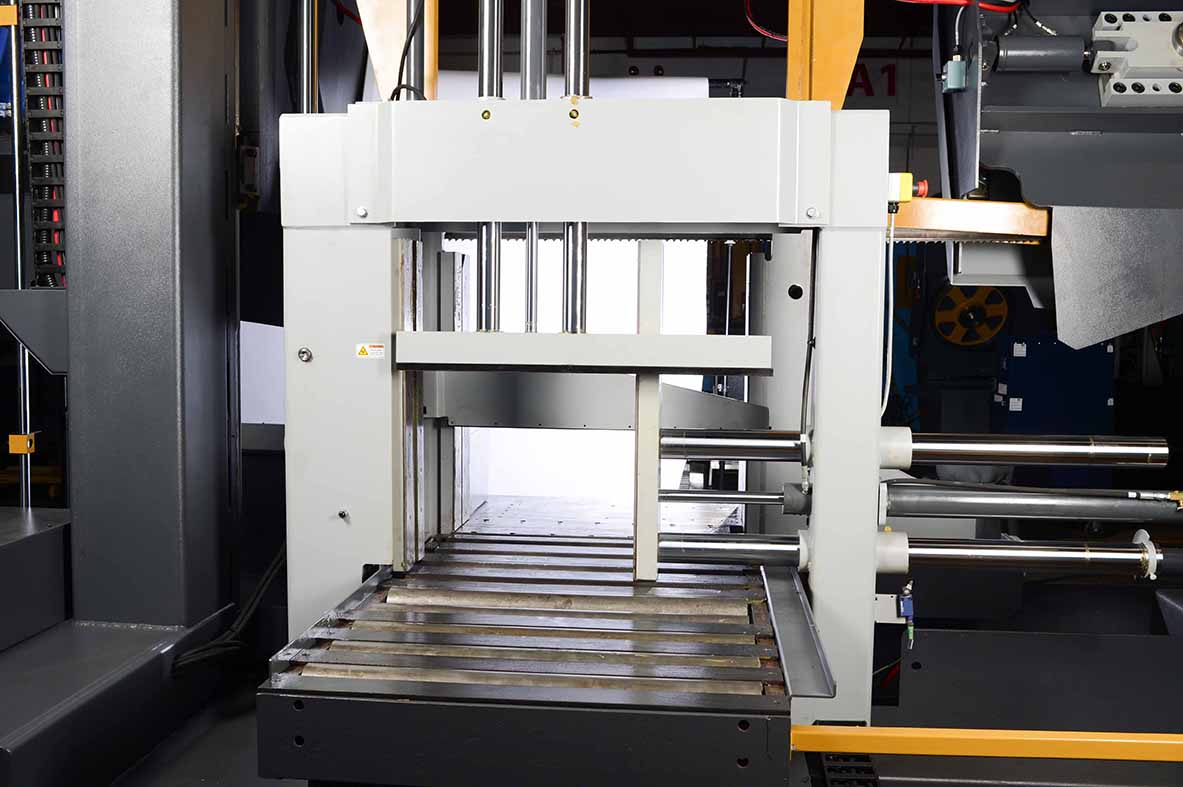

- Full capacity, full stroking hydraulic vises
- Hydraulic positive down feed
- Cast iron band wheels
- High resolution feed rate valve allows for constant feed rate when cutting special alloys
- Blade chamber separates material from cut part

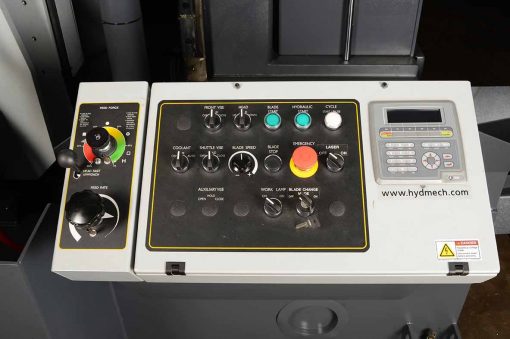

- 7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.

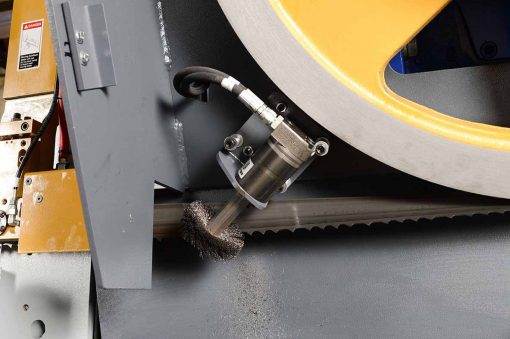

- Replaceable blade brush
- Robust steel base
- Blade breakage switch
- Variable vise pressure
- Out of stock switch
- Easy access electrical panel and hydraulics
- Hydraulic band tensioning with digital readout

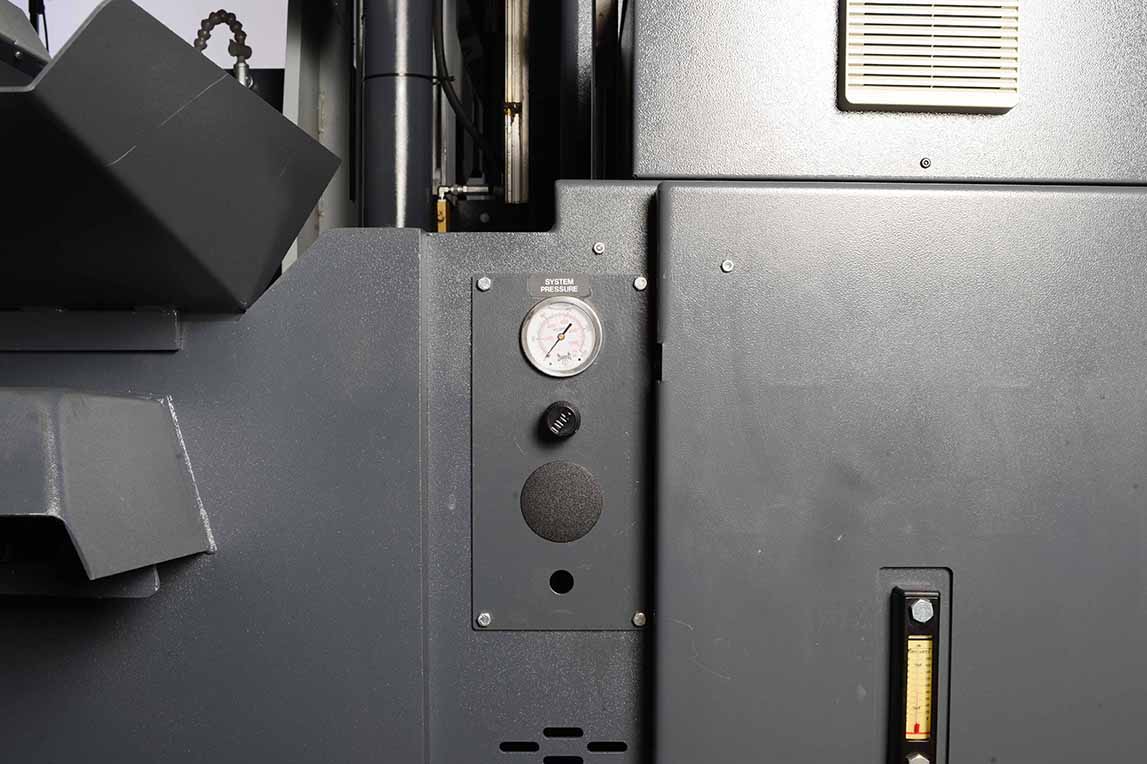

- 5 HP hydraulic pump provides system pressure
- Hydraulic carbide guide tensioning
- Hardened, replaceable wear plates
- Safety door interlocks
- Flood coolant with wash down hose
- Work light
- Laser light
32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Optional Features:
- Full capacity hydraulic overhead bundling
- 6° canted head
- Blade deviation
- Mist lubrication
- Outboard vise clamping options available upon request
- Remote console – 15’ cord
- Roller discharge table
- Vertical alignment rollers
- Idler conveyors
- Powered conveyors
32” x 32” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-32A Optional Accessories:
| 13143020 6 degree canted head (Changes table height to 37”, split front vise optional) | $7,900 |
| 13093000 Full capacity hydraulic overhead bundling – two vises | $8,200 |
| 13138010 Mist lubrication system (shop air required) | $1,900 |
|
Power Transformer- change in house power from 480 v to 208 v |
$1,700 |
|
Power Transformer- change in house power from 480 v to 240 v |
$1,700 |
|
Power Transformer- change in house power from 480 v to 575 v |
$1,700 |
| 13137030 Remote console – 15’ cord | $5,100 |
| 13094000 Roller discharge table | $6,200 |
| 13099010 Vertical alignment rollers – on machine | $1,800 |
| 13137010 Blade deviation monitor | $4,100 |
| Idler conveyors-Standard head (36″W x 31″H) | |
| 18030361 Type 3 – 5’ in feed/ out feed idler conveyor | $6,500 |
| 18030362 Type 3 – 10’ in feed/ out feed idler conveyor | $12,500 |
| Idler conveyors-Canted head (36″W x 37″H) | |
| 18038471 Type 3 – 5’ in feed/ out feed idler conveyor | $6,500 |
| 18038470 Type 3 – 10’ in feed/ out feed idler conveyor | $12,500 |
| Powered conveyors-Standard head (36″W x 31″H) | |
| 18030364 Type 3 – 10’ in feed/ out feed powered conveyor | $19,900 |
| 18099782 Additional 10’ power add on section | $13,900 |
| 18092000 Pneumatic clutch | $4,100 |
| Powered conveyors-Canted head (36″W x 37″H) | |
| 18030366 Type 3 – 10’ in feed/ out feed powered conveyor | $19,900 |
| 18099787 Additional 10’ power add on section | $13,900 |
| 18092000 Pneumatic clutch | $4,100 |
| Accessories for both idler and powered conveyors | |
| 18099093 Filler plates – for 5’ conveyor | $1,900 |
| 18099094 Filler plates – for 10’ conveyor | $3,800 |
| 18099083 Coolant drip pan – for 10’ conveyor | $3,600 |
| 18099080 Vertical alignment roller | $2,200 |
| 18099095 Fork lift cut outs | $2,200 |
