Description

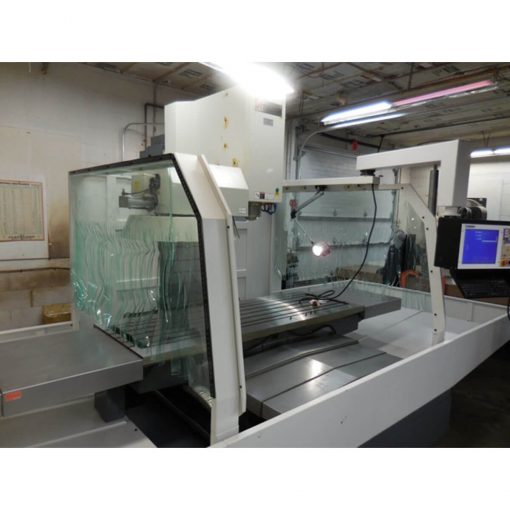

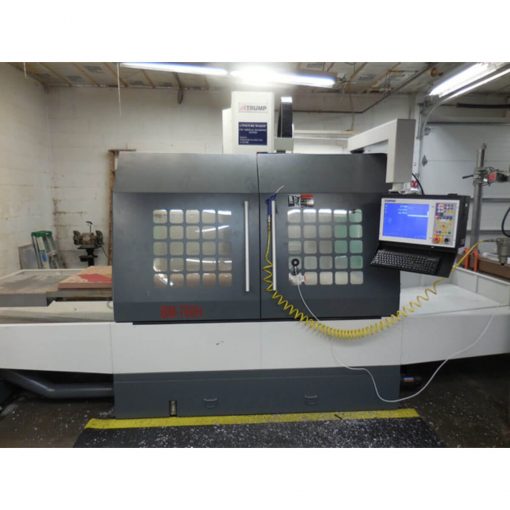

32″ x 86″ New Atrump CNC Bed Mill Model BM760H Specifications:
| Table | 32″ x 86″ |
| X travel | 78.74” |
| Y travel | 33.46” |
| Z travel | 27.55” |
| Spindle nose to tabletop | 3.93” to 31.49” |
| Spindle center to column | 35.4″ |
| Table load capacity | 4,400 lbs |
| T-slot (5) | 0.71″ x 2.51″ |
| Spindle taper | CAT40 |
| Programable spindle speed | 60 to 8000 rpm |
| Transmission spindle-motor | Belt |
| Rapid feed rate X/Y/Z | 250/250/250 ipm |
| Cutting feed rate | 1 to 120 ipm |
| Spindle motor/Max power | 20HP |
| Servo motors on XYZ | 3 kW – AC Servo |
| Coolant pump | 1/8 HP |
| Tool magazine capacity (option) | Armless 20 tools |
| Max tool diameter | Ø 3.1″ |
| Adj. pocket empty | Ø 3.54″ |
| Max tool length | 11.8″ |
| Max tool weight | 15.4 lbs Total: 176 lbs |
| Lubrication pump | Auto lubrication |
| Net weight | 19,910 lbs |
| Power requirement | 33 KVA 3 phase 208V to 230V |
| Air requirement | 70-100 psi |
| Oil way recommended | Mobil Vectra #2 |
| Optional chiller oil | Shell Tellus 32 |
| Coolant capacity | 26 gallons |
32″ x 86″ New Atrump CNC Bed Mill Model BM760H Features:
- Centroid’s M400 easy conversational programing OAK PRO License
- Huge 15” color touch screen
- 60 GB reliable SSD
- RS232 and 2USB ports for easy data transfer
- Double nut precision ball screw hardened & ground for high accuracy
- Box way design on Y and Z axes to provide maximum rigidity & stability
- 100% laser tested and calibrated for positioning accuracy & repeatability
- High speed Delta AC motors and drivers and spindle inverter
32″ x 86″ New Atrump CNC Bed Mill Model BM760H Standard Accessories:
- Auto lube system
- 15″ color LCD
- USB 2.0 port
- Tools & box
- 100 Step MPG
- Coolant system
- 60 GB solid state hard drive
- RS-232 interface
- Halogen work light
- Parts manual machine
- Shop floor programming/Conversational
- Splash guard & chip pan
- Leveling bolts & plate
- Electronic Operation Manual Centroid
32″ x 86″ New Atrump CNC Bed Mill Model BM760H Optional Accessories:
| PART # | DESCRIPTION | PRICE |
| MNC-130R | CNC Rotary Table w/Delta Motor and Driver 1 KW (Table size: 5.1″) | $8,350 |
| DTS-130 | Manual Tailstock for MNC-130R | $740 |
| SK6 + AP1 | 3-Jaw Manual Scroll Chuck w/Backplate | $1,060 |
| MNC-130RP | MNC130R 4th Axis Rotary Table Package MNC-139R+DTS-130+SK6+AP1 | $9,650 |
| MNC-172R | CNC Rotary Table w/Delta Motor and Driver 1KW (Table size 6.69″) | $9,000 |
| DTS-171 | Manual Tailstock for MNC-171R | $950 |
| SK6 + AP1 | 3-Jaw Manual Scroll Chuck w/Backplate | $1,210 |
| MNC-172RP | MNC170R 4th Axis Rotary Table Package – MNC-172R+DTS-171+SK6+AP1 | $10,650 |
| MNC-200R | CNC Rotary Table w/Delta Motor and Driver 1KW (Table size: 6.69″) | $9,450 |
| DTS-200 | Manual Tailstock for MNC-220R | $1,020 |
| SK7 + AP1 | 3-Jaw Manual Scroll Chuck w/Backplate | $1,350 |
| MNC-200RP | MNC200R 4th Axis Rotary Table Package – MNC-200R+DTS-200+SK7+AP1 | $11,230 |
| MNC-251R | CNC Rotary Table w/Delta Motor and Driver 1KW (Table size: 9.84″) | $10,500 |
| DTS-251 | Manual Tailstock for MNC-251R | $1,140 |
| SK8 + AP2 | 3-Jaw Manual Scroll Chuck w/Backplate | $1,480 |
| MNC-251RP | MNC251R 4th Axis Rotary Table Package – MNC-251R+DTS-251+SK8+AP1 | $12,500 |
A Riser Block is available for all rotary tables and tail stock packages
CENTROID Software Options:
| PART # | DESCRIPTION | PRICE |
| 10249 | Printed Manual Centroid Control | $88 |
| 10630 | Unlimited Part Program Size | Included |
| 10730 | Intercon Off-line Conversational Program (for your desktop PC) | $99 |
| 10850 | Coordinate System Rotation (CSR) | Included |
| 10625 | Scaling and Mirroring [G50 & G51] | Included |
| 10810 | Rigid Tapping [G74 & G84] (includes 10620) | Included |
| 10740 | Engraving Software | $500 |
| 15010 | Upgrade to CNC Unlimited License instead of PRO License | $450 |
| DIGITIZING & PROBING | ||
| 10405 | DP-4 Probing Package w/CSR (10850) | $1,790 |
| 12486 | DP-7 Probing Package w/CSR (10850) | $4,200 |
| 10770 | 2D & 3D Digitizing Software (requires 10405) | $995 |
| 10220 | TT-1; Tool Touch Off Kit | $725 |
| 12468 | TT-2; Tool Touch Off Kit | $1,350 |
| 10772 | Tool Room Package (10405 & 10220 & 10600 Work Coordinate) | $2,439 |
Machine Options:
| PART # | DESCRIPTION | PRICE |
| *TG-CNC | Table Guard with 2 Lexan Doors | $1,490 |
| 20ATC | 20 T Magazine Umbrella with Software | $6,000 |
| *24ATC | 24 Tools Arm Type ATC | $10,980 |
| 8928 | Upgrade to Wireless MPG | $299 |
| ENCLOSURE | Full Enclosure + Screw Type Chip Auger + Wash Down + Water Gun & Air Gun | $22,580 |
| BM-CTS | Coolant Thru Spindle + Paper Filter | $11,980 |
| BM760-TPL | Add Top Covers with 2 pcs of Fluorescent Lamps (CTS Recommend) | $4,900 |
| CP-MIST | Mist Coolant System | $840 |
| BM760-CC | Upgrade to Chain Type Chip Conveyor Instead of Screw Type Chip Auger | $3,900 |
| TRAN-36 | Transformer: 36 KVA (440-480 V) | $3,730 |
| C40RK-45 | Retention Knob Cat40, 45 degree 16 pcs | $192 |
| CK-105 | 52 pcs Clamping Kit | $295 |
*Are Recommended Items
Tool Options:
| PART # | DESCRIPTION | PRICE |
| CAT40 KIT RECOMMEND | ||
| CK-105 | 52 pcs Clamping Kit | $295 |
| CAT40-TOOL16 | CAT40 EM Tool Holder + Keyless Chuck + Retention Knob (16 pcs) EM 1/8, 1/4, 3/8, 1/2, 5/8, 3/4, 1″ C40RK (x1) | $840 |
| HAV-6 | 6″ Angle Vise w/Swivel Base (Made in Taiwan) | $550 |
| Total Special Kit Price | $1,600 | |
