35″ x 40″ Kingston CNC Lathe Model CL58D 10.1″ (Video)

Description

35″ x 40″ Kingston CNC Lathe Model CL58D 10.1″ for sale

Kingston’s CL-58 model builds upon our popular CL-38 by stepping up its power and capacity to handle larger and longer workpieces. This versatile front- and rear- chuck ready  machine features a front V8 turret, 40 HP Motor, and wider 22″ 2 V-way bed for optimal cutting performance. Customize your CL-58 with a 7.3”, 10.1”  or 14.7″ spindle bore, H6 rear turret and lengths from 40” — 240”.

35″ x 40″ Kingston CNC Lathe Model CL58D 10.1″

Price and specifications subject to change without notice.
The machine will be guaranteed free from defective material and workmanship for a period of one (1) year under normal working conditions on a one-shift basis (8 hrs. daily), excluding misuse by customer.
Electrics guaranteed for a period of one (1) year (parts only).

Standard Equipment & Accessories:

• 30/40 HP (30 min) Fanuc aP50i AC Spindle Motor, 220V (only), 3 Phase, 60 Cycle

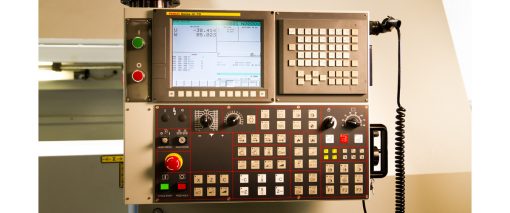

• Fanuc 0iTF-Plus Controller with Manual Guide i & Threading Repair, 10.4″ LCD Monitor
• Front & Rear Chuck Ready Spindle

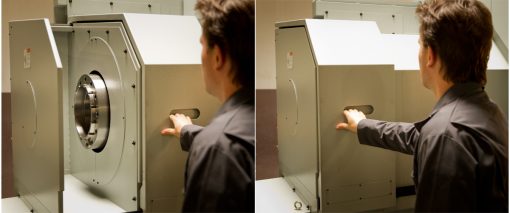

• Rear Spindle Safety Door

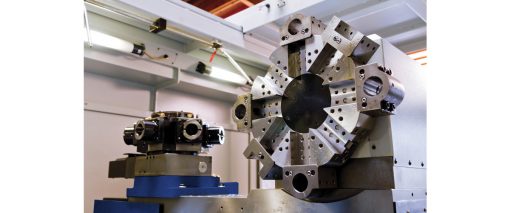

• V8 Turret

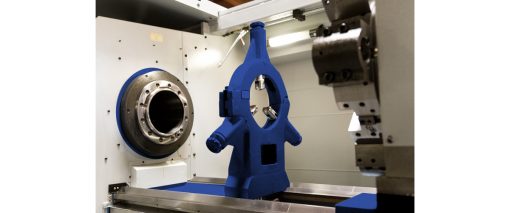

• 11.8″ Steady Rest w/Roller Jaw (Min. 3.5″)

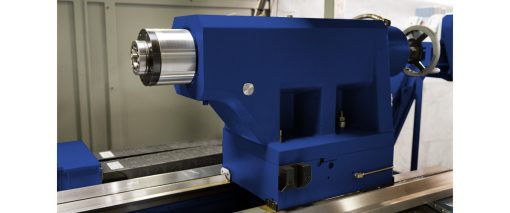

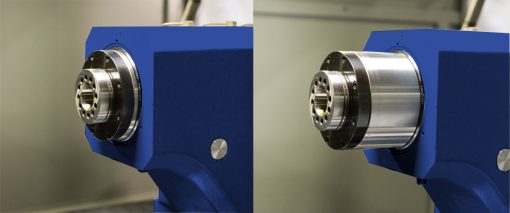

• Tailstock with Sub-Spindle Function and Chuck Mounting Capability
• Water Spray Gun for chip Cleanup

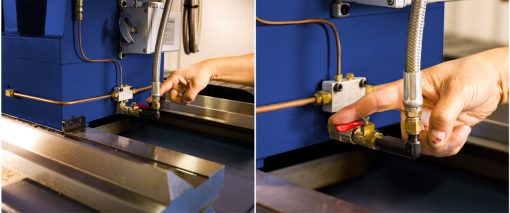

• Tailstock Movable by Engaging with Carriage
• Dead Center for Tailstock MT#5
• Coolant System w/6 Bar Pressure
• Auto Lubrication System
• Two Doors and Full-Length Back Splash Guard
• Rear Chip Conveyor
• Halogen Light
• Foundation Pads, Leveling Screws
• Tool Box and Tools
• Operation, Electric, Controller & Parts Manual

STANDARD TOOLING PACKAGE

Note:  No credit allowed for deletion of individual tool sleeves in the standard tooling package.

Optional Accessories:

• Additional 11.8″  Steady Rest w/Roller Jaws (Min. Capacity 3.5″). $4,700
• 20″ Steady Rest w/Roller Jaws (Min. Capacity11.4″). $5,800
• Heavy Duty 5.9″ Steady Rest w/Roller Jaws (Min. Capacity 1.1″). $6,300
• Heavy Duty 22″ Steady Rest w/Roller Jaws (Min. Capacity 14.9″)  $7,200
• Follow Rest (1.57″-9.45″). $7,300
• 4″, 5, 5.5″ or 6″ Boring Bar Support. $3,900
• 3″ & 4″ Sleeves for 5″ Boring Bar Support. Each $1,200
• Fanuc Arbitrary Speed Threading + Thread Lead Teach:  Spindle FWD  $2,500
• Fanuc Arbitrary Speed Threading + Thread Lead Teach:  Spindle FWD + REV  $3,000
• Transformer 480V to 220V  $2,800
• Full Enclosure. Upon Request
• Without Tailstock (Factory Removal Only). Upon Request

Turret Options:

H4 Servo Turret Instead of H6 (Factory Installation Only). No Charge
Without Front or Rear Turret (Factory Removal Only). Less $5,000
Sauter BMT-85 V12 Live Tooling Turret + 2.5° C-Axis Spindle Indexing. Upon Request
Baruffaldi VD140 V12 Live Tooling Turret + 2.5° C-Axis Spindle Indexing  Upon Request

Workholding:

21″ 3-Jaw Hydraulic Chuck + System for 7.3″ Bore (6.4″ bar capacity). $37,500
24″ 3-Jaw Hydraulic Chuck + System for 7.3″ Bore (6.4″ bar capacity). $39,500
24″ 3-Jaw Hydraulic Chuck + System for 10.1″ Bore (8.0″ bar capacity). $45,500
Taiwan KC 24″ 4-Jaw Ind. Chuck (9.0″ hole, solid jaws, semi-steel body, A2-15). $7,500
Taiwan KC 26″ 4-Jaw Ind. Chuck (10.0″ hole, solid jaws, semi-steel body, A2-15). $9.500
Taiwan KC 28″ 4-Jaw Ind. Chuck (10.2″ hole, solid jaws, semi-steel body, A2-15). $12,500
Bison 25″ 4-Jaw XHD Ind. Chuck (10.6″/12.5″ hole, 2pc jaws, forged steel). $11,050
Bison 28″ 4-Jaw XHD Ind. Chuck (12.6″ hole, 2pc jaws, forged steel). Upon Request
Bison 32″ 4-Jaw XHD Ind. Chuck (14.6″ hole, 2pc jaws, forged steel). Upon Request
Other Hydraulic, Air & Manual Chucks. Upon Request

Kingston CL58 CNC Lathe Video:
