Description
Vertical contour saws are among the most versatile sawing machines on the market today and the 36″ DoALL vertical metal cutting band saw leads the pack in versatility. The 36″ DoALL saws are widely used in machine shops, mold shops, maintenance departments, schools and in other areas where cutting a wide variety of materials is required. Machines are available in sizes to fit your needs and feature band speeds that permit contouring, cut-off, and machining of almost any material.
36″ New DoAll Vertical Contour Band Saw Model 3612-VH Specifications:
| Specifications | |
| Capacity | Inches |
| Maximum width | 36″ |
| Maximum height | 12″ |
| Table tilt positive | 10° |
| Table tilt negative | 45° |
| Saw Blade | |
| Band width capacity | 1/8″ – 1″ |
| Band length | 154″ |
| Band Drive | |
| Motor | 3 Hp |
| Band Speed | Low range: 30-320 fpm High range: 550-5,500 fpm |
| Band Tension | Manual |
| Coolant System | |
| Flood | N/A |
| Mist lubricator | Opt |
| Hydraulic | |
| Hydraulic motor | 1.5 Hp |
| Hydraulic tank | 3 gal |
| General | |
| Floor Space Dimensions W x L x H | 56″ x 44″ x 80″ |
| Material pass height | 39″ |
| Machine weight | 1,900 lbs |
| Electrical | |
| Voltage requirement (Wye configuration-must specify at order placement) | 208V, 230V, or 460V-60Hz-3ph |
| Total Amp Draw (FLA) | 14.3 (208) 13.7 (230) 9.8 (460) |
36″ New DoAll Vertical Contour Band Saw Model 3612-VH Standard Equipment:
- Table tilt to 45 degrees negative-10 degrees positive
- Table 26.5″ x 33.5″
- Two T-Slots 1/2″
- 20″ aluminum flanged, tapered band wheels with rubber tires
- Upper wheel adjustment 3″

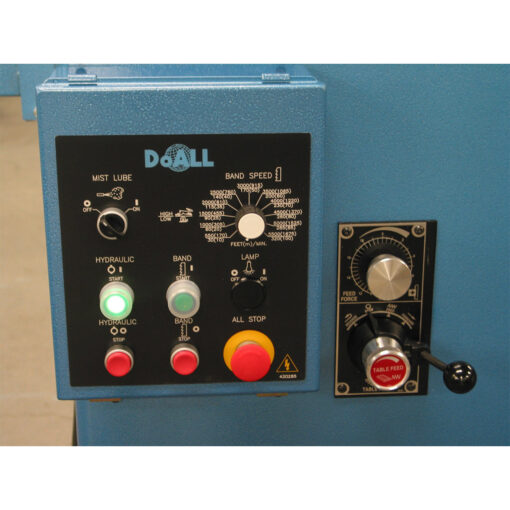

- Operator controls mounted on column
- One set of saw guide blocks with carbide backup for band 1/8″ to 1″
- One set of metal saw guide inserts for bands 1/4″, 3/8″, 1/2″, 3/4″, and 1″
- Band wheel brush
- Variable frequency band drive
- Work light
- Hydraulic reservoir
- Manual band tension with indicator
- Post elevating hand wheel
- Chip box
- Chip blower (plant air required)
- Saw blade guards
- Band door interlocks
- Operation and parts manuals on USB stick
- Recommended job selector
- One (1) complimentary DoAll Bi Metal saw blade
- Insert setting gages with wrench and trunnion wrench
36″ New DoAll Vertical Contour Band Saw Model 3612-VH Optional Accessories:
| 299473 Extended 18″ hydraulic table stroke assembly | $7,339 |
| HMD-36 Extended traverse work table: 1100 lb. capacity, four (4) 2″ T-Slots, 34 x 42″ table area, reduces work height by approximately 4″ | $27,611 |
| 299685 Secondary table 17″ x 19″ | $1,860 |
| 40363 Work holding vise to fit table “T” slots | $1,176 |
| 299551 DBW-15 welder with grinder, column mounted, for 240 volts and below | $4,119 |
| 299550 DBW-15 welder with grinder, column mounted, for 460 volt | $4,119 |
| Extended work height 6 inch increments-call for quote | Call |
| 5-013007 Work holding jaw with handles | $404 |
| 420288 Band mist lubricator (80 psi plant air required) | $1,860 |
| 402080 Disk cutting attachment: capacity 2-1/2″ to 30″ diameter | $2,235 |
| 226028 Magnetic wand chip remover | $195 |
| 1012862 Flood coolant | $5,263 |
| 80161 Extra set of heavy-duty saw guide blocks with carbide backup for 1/4″ to 1″ bands | $933 |
| Additional set of hardened tool steel reversible saw guide inserts (set of 4) for any single band width | |
| 80041 1/4″ | $98 |
| 80042 3/8″ | $98 |
| 80043 1/2″ | $98 |
| 80044 5/8″ | $98 |
| 80045 3/4″ | $98 |
| 80046 1″ | $98 |
| Optional tungsten-carbide, single-faced saw guide inserts (set of 4) for any single band width | |
| 80100 1/4″ | $583 |
| 80101 3/8″ | $583 |
| 80102 1/2″ | $583 |
| 80103 5/8″ | $583 |
| 80104 3/4″ | $583 |
| 80105 1″ | $583 |
| 299998 Additional USB stick of manuals | $92 |
| NRTL A Nationally Recognized Testing Laboratory (NRTL) is an independent third-part laboratory recognized by the United States Occupational Safety and Health Administration (OSHA) to test and certify products to applicable product safety standards | $3,500 |
| SVC CHARGE LABOR Five (5) hours installation and operator training | $750 |
| Warranty DoALL Cut Above 10 Year Warranty Annual Investment | $840 |
| 1200025 Starter Kit of Six Pack Blades Consist of 3 each Silencer GP 5-8, and 1 of each Silencer GP 6, 6-10, 8-12 | $295 |
| 21200045 5 Gal. Pail of AL-2000 Mist Coolant | $240 |
| 24000001 Tool-Saver lubricant stick | $14 |
