55.12″ x 54.72″ x 43.31″ New Femco CNC Horizontal Boring Mill BMC-110R1APC

BMC 110R1 with Pallet Changer
X-, Y-, Z-Axes Linear Scales
Saddle Slideway Cover
Working Light
Anchors and Levels for Installation
Rotary Table, 90 Degree Precision Indexing
Table Slideway Cover
X-, Y-, Z-Axes Ball Screw Cover
Headstock Cooling System

F.O.B.  Factory

Terms: Check with Order

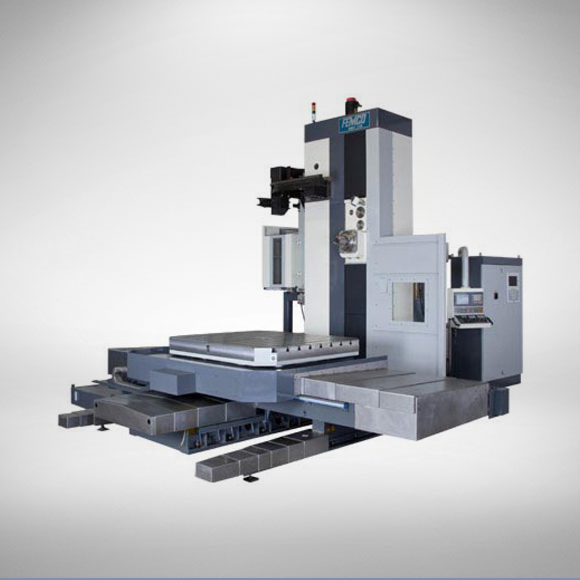

FEMCO BMC-110APC CNC Horizontal Boring & Milling Machine with Automatic Pallet Changer

4.3″ New Femco CNC Horizontal Boring Mill BMC-110R1APC Specifications:

Table Cross Travel (X-Axis) 55.12″
Headstock Travel (Y-Axis) 54.72″
Table Longitudinal Travel (Z-Axis) 43.31″
APC Table Size 43.3″ x 49.21″
APC Table Load 6,600 Lbs
Bar Diameter 4.33″
Stroke (W-Axis) 19.69″
Taper ISO #50 with Power Operated Drawbar
Tool Shank CT50
Milling Spindle Diameter 8.86″
Pull Stud (Option MAS-I) MAS-II 60 deg
Motor (Continuous/30 min Rated) AC 22/26 KW (29.5 / 35 HP)
Speed Ranger-Low Stepless 5 – 454 RPM
Speed Ranger-High Stepless 455 -1500 RPM
Automatic tool changer (ATC):
Tool Storage Capacity 60 ATC Standard, 90 ATC Optional
Max. Tool Diameter (Adjacent Pods Full) 4.72″
Max. Tool Diameter (Adjacent Pods Empty) 9.84″
Max. Tool Length 15.75″
Max. Tool Weight 55 Lbs.
Tool to Tool Exchanging Time 15 sec
Tool Selection Method: Automatic Selection of the Shortest Route
Positioning servo motor:
X-Axis 8 HP
Y-Axis 9.4 HP
Z-Axis 8 HP
W Axis 5.4 HP
Rotary Table 5.1 hp
Positioning Accuracy X, Y, Z, and W-Axis (0.001″/11.81″)
Repeatability X, Y, Z, and W-Axis (±0.0004″)
Control Axes 5
W-Axis 4
Rapid Traverse Rate
X-, Y-, Z-Axis 394″ IPM
W-Axis 157″ IPM
Machine Dimensions and Net Weight:
Height 132.7″
Floor Space 230″ x 374″
Net Weight 44,000 Lbs
Power Requirements 220 Volts 3 Phase 60 Cycle 200 Amps 440 Volt Transformer on Request

A highly efficient Automatic Pallet Changer design allows for the machining of one work piece and the loading of the next work piece simultaneously for maximum productivity.

All major components are fully ribbed close grain Meehanite castings completely stressed relieved before machining. The vertical column walls are thick and cross ribbed, the front vertical way is massive and is offset 3 ½” from the back way to absorb any radial thrust generated during heavy machining operations and to guarantee accuracy, rigidity and longevity.

Box Ways are induction hardened to 55-60 C X .100” deep and are precision ground. Headstock, column base, and cross slides are lined with turcite (A LOW FRICTION MATERIAL). Turcite provides excellent wear and slip stick characteristics due to its low coefficient of friction. It also provides good vibration damping. Turcite reacts with the machine structure thus giving a high static and dynamic stiffness to the machine.

Lubrication to all axes is done automatically to ensure longevity of the ways.

Large 2 inch Diameter, high precision ball screws are pre-loaded with the nut when installed. This ensures zero-backlash and smooth motion through the machining process.

The spindle is made from chromium molybdenum steel alloy. The spindle and the sleeve surfaces are hardened in a nitrating process, then ground and lapped, thus, insuring high rigidity for a smooth surface and long life. Class 7 bearings are used in all our spindles.

The worktable can be indexed automatically every 90 degrees allowing for standard four face machining. Angles between 0 and 360 degrees can be positioned manually.

4.3″ New Femco CNC Horizontal Boring Mill BMC-110R1APC Features:

  • Controlled 5 Axes
  • Simultaneous Controllable 4 Axes
  • Reference Point Return (G27, G28)
  • Linear Interpolation
  • Circular Interpolation
  • 10.4” CRT/MDI (Small Type) / (Full Key)
  • Registered Programs 63
  • Part Program Stored Length 80m
  • Sequence Number Search
  • Program Number Search
  • Manual Pulse Generator
  • External Work Number Search
  • Program Protect
  • Inch/Metric Switching
  • Machine Lock
  • Backlash Compensation
  • Program Protect Signal
  • Self-Diagnosis Function
  • Read/Puncher Interface
  • Direct Input of Meas. Work Coord. Sys. Shift
  • EIA/ISO Automatic Recognition
  • Mirror Image
  • Actual Speed Display
  • Work Coordinate System G54 – G59
  • Canned Cycle for Hole Machining
  • Tool Compensation Memory 32 sets

New Femco 4.3″ BMC-110R1APC CNC Horizontal Boring Mill Option Functions:

  • Tape Storage L x 120m, 320m
  • Helical Interpolation
  • Handle Interruption
  • Playback
  • Coordinate Rotation
  • Scaling
  • Tool Offset – Addition 64, 99
  • Program Input of Offset Amount (G10)
  • Tool Life Management
  • Pattern Data Input
  • Menu Programming
  • Tool Compensation Memory B
  • Custom Macro
  • Background Editing
  • Graphic Display
  • German/French Display
  • Chinese Display
  • Addition of Registered Programs to 125
  • Expanded Part Program Editing
  • Directory Display of Floppy Cassette
  • Polar Coordinate Command

New Femco 4.3″ BMC-110R1APC CNC Horizontal Boring & Milling Machine Equipped with:

  • Saddle Slideway Cover (X Axis)
  • Working Light
  • Anchors and Levels for Installation
  • Rotary Table, 90 Degree Precision Indexing
  • Table Slideway Cover (Z Axis)
  • X-, Y-, Z-Axes Ball Screw Cover
  • Headstock Cooling System
  • Operator’s Manual
  • Y Axis Splash Guard

4.3″ New Femco CNC Horizontal Boring Mill BMC-110R1APC Options:

  • 60 Tool ATC…Included
  • 90 Tool ATC…$ 60,000.00
  • Fanuc 32i control…$ 15,500.00
  • Spindle extension sleeve 300mm…$1,500.00
  • Full B Axis Table
  • Chip Conveyor…Included
  • Coolant thru spindle…Included

New Femco 4.3″ BMC-110R1APC CNC Horizontal Boring Mill video
