Description

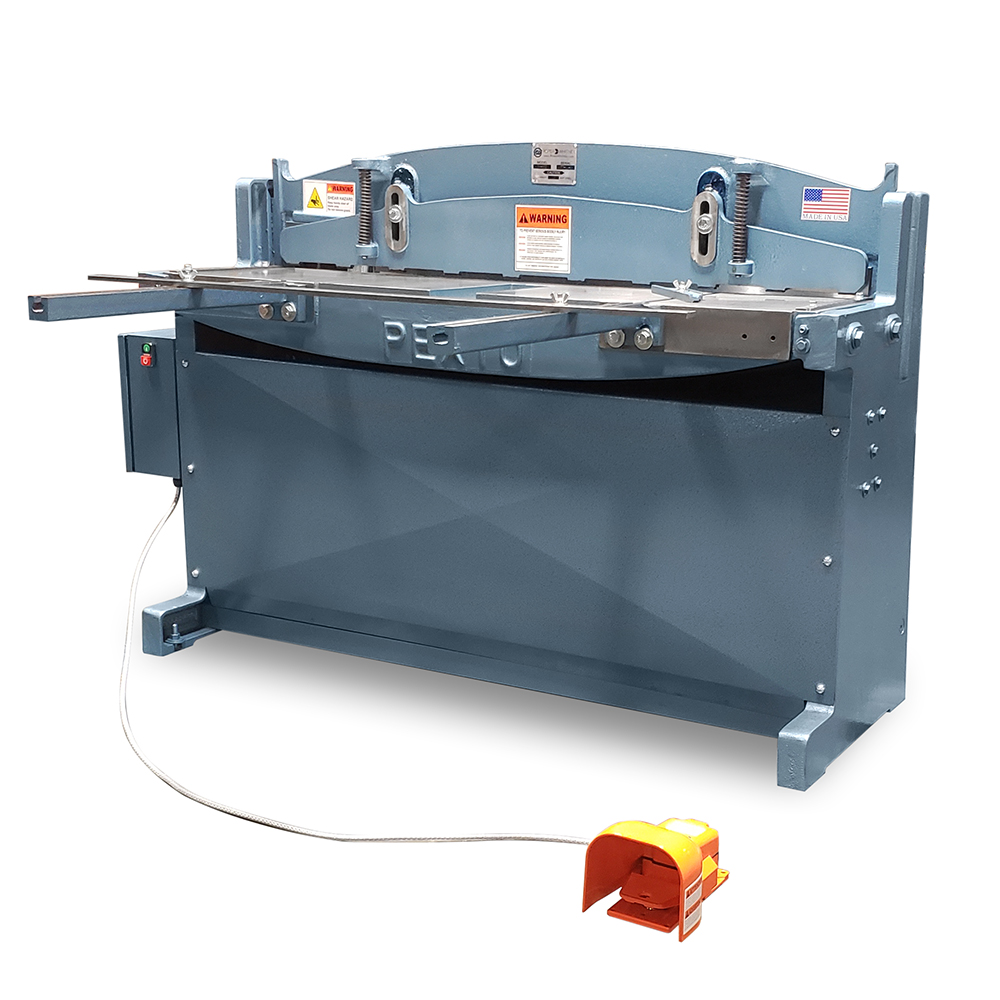

4.3′ x 16ga New Pexto Pneumatic Shear Model PH52 Specifications:
Max. Shearing Capacity (Mild Steel) | 16 gauge 1.6mm |
Max. Shearing Capacity (Stainless Steel) | 20 gauge 1.0mm |
Maximum Cutting Length | 52″ in 1320 mm |
Back Gauge Range | 30 in 762 mm |
Front Gauge Range | 37 in 940 mm |
Motor | 230V/1Ph/60Hz. (additional config. in options including 430V) |
Dimension | 66 x 76 x 42 in. (1676 x 1930 x 1070 mm) |
Shipping Weight | 1350 lbs. 363 kg |
Pexto’s PH-52 & PH-452 features compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing applications. Pexto hydraulic power shears feature fast, smooth, oil-cushioned action. Both moving and fixed blades are shearing blades of Hi-Speed steel. One piece cast shear bed is recessed for easy sheet handling. Standard equipment includes a precision rack and pinion back gauge a solid finger guard. The PH-52 & PH-452 also includes front and side gauges, bevel gauges and two front arms. The bed is machined for optional side extension squaring gauge.
The shears offer triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides “bite” to minimize sheet movement under shearing stress and produces double penetration in the cutting action. The shears will handle a 52″ sheet. Max. Rated Capacity – 16 gauge (mild steel)
4.3′ x 16ga New Pexto Pneumatic Shear Model PH52 Equipped with:
- Fully enclosed control panel, with magnetic starter, selector switch and relays
- Single or continuous stroke operation.
- Heavy duty foot switch. If released anywhere in the stroke, crosshead returns to “up” position.
- Pressure relief valve to prevent overloading.
- Electric solenoid hydraulic valve for instantaneous response.
- Dial stroke control – accessible adjustment with stroke length indicator.
- Hydraulic power uniformly applied through double-acting cylinders.
Optional Accessories:
Hydraulic Shear 230V/3Ph/60Hz | $11,925.00 |
Hydraulic Shear 460V/3Ph/60Hz | $11,925.00 |
Wired for CSA Canadian Electrical Standard | $525.00 |
Upper or Lower Hi-Speed Replacement Blade-Each | $520.00 |
4′ Squaring Arm | $950.00 |
