40″ x 280″ New Kingston CNC Lathe Model CX Heavy Duty for sale
Kingston’s CX series heavy-duty precision lathes are built for cutting heavy and long workpieces for the energy, mining, textile, paper, and transportation industries. Utilizing the same headstocks and spindle bores as Kingston’s tried-and-true engine lathes, the CX is available in a wide variety of configurations so you can customize your machine to your exact needs. Choose from a 4.09”, 7.09”, 10.1”, 12.5”, or 14.7″ bore, 34″ or 40″ swing, and lengths from 80″ — 280″. It is equipped with a V8 hydraulic turret and a 5.45 HP and 9.5 HP AC servo motors that drive the X- and Z-Axis respectively. The headstock has 4 gearshifts controlled by hydraulics for greater torque and the main spindle has a three-point bearing support system — making it ideal for cutting heavy and extremely hard materials.
40″ x 280″ New Kingston CNC Lathe Model CX Heavy Duty Specifications:
| Capacity | |
| Swing Over Bed | 40″ |
| Maximum Cutting Diameter | 27.5″ |
| Distance Between Centers | 280″ |
| Width of Bed | 22″ |
| Headstock | |
| Spindle Bore | CX 4: 4.09″ (3.5″ with Power Chuck) CX 7: 7.09″ CX 10: 10.1″ CX 12: 12.5″ CX 14: 14.7″ |
| Spindle Motor | CX 4: 25/30 HP (30 min) CX 7: 30/40 HP (30 min) CX 10: 40/50 HP (30 min) CX 12: 40/50 HP (30 min) CX 14: 40/50 HP (30 min) |
| Type of Spindle Nose | CX 4: A1-11 with Manual Chuck or A2-11 with Power Chuck CX 7: A2-15 CX 10: A2-15 CX 12: A2-20 CX 14: A2-20 |
| Height Floor to Spindle Center | 51.5″ |
| Gear Box | |
| Number of Speed Ranges | 4 |
| Spindle Speed (RPM) | CX 4: 8 – 800 or optional 12-1200 CX 7: 7-750 CX 10: 6-600 CX 12: 10-400 CX 14: 10-300 |
| Turret | |

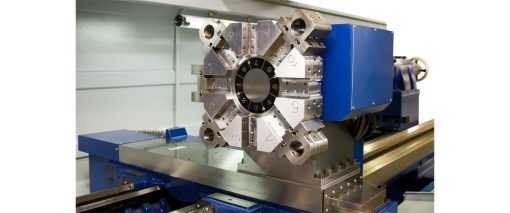

| Standard Turret | V8 Hydraulic |
| Turret Options | H4, Toolblock with T-slot |
| Traverse | |
| Max. Stroke | X-Axis: 20.1″ Z-Axis: 283.4″ |
| Rapid Traverse | X-Axis: 157 in/min Z-Axis: 236 in/min |
| Motor | |
| Servo Motor | X-Axis: 5.3 HP Z-Axis: 9.4 HP |
| Ball Screw | |
| Ball Screw | X-Axis: ø1.26”, P=5 Z-Axis: ø2.5”, P=10 (<200”) / 3.15″, P=10 (200″ or longer) |
| Tailstock | |
| Tailstock Quill Center | M.T. # 6 |
| Tailstock Quill Diameter | Ø5.9” |
| Tailstock Quill Travel | 8.6” |
| Dimensions | |
| Floor Space (LxW) | CX 4: 470″ x 99″ CX 7: 470″ x 99″ CX 10: 470″ x 99″ CX 12: 470″ x 99″ CX 14: 470″ x 99″ |
| Weight | |
| Net Weight (lbs) | CX 4: 26,400 CX 7: 29,480 CX 10: 29,920 CX 12: 31,900 CX 14: 31,900 |
| Total Power Required | CX 4: 50 KVA CX 7: 50 KVA CX 10: 60 KVA CX 12: 60 KVA CX 14: 60 KVA |
40″ x 280″ New Kingston CNC Lathe Model CX Heavy Duty Standard Features:
- Bore: 4.09”, 7.09”, 10.1”, 12.5”, or 14.7”
- Swing: 34″ or 40″
- C.C.: 80″ — 280″
- CX 4: 25 HP / 30 HP (30 min)
- CX 7: 30 HP / 40 HP (30 min)
- CX 10, CX 12, & CX 14: 40 HP / 50 HP (30 min)
- 22” Bed Width
- V8 Hydraulic Turret
- Box Way Cross Slide on Carriage
- Manual Hand Wheels
- 11.9″ Steady Rest
- Headstock Cooling System
- Hydraulic & Manual Quill Movement
- Rear Chip Conveyor with Cart
- Fanuc 0iTF Controller with Manual Guide i, 10.4” LCD Monitor
40″ x 280″ New Kingston CNC Lathe Model CX Heavy Duty Optional Accessories:
- C-Axis with V12 Live Tooling Turret and 1-Degree Spindle Indexing
- 23.5” Steady Rest (40″ Swing Only)
- 19.7″ Steady Rest
- Additional 11.9″ Steady Rest
- 7.9” Follow Rest
- Roller Bracket (2-Point Roller Rest)
- H4 Hydraulic Turret (Front or Rear)
- Tool Block w/ T-Slot
- 4″ Boring Bar Support w/ 3″ Sleeve
- Higher RPM Modification: 12 – 1200 RPM (CX4 Only)
- Siemens 828D with Shop Turn
- Fanuc Arbitrary Speed Threading
- Manual, Air & Hydraulic Chucks
