Description
4,000 watt 5′ x 10′ BesCutter Fly Speed fiber laser metal sheet cutter full enclosure with parallel shuttle table introduction.
- IPG laser resonator
- Auto energy saving mode
- Parallel Shuttle Exchange Table
- Easy Operation – The front door is on the Y axis, easy for operator to reach whole working area

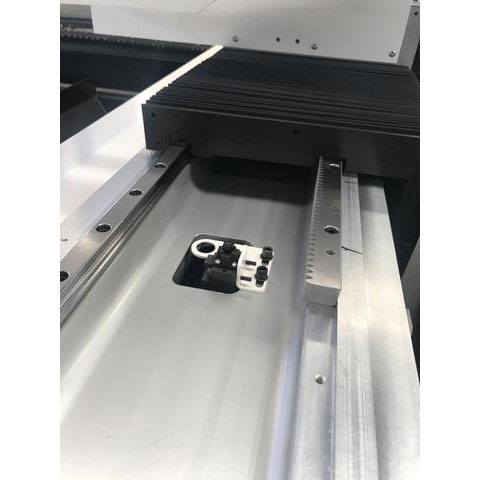

- Swiss Imported Reducer and Rail System: Dual drive structure, high precision Swiss GUDEL reducer and Germany Rexroth guide rail system, small transmission error, high precision and good dynamic performance.
4,000 watt 5′ x 10′ BesCutter Fly Speed fiber laser metal sheet cutter full enclosure with parallel shuttle table Specifications:
Standard working area | 61″ x 120″ (3050 x 1550 mm) |
Optional working area | 157″ x 78.7″/ 236″ x 98.4″ |
Optional Laser Wattage | 1500W/ 2000W/ 3000W/ 4000W |
X, Y, Z axis distance | 61″ (3050 mm)/120″ (1550 mm)/3.93″ (100 mm) |
X, Y Two-axis coordinated positioning speed (MAX) | 140 m/min |
Positioning acceleration (MAX) | 1.4 G |
Positioning accuracy | ±0.05 mm/m |
Re-positioning accuracy | ±0.02 mm |
Maximum load weight | 1543 lbs |
Laser resonator | IPG |
Laser head | Raytools (Precitec optional) |
Controlling System | CypCut (Beckhoff optional) |
X-Y-Z Servo Motors | X-2x2900W; Y- 1x850W ; Z-1x750W |
Machine Weight | 20945 lbs (9500 kg) |
Dimensions | 350″x 118″ x 83″ (8900 x 3000 x 2100 mm) |
