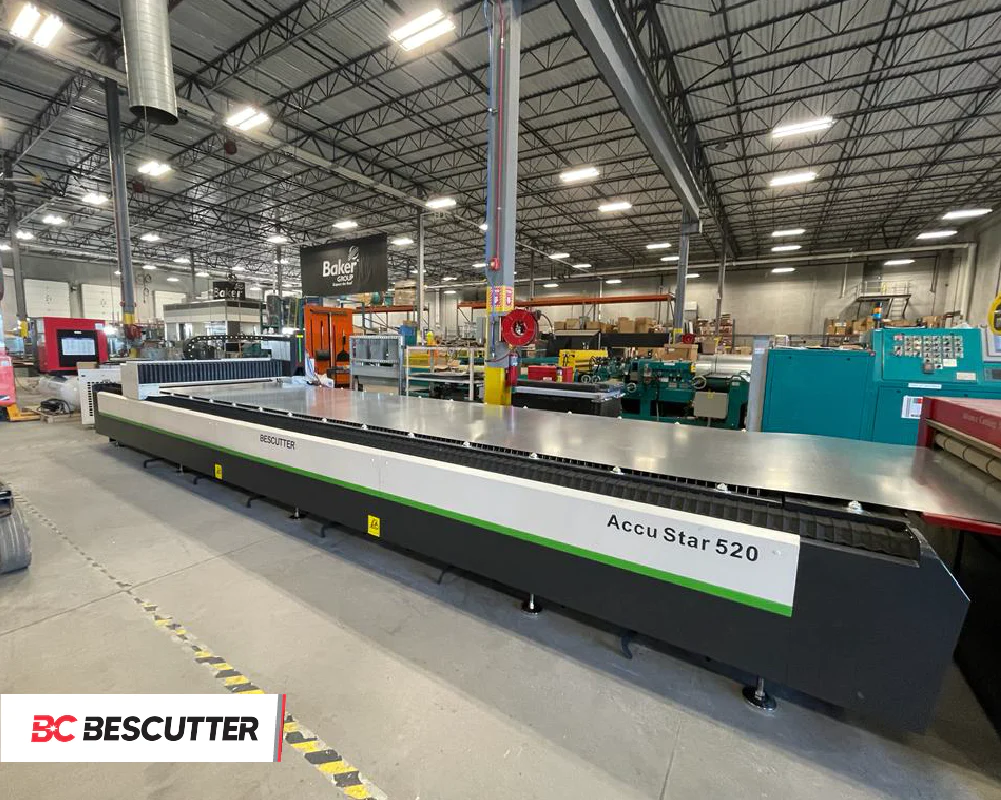

5′ x 20′ BesCutter Accu Star Fiber Laser Metal Sheet Cutting Machine (1500W-3000W) Overview:

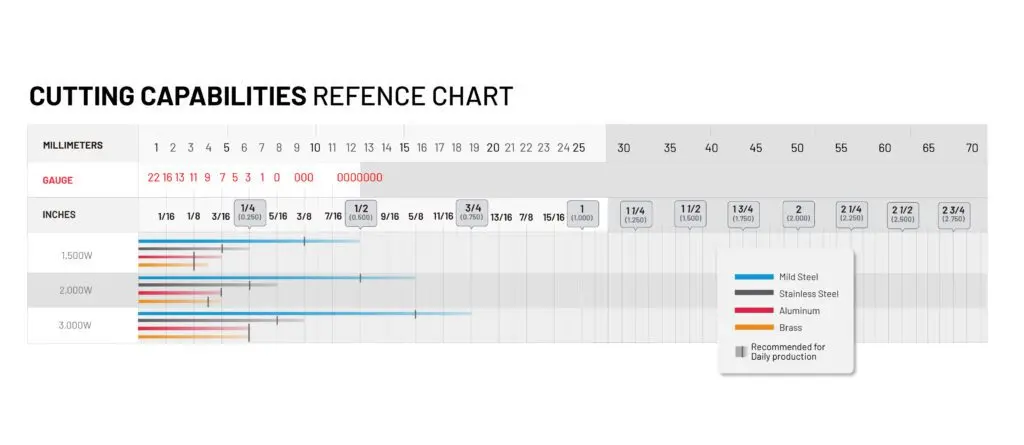

The BesCutter Accu Star is our open laser table series, a high-performance cutting solution designed for precision and efficiency. With laser power options ranging from 1500W to 3000W, this machine can cut through a wide range of materials, including mild steel, stainless steel, aluminum, and brass, making it an ideal choice for industrial applications.
The machine features a user-friendly interface with lifetime software, ensuring long-term ease of operation and seamless integration into production workflows. Its open design provides easy access to the cutting area, enhancing both flexibility and workflow efficiency. Additionally, Bescutter’s US-based support ensures quick troubleshooting and assistance whenever needed.
Power that fits your needs:
- Choose from 1500W to 3000W laser power depending on your necessities. Contact a team member for a free consultation.
- Rely on the BesCutter’s Accu Star legacy—one of our top-selling models.
Additional Features:
- User-friendly control system for intuitive operation.
- Auto-focus laser head ensures consistent cut quality across the entire work area.
- High-quality rack and pinion guide rails for precise movement.
- Efficient cooling system maintains optimal performance.
5′ x 20′ BesCutter Accu Star Fiber Laser Metal Sheet Cutting Machine (1500W-3000W) Standard Features:

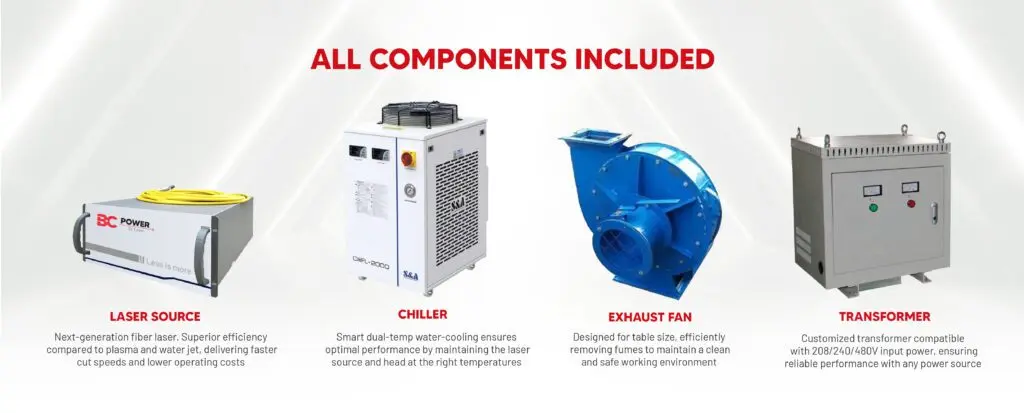

- This model equips with IPG fiber laser source, IPG laser source enjoy the following advantages:
- It has a super compact design with the laser housed in a hermetically sealed cabinet.
- Industry-leading wall-plug efficiency our lasers are known for has reached over 40%.
- The electrical cost savings add up to many tens of thousands of dollars over lifetime of a laser.
- Record reliability and maintenance-free operation.
- Hot redundancy ensures 100% up time with no change in power. Compact Rugged Design
- SCHNEIDER servo. The Schneider servo motor enjoy fast dynamic response speed and performances stably. It has high inertia and large torque output.
- SMC Solenoid Valve with fast on off response speed.
- LEITESEN Rack & Pinion System
- IGUS High flexible cable, suits for long term working in chains.
- Auto focus cutting head: Z axis motor control focus system, piercing time 80% less, suitable for thick metal. Cutting patterns library will be available for operator.
Software
- Support AI/PLT/Gerber formats, accept Master Cam, Type3 output international standard G code.
- Lead in/out, cutting compensation, micro joint, bridging, back entry, gap cutting etc.
- Multiple piercing methods available, separated laser power / frequency / gas type / gas pressure / height track can be set during cutting and piercing.
5′ x 20′ BesCutter Accu Star Fiber Laser Metal Sheet Cutting Machine (1500W-3000W) Specifications:
- Laser Power: 1,500 W – 2,000W
- Working Area: 60″ x 240″ (1500 mm x 6096 mm)
- Laser Resonator: IPG 1000 W/ IPG 1500 W / IPG 2000 W
- X-Axis Stroke: 60″ (1525 mm)
- Y-Axis Stroke: 120″ (3050 mm)
- Z-Axis Stroke: 4.7″ (120 mm)
- Laser Generator: MAX or Han’s photonics
- Laser Head: RAYTOOLS BM111
- Proportional Valve: SMC / Airtac (Japan)
- Continuous Wave fiber laser, 1.07 um wavelength
- Beam Quality: <0.373 mrad
- Laser Head: RayTools (Auto Focus)
- Control System: FSCUT2000S
- Cooling System: TeYu CWFL1000, CWFL-1500, CWFL-2000 or Comparable
- Lubrication system: Optimized Autolubrication System
- Driving System: Servo Motors
XYZ Servo Motors: Schneider or Delta Y 2x1500W, X 1x1000W, Z 1x400W - High-Quality Rack and Pinion Guide Rails
- Rack & Pinion: High strength cast steel
- Chassis: High strength cast steel
- Bridge: Aluminum
- Max Acceleration Speed: 0.6G
- Max Speed: 2362 in/min (60 m/min)
- Extraction System: 1.5KW
- Water Chiller: S&A
- Guide Rail: Smajic (Japan)
- Positioning Accuracy: 0.001181″ (±0.03 mm)
- Repeat Positioning Accuracy: 0.000787″ (±0.02 mm)
- Electrical Components: Schneider (France) Omron (Japan)
- Supported Graphics: CAD, DXF
- Power Consumption: 18 KW
- Power Supply Voltage: 3 Phase 208V / 240V / 480V (Transformer Included)
- Overall dimensions: 311″ x 89″ x 75″ (7900 mm x 2260 mm x 1900 mm)
- Weight: 6114 lb (3000 kg)
- Working environment: Temp: 0–45°C, Humidity ≤80%
Nesting Software (optional)
- Adopts CutLeader laser cutting auto-nesting software, with Chinese-English version, easy operation. Software has the following functions:
- Text & image processing
- Share-edge cutting
- Auto-nesting
- Shape corner cutting without melting issue Multiple cutting applications
- Automatic report generation
Dust Collection System (optional) The Machine body adopts zoning control design, equipped with high power filtration system, to sure no metallic dust in the filtered gas, it could meet indoor emission standard.
