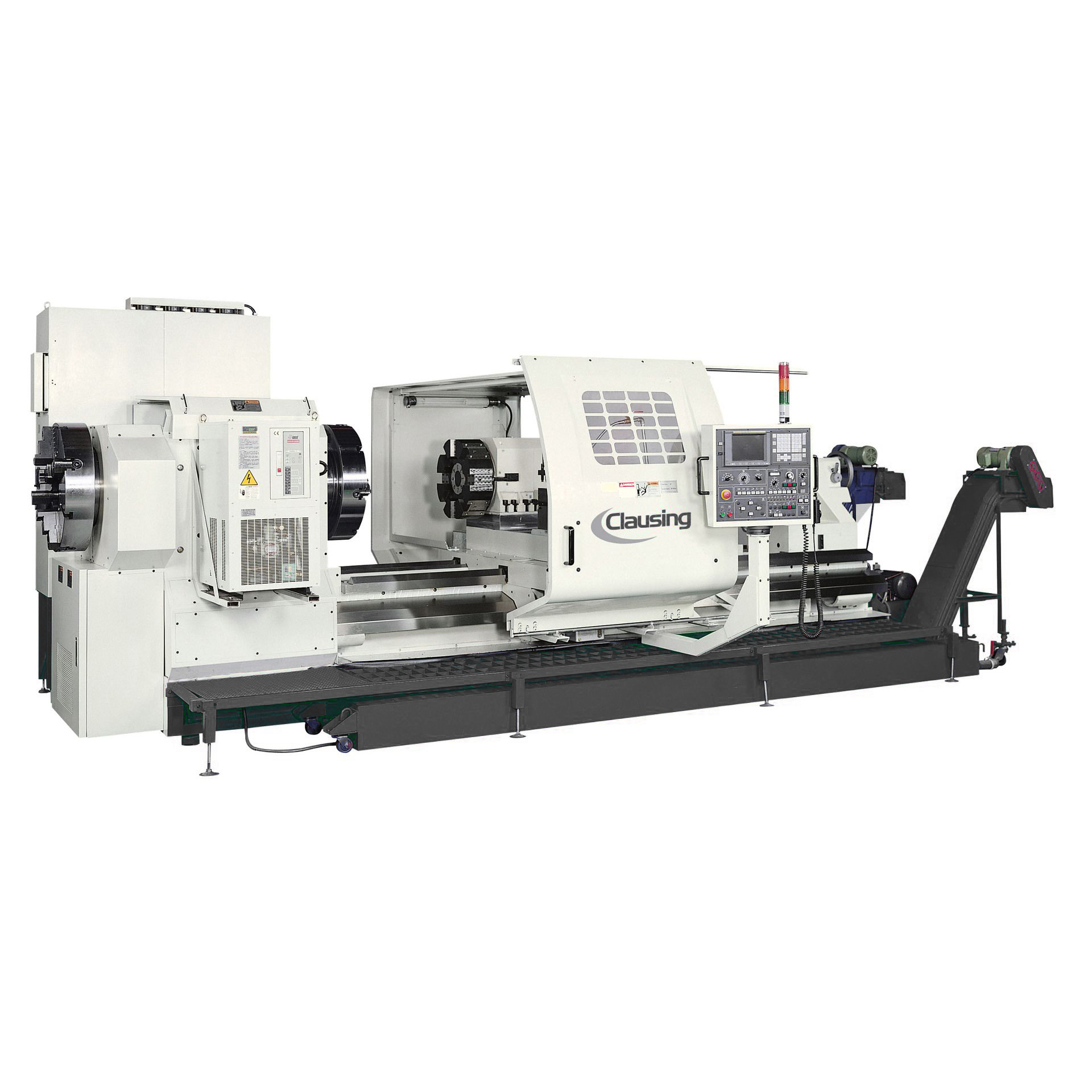

50″ x 122″ Clausing CNC Lathe Model CL50122-9 9.25″ Bore

Description

50″ x 122″ Clausing CNC Lathe Model CL50122-9 9.25″ Bore

50″ x 122″ Clausing CNC Lathe Model CL50122-9 9.25″ Bore Specifications:

50″ x 122″ Clausing CNC Lathe Model CL50122-9 9.25″ Bore Standard Features:

• Four range automatic vari-speed drive allows optimum cutting speed for a wide range of machining applications. 10-700 rpm
• All gears hardened and ground for long-life and dependability.
• Variable AC spindle drive – 50Hp (30 Min Rated) and 40Hp (Continuous) for exceptional machining power.
• Digital AC servo drive system provides powerful and accurate axes positioning.
• 25”(235mm) spindle bore, optional sizes available upon request.
• One-piece cast iron bed from the ways to floor ensures maximum stability and rigidity under heavy machining operations.
• Bed width: 22” with two bed ways, hardened and ground, support the saddle and carriage assembly allowing superior positioning and repeatability accuracy.
• Turcite B fitted to all adjoining carriage surfaces to minimize stick-slip and improve surface finish and machine life.
• Absolute Z-axis servo motor eliminates need to reference to home position.
• Z-axis 3.15” ball screw for accurate position along entire length of bed.
• Hydraulic tailstock with 9.25” rotating quill and hydraulic body positioning for ease of setup and operation.
• Four way EVS250 block type turret standard for 1-1/4” tooling
• Optional Twelve station turret VDI disk provides flexibility with quick changeover and set-up. A wide range of turning and boring bar holders are available to meet the requirements of most any job.
• Optional live tooling and C-axis positioning of 0.001° is fully programmable.
• Automatic lubrication system to all guideways and ballscrews.
• Optional CE Electrics for European safety market
• Electrical cabinet refrigerated cooling protects electrical components even under the harshest conditions.
• Spindle oil refrigerated cooling allows smooth accurate machining during heavy cutting cycles.
• Full guarding with interlock, two or three door system depending on machine length, for operator safety.
• Guarding powder coated for durability.
• Front and rear belt type chip conveyors for efficient chip removal and cleanup.

Standard Equipment

•  Electrical cabinet refrigerator
• Spindle oil cooling refrigerator
• 4-Step Auto Change Vari-Drive
• Front & Rear Belt Chip Conveyor
• 4-Way Turret tool post
• Coolant system
• Automatic lubrication
• Interlocked guarding
• Halogen work light
• Leveling screws and pads
• Machine operating manual
• Accuracy chart
• Toolkit
• 230/3/60 Volt Standard

Fanuc Oi-TF Control

• Latest generation Fanuc Oi-TF control offers greater processing speed for multi axes machining.
• “Manual Guide Oi” programming system allows the operator to generate part programs quickly and efficiently through the use of easy-to-understand conversational style cycle prompts. A comprehensive list of cycle and profile commands is provided.  The part program can be verified with the Manual Guide Graphics function prior to cutting the component.
• Direct Drawing Dimension Programming simplifies programming of even complex components by using simple radius, line and angle definitions. The Fanuc control calculates intersecting and tangent points and automatically inserts radius and chamfers.
• Multi repetitive Cycles G70-G76 for automatic finishing, roughing, drilling, threading and grooving cycles.
• Toolpath graphics for verification of part profile before and during machining cycle.
• 4″ Color LCD Display
• Absolute/incremental programming in the same block
• Inch/metric data input
• Programmable increments: 0.0001″ min., 999.9999″ max.
• Thread cutting leads: 0.00001″ min., 4.0″ max.
• Rigid tapping
• G10 offset value setting
• Multiple part program storage (63 programs)
• 64K part program memory
• Sequence number search
• Background editing
• Constant surface speed/direct rpm programming
• Optional Stop/Block Delete
• Tool Nose Radius Compensation
• 32 Sets Of Tool Offsets
• Menu programming format with operator prompts
• Automatic reference zero return
• Work co-ordinate system shift
• Absolute encoder
• RS-232 interface port
• PMCIA Slot for Memory Card
• Ethernet Port
• Manual pulse generator
• Spindle orientation

50″ x 122″ Clausing CNC Lathe Model CL50122-9 9.25″ Bore Optional Accessories:

• CL50-CE              CE Electrics and Contactors w/Door Interlock … $8,540.00 Non-Certified
• CL50-EMC           Electronic Filter … $2,560.00
• CL50-TRAN         460/3/60 Volt Transformer … $7,175.00

Chucks and Face Plates

• CL4-34A15           34” 4-Jaw Independent Steel Body Chuck 9” Bore … $11,955.00
• CL4-38A15           38” 4-Jaw Independent Steel Body Chuck 9” Bore … $14,580.00
• CL4-40A15           40” 4-Jaw Independent Steel Body Chuck 9” Bore … $16,315.00

 Steady Rests

• CL10-50          3 Point Steady Rest w/Rollers 1.96” – 15.77” Capacity … $7,375.00
• CL10-50A       3 Point Steady Rest w/Rollers 13.8” – 27.55” Capacity … $7,960.00
• CL10-50B       3 Point Steady Rest w/Rollers 23.6” – 39.37” Capacity … $18,480.00
