Description

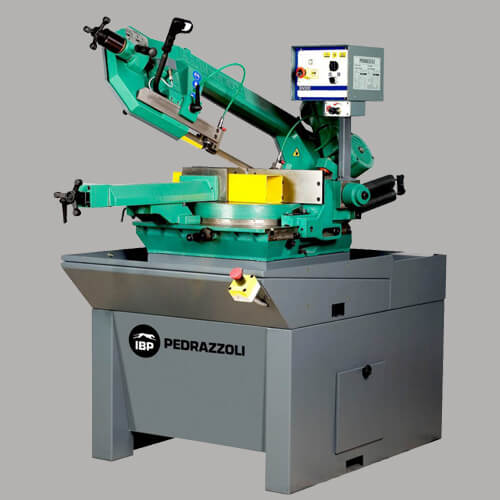

6″ New Pedrazzoli Manual Bandsaw SN 300 Newton Features:
Introducing the SN 300 Newton Manual Bandsaw, setting new standards with its gravity-controlled down feed, a hallmark of innovation from Pedrazzoli. In the world of bandsaws, it’s clear that not all are equal — discover how Pedrazzoli’s prowess in design and dependability places them at the forefront of the industry. Elevate your expectations with a focus on stable platforms that unlock heightened productivity, extended blade life, and impeccable cut quality and squareness.
Central to this exceptional sawing experience is Pedrazzoli’s unwavering commitment to stability, embodied in the robust heavy-duty cast-iron bases. These bases orchestrate seamless cutting cycles by minimizing vibrations, setting the stage for precision at every turn.
The miter base’s substantial diameter ensures effortless gliding over a tempered bearing track, enabling the seamless rotation of the saw head with unprecedented ease. Impressively, the vise shoulders retract and flex to adapt to varying materials, providing consistent support and profile alignment during the cutting process.
Embodying a perfect equilibrium between gravity-controlled feed and Pedrazzoli’s dynamic feed mode, the SN 300 Newton boasts a meticulously balanced operation. A vertically mounted saw motor further optimizes the entire transmission system, resulting in a compact footprint, while a full oil bath lubricates the worm gear drive to ensure component longevity and minimize maintenance.
In a culmination of design excellence, the SN 300 Newton represents Pedrazzoli’s commitment to quality. Crafted through years of experience, this saw promises not just precision, but a cutting-edge reliability that outshines the competition. Welcome to a new era of sawing sophistication.

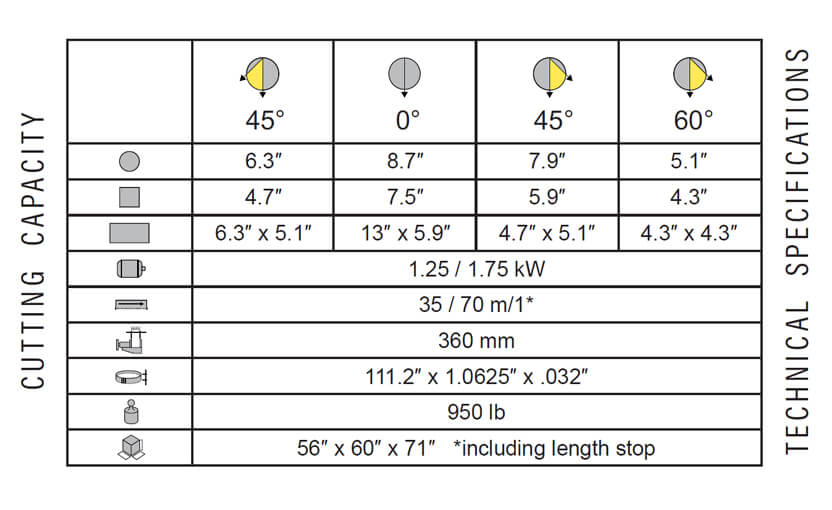

6″ New Pedrazzoli Manual Bandsaw SN 300 Newton Specifications:
| Maximum Capacities (with a 350mm Blade) | |
| Round 45º Right | 6.3″ |
| Round 0º | 8.7″ |
| Round 45º Left | 7.9″ |
| Round 60º Left | 5.1″ |
| Square 45º Right | 4.7″ |
| Square 0º | 7.5″ |
| Square 45º Left | 5.9″ |
| Square 60º Left | 4.3″ |
| Rectangle 45º Right | 6.3″ x 5.1″ |
| Rectangle 0º | 13″ x 5.9″ |
| Rectangle 45º Left | 4.7″ x 5.1″ |
| Rectangle 60º Left | 4.3″ x 4.3″ |
| Motor Power | 1.25kW / 1.75kW |
| Variable Blade Speed | 35 / 70 m/1* |
| Maximum Blade Diameter | 360mm |
| Machine Weight | 950 pounds |
| Bandsaw Blade Dimensions (L x W x T) | 111.2″ x 1.0625″ x .032″ |
| Overall Dimension (W x D x H) | 56″ x 60″ x 71″ *including length stop |
| Work Height | 37.5″ |
| Voltage |
240V 3ph *480V 3ph must specify voltage when ordering |
6″ New Pedrazzoli Manual Bandsaw SN 300 Newton Standard Equipment:
- Saw positions 60 degrees left and 45 degrees right to fixed stops
- Large circular saw base rotates over ball track for easy miter movement
- Saw bow movement supported with conical bearings
- Two blade speed selections for greater material versatility
- Control panel with simple operator control functions
- Blade drive safety switch located in hand grip
- Safety micro-switch prevents blade operation when guard is open
- Blade tensioning handwheel with spring for uniform tensioning
- Blade guide arms adjustable to dimension of workpiece
- Blade guides feature two hardened guides on eccentric bushings
- Vise shoulders adjust and retract
- Coolant reservoir with removable electric pump for easy cleaning
- Heavy cast iron saw base for greater rigidity when sawing
- Machine on off switch with lockout switch
- Length stop with micrometer adjustment
- Machine base designed to accommodate fork lift
